A Front rack brace
B Retaining screws (quantity 2 for each brace)
C Rear rack brace
4. Install the screws (B) you removed from the rack braces at the right and left side of the top cover.
Install the screws for both the front and rear of the rack.
5. Install rack filler panels to cover open areas at the front of the rack. Seal all gaps in the front of the
rack, including the gaps between pieces of equipment. This step ensures that proper airflow within
the rack is maintained.
Power distribution unit
The power distribution unit (PDU) or power distribution unit plus (PDU+) can be installed in the
7014-T00 and 7014-T42 racks. It allows you to monitor the individual power loads of the devices that are
plugged into it.
Installing the PDU or PDU+ in the side of a rack:
Learn how to install the power distribution unit (PDU) or power distribution unit plus (PDU+) vertically
in the side of a rack.
Tip: Removing the rack doors and side panels might make installation easier.
To install the PDU model in a single EIA vertical mounting space in the side of the rack, complete the
following steps:
1. Read the “Rack safety notices” on page 26.
2. Choose one of the following options to install your PDU model:
v To install the PDU, go to step 5 on page 40.
v To install the PDU+, continue with step 3 on page 40.

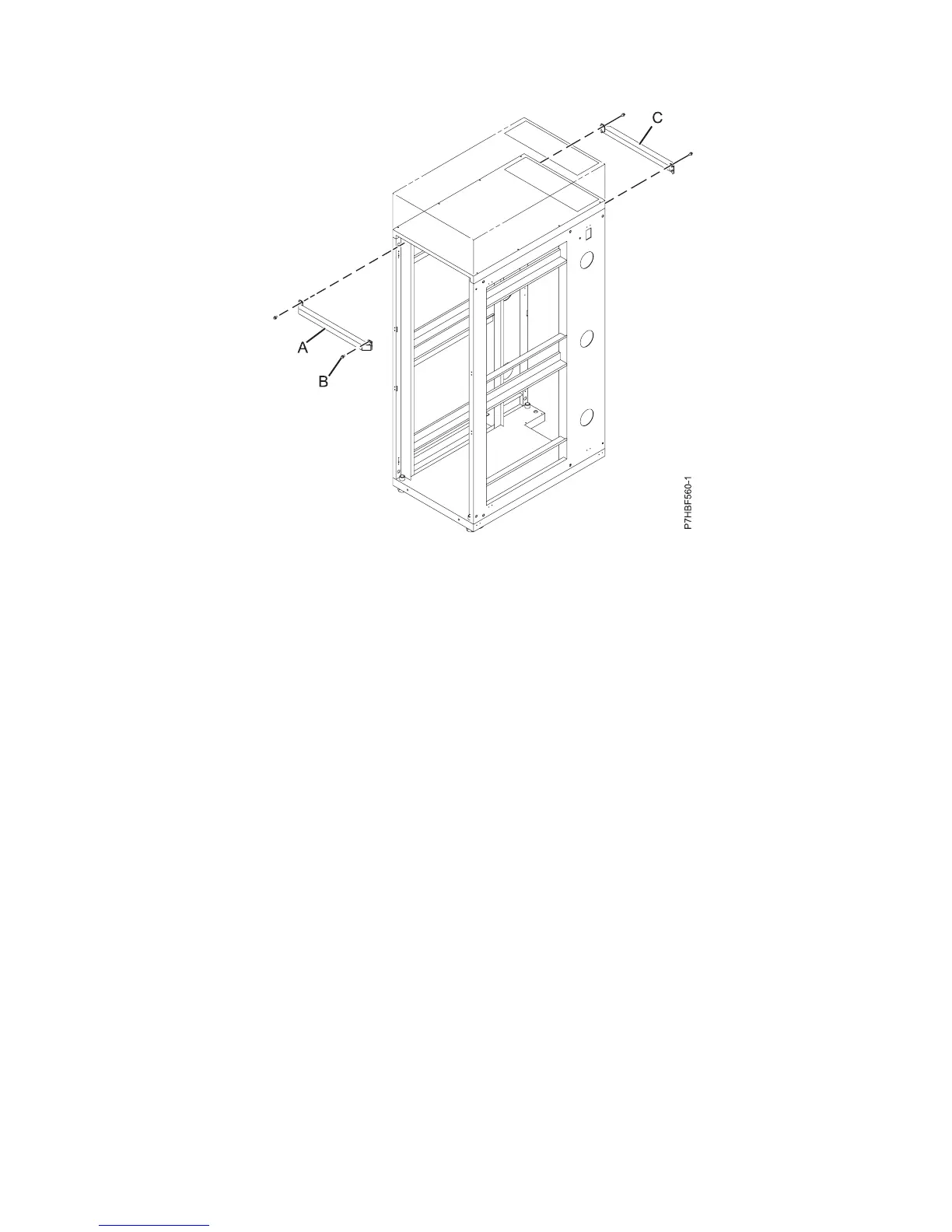

Figure 37. Removing the top cover
Racks and rack features 39
