3. Press the tabs (B) to snap the cover into position.
Replacing the power supplies
Learn how to replace the power supplies.
To replace the power supplies, complete the following steps:
1. Ensure that you have the electrostatic discharge (ESD) wrist strap attached. If not, attach it now.
2. Move to the rear of the rack.
3. Align the power supply (A) with the bay and slide the power supply into the system until the
terracotta latch (B) locks in place, as shown in Figure 16 on page 16.

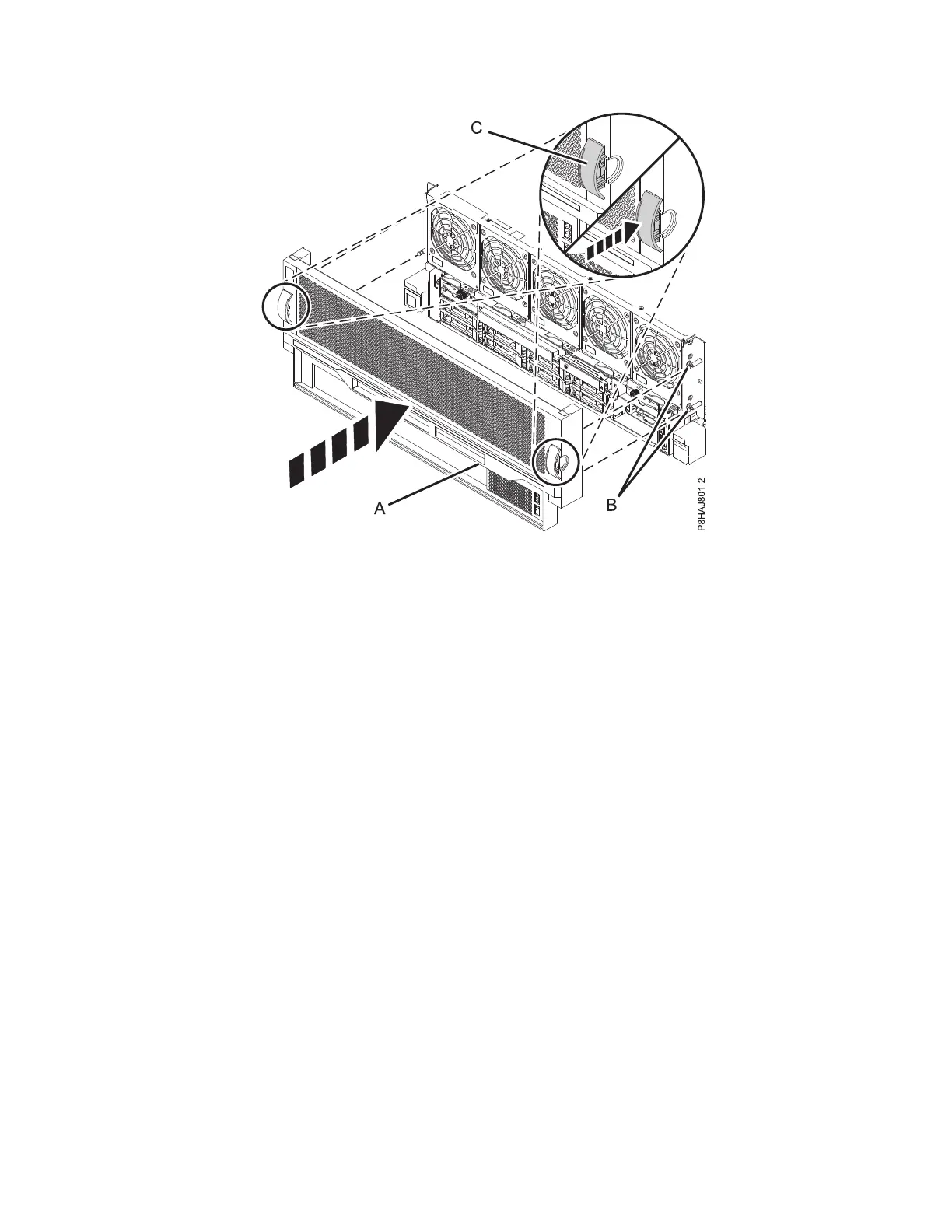

Figure 15. Installing the front cover
Installing the IBM Power System E850C (8408-44E) 15
