xSeries 230 / Netfinity 5100 Internal SCSI Cabling
The xSeries 230 and Netfinity 5100 contain a DASD backplane supporting six hot-swap, SCA-2 compliant drive bays. The backplane is connected to channel A of the integrated
dual-channel, Ultra160 SCSI controller connector through a 16-bit LVD SCSI cable. If internal RAID support is required, this cable can be used to connect to a supported RAID
adapter rather than the integrated SCSI controller. No external SCSI port is included.
A two-drop, 16-bit LVD SCSI cable with integrated terminator is also included with the Netfinity Hot-Swap Power Supply Expansion Kit P/N 37L6881.This cable is included in the
expansion kit because installation of SCSI devices in bays A and B requires additional power. The two-drop cable supports up to two internal devices in these bays. This cable can be
attached to channel B of the integrated dual-channel Ultra160 SCSI controller or to a supported SCSI adapter.
1. Two half-high (HH) bays can be combined to support a single full-high (FH)
device. Installation of devices in Bays A or B may require Netfinity Hot-Swap
Power Supply Expansion Kit (P/N 37L6881) and at least one Netfinity 250 W Hot-
Swap Redundant Power Supply (P/N 33L37xx). Installation of HDDs in Bays A
and B also requires Media Bay Tray and LVD Cable Kit (P/N 10K2340).
2. Two slim-line (SL) bays (C/D, E/F, G/H) can be combined to support a single
half-high (HH) device.
37L7205
18.2 GB 10K-4 Ultra160 SCSI Hot-
Swap HDD
10,000 SL C...H 6
37L7206
36.4 GB 10K-4 Ultra160 SCSI Hot-
Swap HDD
10,000 SL C...H 6
19K0655
9.1 GB 15K-rpm Ultra160 SCSI Hot-
Swap HDD
15,000 SL C...H 6
19K0656
18.2 GB 15K-rpm Ultra160 SCSI
Hot-Swap HDD
15,000 SL C...H 6
Non-Hot-Swap Ultra2 SCSI HDDs
1
20L0553 9.1 GB Wide Ultra2 SCSI HDD
2
7200 SL A, B
3
2
20L0554 18.2 GB Wide Ultra2 SCSI HDD
2
7200 SL A, B
3
2
Associated Options
10K2340 Media Bay Tray and LVD Cable Kit
3
- - A+B 1
33L37xx
11
250 W Hot-Swap Redundant Power
Supply
-- - -
37L6881
Hot-Swap Power Supply Upgrade
Kit
4
- - - -
External Storage Expansion Units
5
Form
Factor
19K11xx
12
EXP300 Storage Expansion Unit
6, 10
Rack (3U)
09N7296
EXP300 Rack-to-Tower Conversion
Kit
-
19K11xx
13
FAStT 200 Storage Server
7, 8, 10
Rack (3U)
19K11xx
14
FAStT 200 HA Storage Server
7, 10
Rack (3U)
19K1121
FAStT 200 Redundant RAID
Controller
8
-
00N71xx
15
FAStT EXP500 Storage Expansion
Unit
9, 10
Rack (3U)
94G7448 Rack Power Cable Type C12 (3.7m)
10
-
1. Installation of non hot-swap HDDs requires both the tray and the cable in the Media Bay Kit P/N 10K2340
2. Additional power may be required when installing a SCSI device in bay A or B. Configurations exceeding four SL hot-
swap hard disk drives and two PCI adapters require both Hot-Swap Power Supply Upgrade Kit P/N 37L6881 and at least
one optional 250 W Hot-Swap Redundant Power Supply P/N 33L37xx. Example: 3 SL HS HDD’s plus 5 adapters - no
additional power supply required. An optional SCSI cable is required. A two-drop terminated LVD SCSI cable is included
with both Media Bay Tray and LVD Cable Kit P/N 10K2340 and Hot-Swap Power Supply Upgrade Kit P/N 37L6881.
3. Media Bay Tray and LVD Cable Kit P/N 10K2340 is required. It contains a two-drop terminated LVD SCSI cable and the
hardware required to convert two half-high 5.25” removable media bays into two non-hot-swap 7200 RPM HDD bays.
4. Hot-Swap Power Supply Upgrade Kit P/N 37L6881 contains a hot-swap power backplane that supports installation for
up to three hot-swap power supplies.
5. Select an optional SCSI controller then refer to Appendix D: Cables-Storage Units-Controllers to confirm the controller
supports the desired External Storage Expansion Unit and to select a supported cable. For HDD or other expansion unit
options, see the specific expansion unit section.
6. The EXP300 includes a single 2 M Ultra2 SCSI cable and dual hot-swap 500W redundant power supplies, each with it’s
own standard country power cord.
7.The FAStT200 Storage Server and HA Storage Server each include two hot-swap, 350 W auto-ranging redundant power
supplies each with it’s own standard country power cord.
8. Can be upgraded to a FAStT200 HA Storage Server through the addition of a FAStT200 Redundant RAID Controller
P/N 19K1121.
9. The FAStT EXP500 Storage Expansion Unit (P/N 00N71xx) includes dual hot-swap 350W power supplies each with it’s
own standard country power cord.
10. These units do not include Rack Power Cables P/N 94G7448 when shipped (for attachment to high voltage UPS or
PDU). Standard country power cords only are included. If required, order Rack Power Cables (one for each power supply).
11. Where ‘xx’ refers to a country specific code: 60=Saudi Arabia, 61=Europe, 62=Denmark, 63=Israel, 64=Italy,
65=South Africa, 66=Switzerland, 67=United Kingdom&Arabia.
12.Where ‘xx’ represents a specific country code as follows: 51=US/English, 52=European/English, 56=Danish/English,
57=Israel/English, 58=Italian/English, 59=South Africa/English, 60=Swiss/English, 63=UK/English:- Line Cords/
Publication Country Kits are included as indicated.
13. Where ‘xx’ represents a country specific code as follows:- 23=US/English, 24=Euro/English, 25=Euro/Spanish,
27=Euro/German, 28=Denmark/English, 29=Israel/English, 30=Italy/English, 31=South Africa/English, 32=Switzerland/
English, 34=Switzerland/German, 36=UK/English. Country/Language - Line Cords/Publications are included as indicated
14. Where ‘xx’ represents a country specific code as follows:- 37=US/English, 38=Euro/English, 39=Euro/Spanish,
41=Euro/German, 42=Denmark/English, 43=Israel/English, 44=Italy/English, 45=South Africa/English, 46=Switzerland/
English, 48=Switzerland/German, 50=UK/English. Country/Language - Line Cords/Publications are included as indicated.
15. Where ‘xx’ represents a country specific code as follows:- 36=US/English, 37=Euro/English, 41=Denmark/English,
42=Israel/English, 43=Italy/English, 44=South Africa/English, 45=Switzerland/English, 49=UK/English. Country/
Language Line Cords/Publications are included as indicated.
B
CD-ROM
Hot-Swap
(HS)
A
Removable Media (RM)
E
C
F
G
D
A
B
CD-ROM
Diskette
Removable Media (RM)

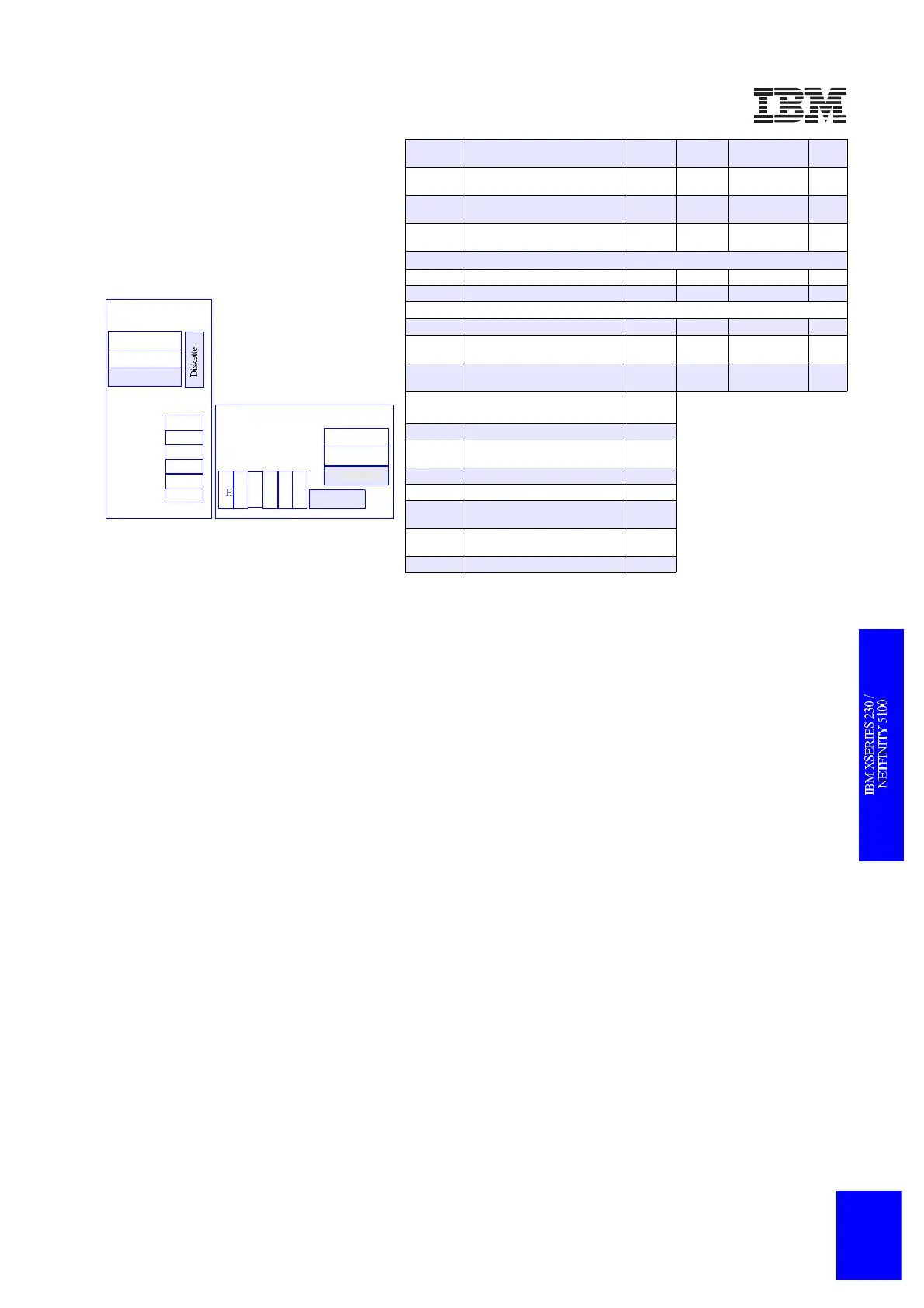

Tower Model View
Rack Model View
For clarity purposes, bay labels in these
diagrams are for reference by the
accompanying tables and are not the
actual labels. Refer to the documentation
shipped with the system for further details
on actual labels.
C
D
E
F
G
H
Hot-Swap (HS)
