g. Continue with step 9 (See page 190) to set the configuration ID.
8. Perform steps 23 (See page 569) and 24 (See page 570) in the Expansion unit power procedure.
Then, return here and continue with the next step.

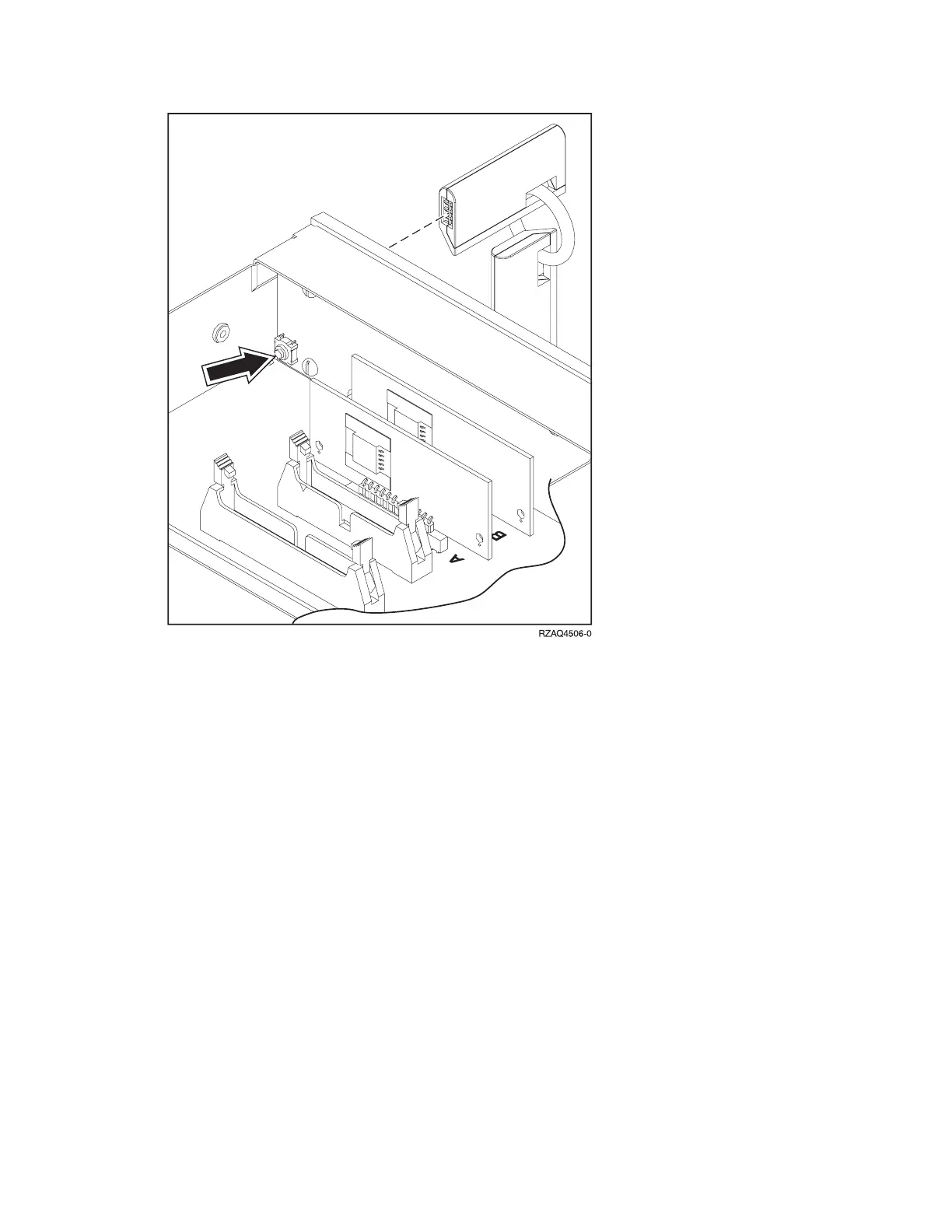

9. Set the configuration ID in the tower card:
a. If the ac power is not applied, then apply it now.
Note: The tower may power up automatically.
b. Power down the expansion tower without removing the power cord using the Expansion unit
power procedure. Then, return here and continue with the next step.
c. Select function 07 on the system panel. Press Enter. (07** will be displayed)
d. Use the arrow keys to increment/decrement to sub-function A9 (07A9 will be displayed). Press
Enter (07A9 00 will be displayed).
e. Use the arrow keys to increment/decrement to the frame address, nn (nn is usually 02, 03, and so
forth for expansion towers) (07nn will be displayed). Press Enter (07nn 00 will be displayed).
Note: The display on the addressed frame should now be blinking on and off.
f. Use the arrow keys to increment/decrement to a configuration ID.
v The configuration ID is 8A for FC 5094.
v The configuration ID is 99 for FC 9094.
(078x
will be displayed). Press Enter (078x 00 will be displayed).
g. After a few seconds, the display on the addressed FC 5094, FC 9094 frame will stop blinking and
return to displaying the frame address. On a FC 9094, the display will show 07xx 00, indicating
success. Use the arrow keys to increment/decrement until 07** is shown. Press Enter to return
the panel to 07.
190 Hardware (Remove and Replace; Part Locations and Listings)
