3.5-In. Hard Disk Drive Jumper Locations & Settings

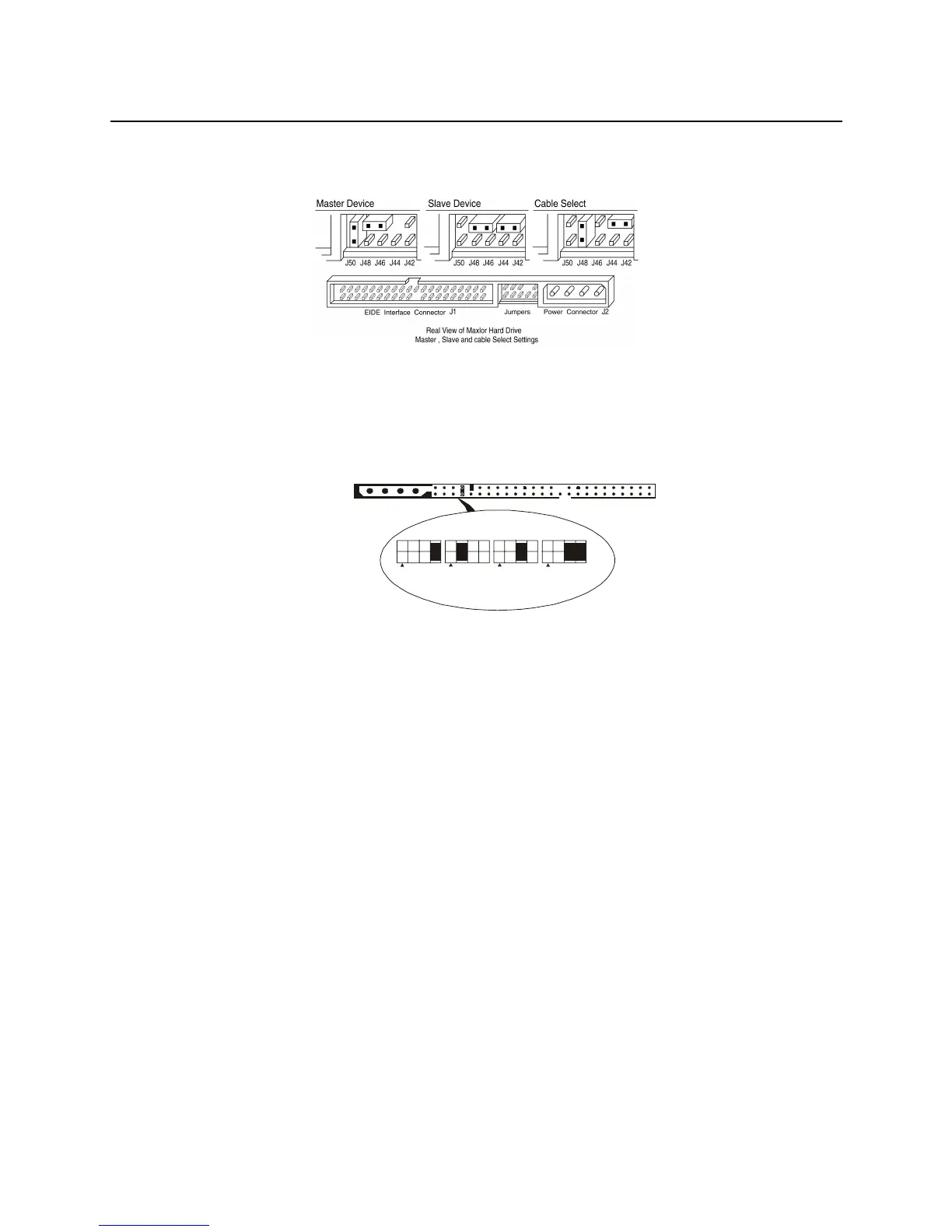

3.5-In. Hard Disk (Maxtor) Jumper Settings Locations
3.5-in Hard Disk (Quantum) Jumper Settings Locations
Back of Drive (Quantum)
AT Interface connector
Default
Setting
Jumper
Shown in
Parking
Position
Reserved
Position
DS with CS
for Slaves
not supporting
DASP
Jumper Configurations
Master
Slave
Cable Select
DS CS PK
CS
GND
GNDGND
CS
DS
GND
DS
