IBM NetVista Hardware

108

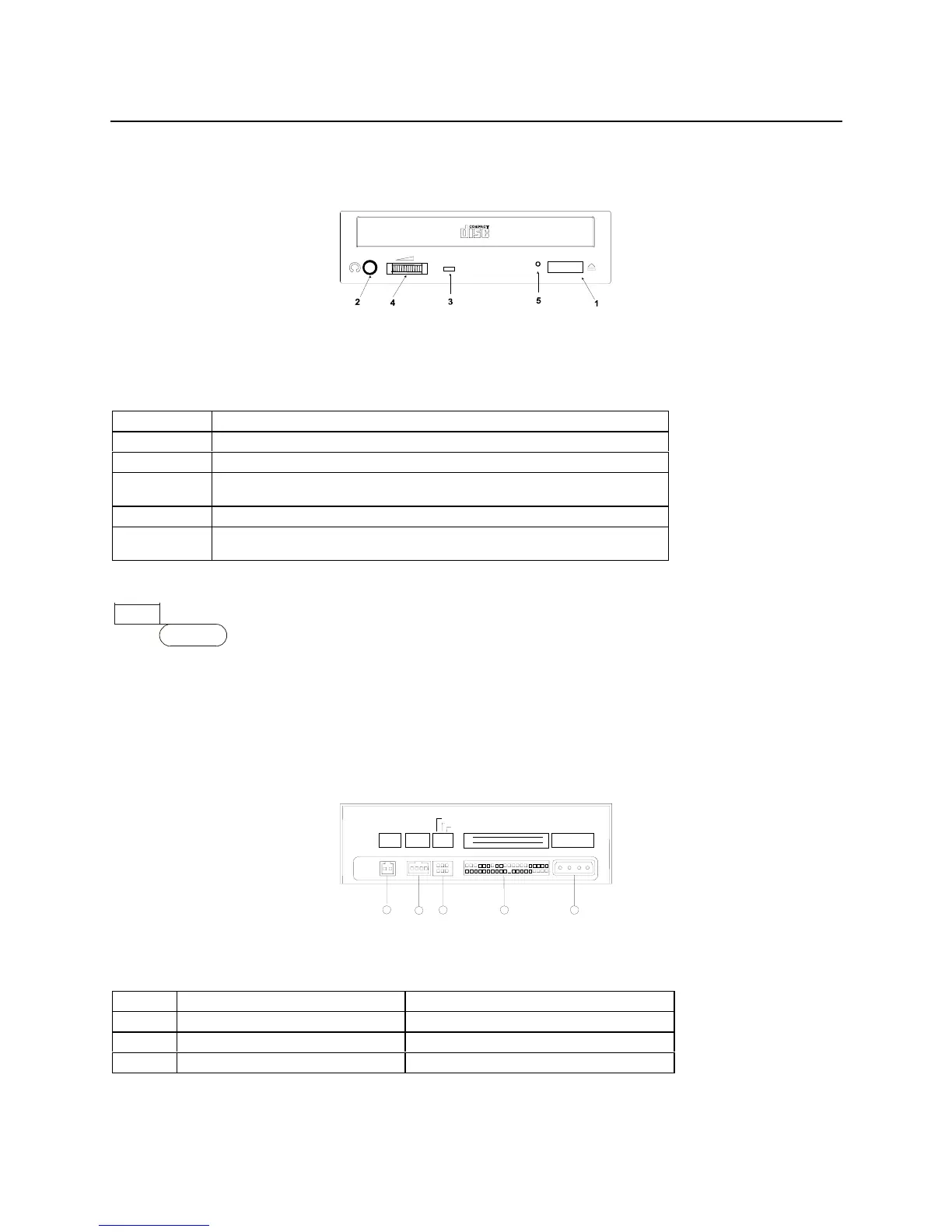

CD-ROM Drive
CD-ROM Front Panel
NOTE: Position of CD-ROM switches and LEDs may vary from illustration.
Item Description
1 Load / eject button
2 Headphone jack
3 Power-on / busy indicator, lights up in green color while disc is set in ready state;
lights up and flashes in amber color during data read or seek operation.
4 Headphone volume control
5 Emergency eject hole.
See CD-ROM Emergency-exit below.
CD-ROM Emergency-exit
NOTE: Make sure to turn off the power before manual discs eject operation.
CD-ROM Drive Rear Panel Connectors and Features
R G G L
A
UDIO
C S M
S L A
CABLE SELECT
SLAVE
MASTER
39
40
1
2
IDE INTERFACE
5V
12V
GG
DC INPUT
5
4
3
2
1
NOT USED
1 2
CD-ROM Rear Panel
Item Function Connect to…
1 Power supply connector Power supply
2 Configuration jumper. --
3NOT USED --
If for any reason the tray does not eject
automatically, insert and press an
eject-bar inside the emergency eject
hole to manually eject the tray. A
straightened paper clip with a diameter
of 1.2 mm (typical) can be used as an
eject-bar.
15mm
Typical
