CD-ROM Drive

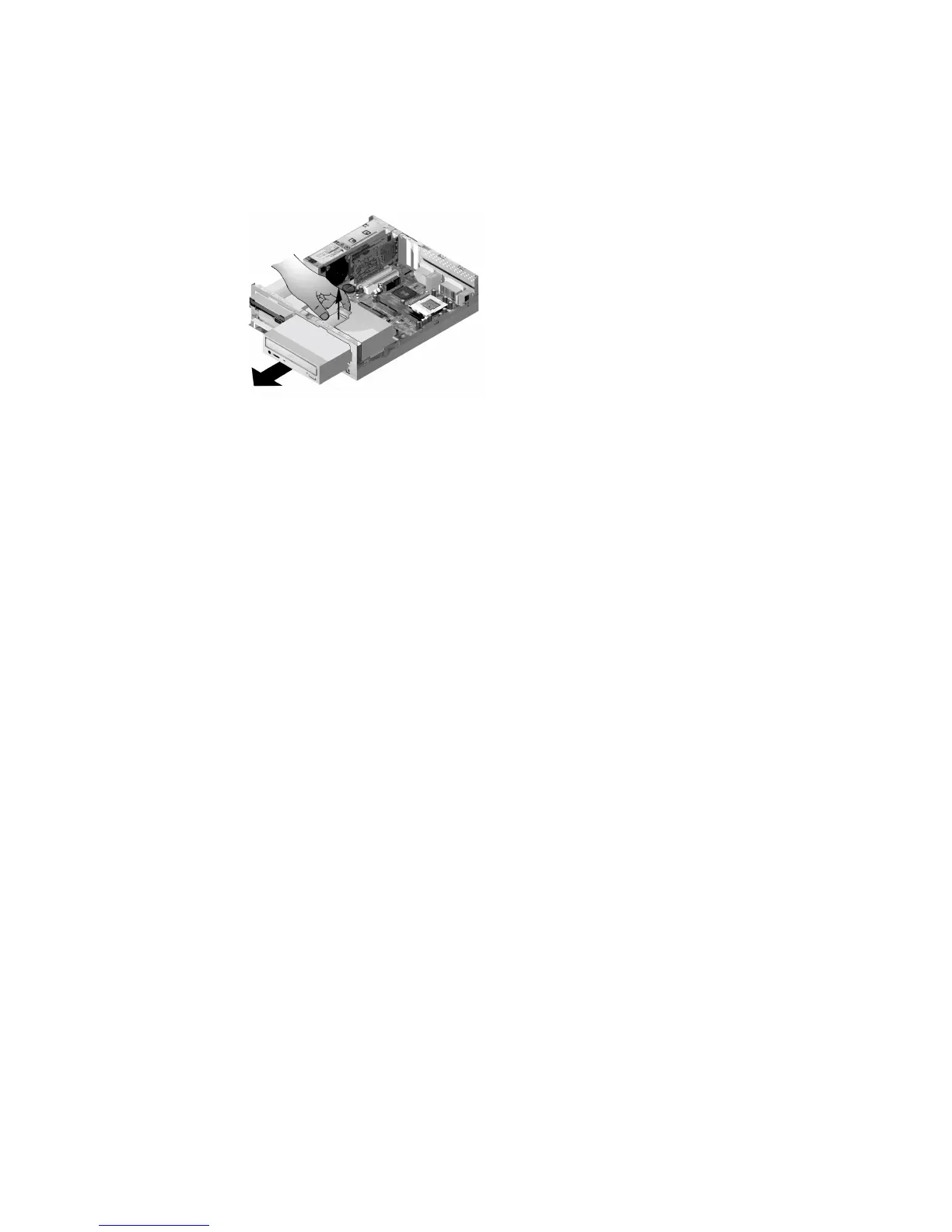

To remove CD-ROM Drive:
Disconnect the power, sound and signal cables from the CD-ROM.
Pull up the latch that secures the CD-ROM drive mounting tray.
Slide the drive-mounting tray toward the back of the computer and remove it.
Remove four screws (two on each side) that secure the bay holder.
Pull the bay holder backward and lift it up to remove it completely.
Reverse the procedure to install a new drive.
