v If using Installation Tool B,1lift the interlock latch and hold it up
while you2twist the microprocessor installation tool handle
counterclockwise to the open position, and then release the interlock
latch. The following illustration of the installation tool shows the
location of the interlock latch and counterclockwise rotation of the
handle before loading the microprocessor.
b. Align the installation tool with the screws, as shown in the following
graphic, and lower the installation tool on the microprocessor. The
installation tool rests flush on the socket only when it is aligned correctly.
Handle
Installation tool

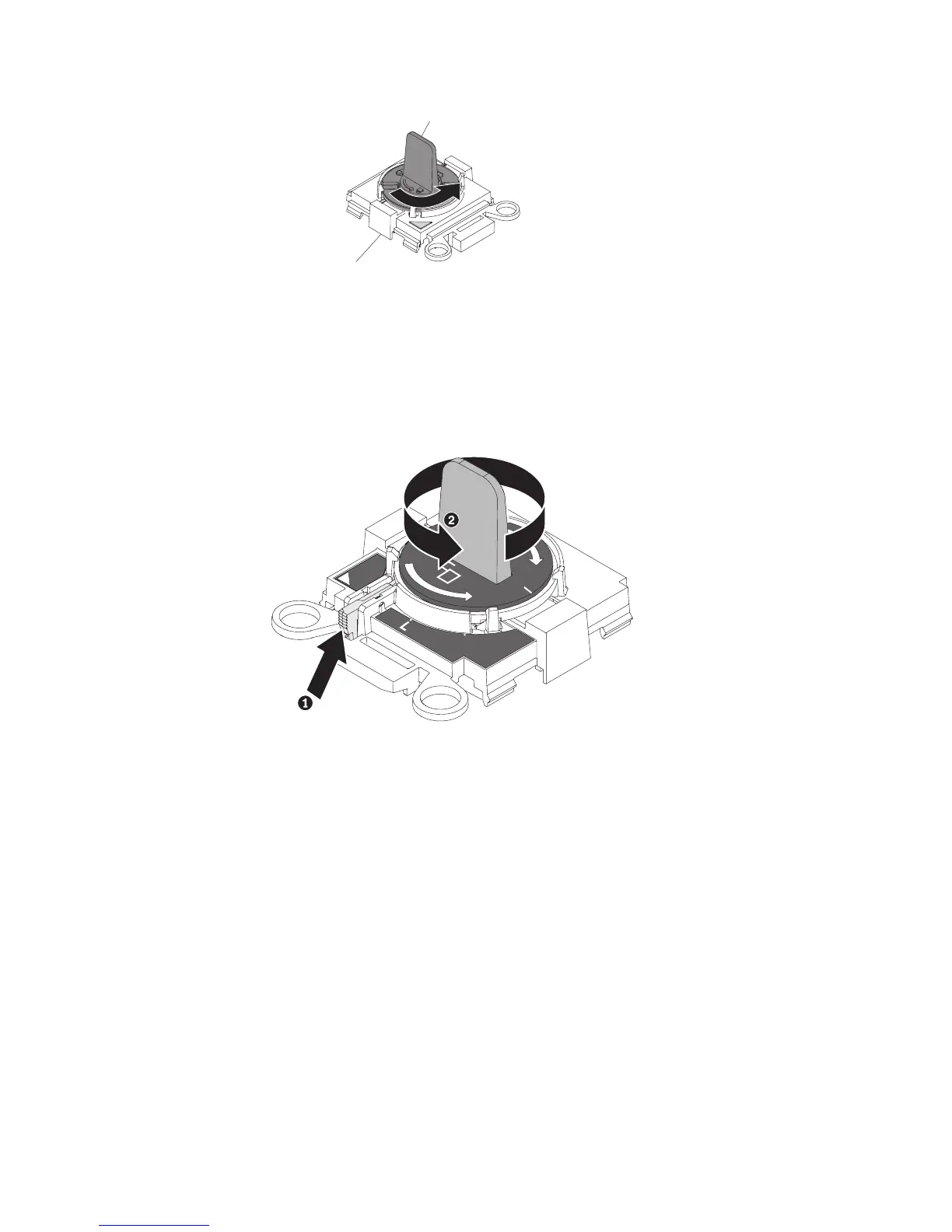

Figure 216. Installation tool handle adjustment
H
Figure 217. Installation tool handle adjustment
Chapter 6. Removing and replacing components 313
