CONNECTIONS AND MAINTENANCE
■ Mounting the transceiver
The universal mounting bracket supplied with your transceiver
allows overhead or dashboard mounting. Please read the fol-
lowing instructions carefully.
• Mount the transceiver securely with the 2 supplied screws
(M5 × 20) to a surface which is more than 10 mm thick and
can support more than 5 kg.
• Mount the transceiver so that the face of the transceiver is at
90° to your line of sight when operating it.
☞
CAUTION: KEEP the transceiver and microphone at
least 1 meter away from your vessel’s magnetic naviga-
tion compass.
☞ NOTE: Check the installation angle; the function display
may not be easy to read at some angles.

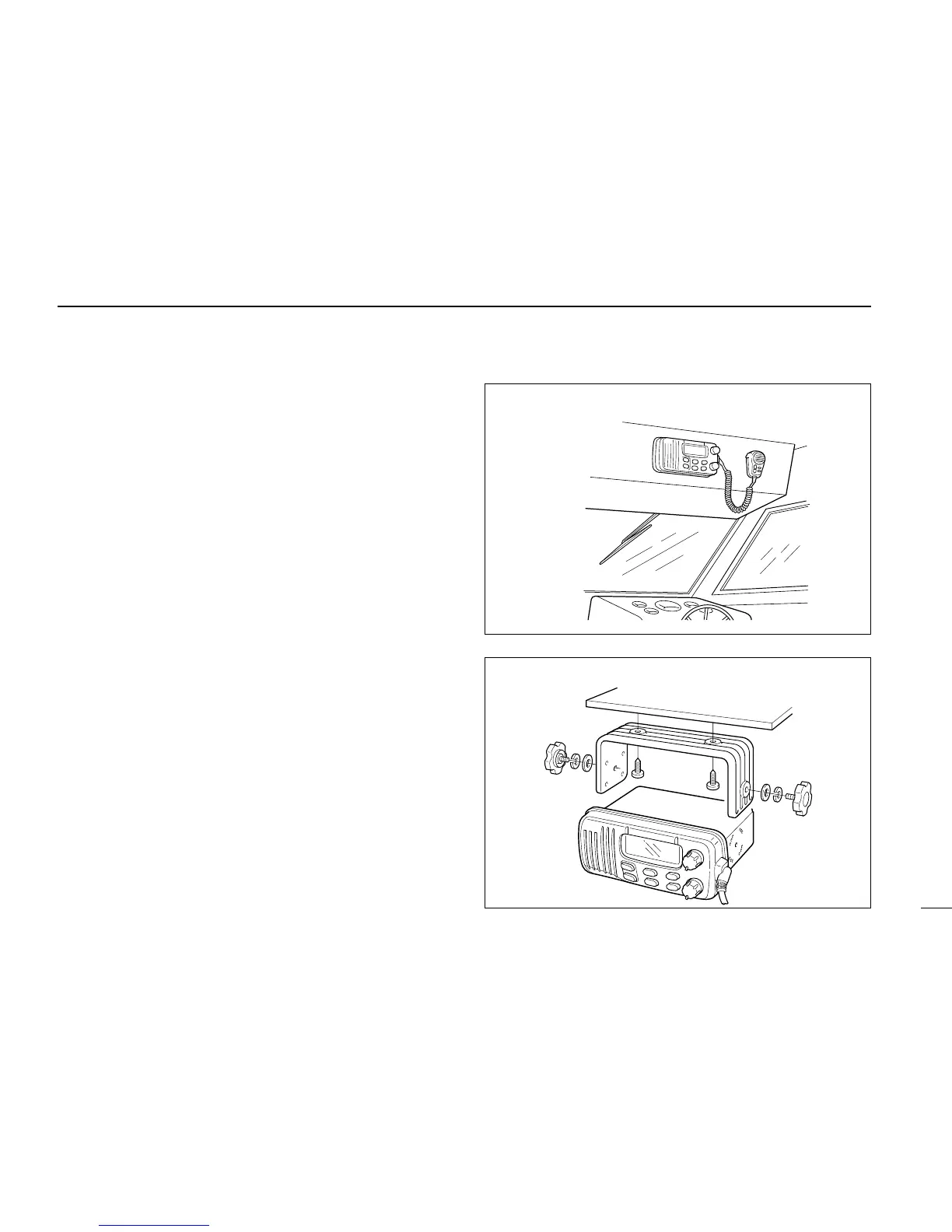

DASHBOARD MOUNTING (with optional MB-69)
OVERHEAD MOUNTING
To Next Page
