TM 10-736
0-226-
13&P
CONTAINERIZED KITCHEN (CK)
0039 00
GROUP 07 REFRIGERA
TO
R REPAIR PARTS
0039 00-1 Blank/2

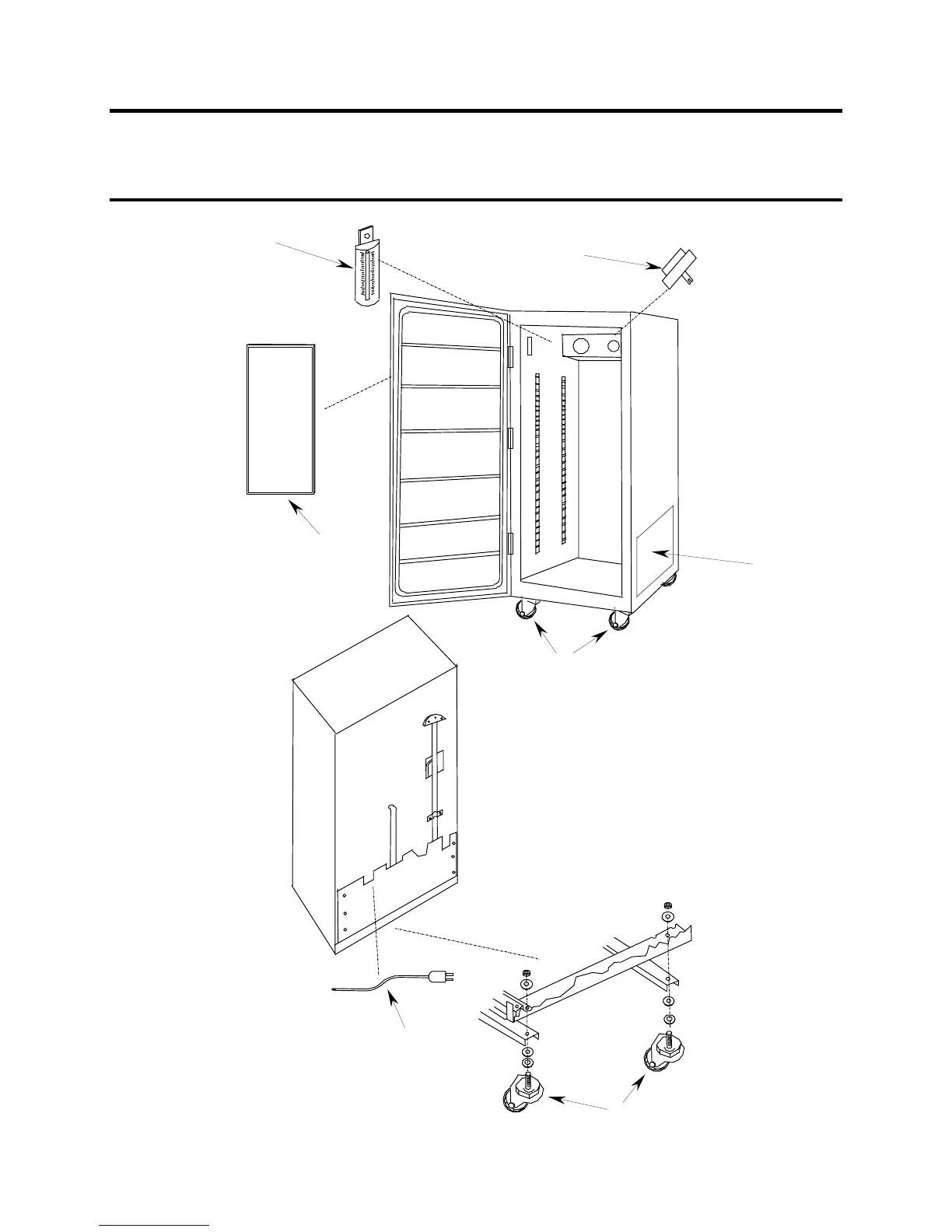

Figure 16. Refrigerator.
1
2
3
4
NOTE: L
EFT-HAND-HING
ED REFRIGER
ATOR
ILLUS
TRATE
D. REPAIR PART
S FOR RIGHT-
HAND
-HIN
GED UNI
T ARE IDENTIC
AL.
7
6
5
240
242
Table of Contents
Default Chapter
9
Table of Contents
9
Chapter 2 - Operator Instructions
42
Description of Operator Controls and Indicators
44
Operation under Usual Conditions
54
Operation under Unusual Conditions
90
Chapter 3 - Troubleshooting Procedures
94
Malfunction/Symptom Index
96
Troubleshooting Procedures - Electrical System
100
Troubleshooting Procedures - Modern Burner Unit (MBU)
104
Troubleshooting Procedures - Environmental Control Unit (ECU)
106
Troubleshooting Procedures - Hand Sink Assembly
108
Troubleshooting Procedures - Kitchen Appliances
110
Chapter 4 - Operator/Unit Maintenance Procedures
112
Service Upon Receipt
114
Preventive Maintenance Checks and Services (PMCS)
116
Chapter 5 - Direct Support Maintenance Procedures
140
Tray Pack Heater
140
Shelter Assembly
176
Chapter 6 - Supporting Information
178
References
181
Maintenance Allocation Chart (MAC)
182
Introduction to Repair Parts & Special Tools List
192
Group 01 Shelter Repair Parts
201
Group 02 Mechanical Room Repair Parts
209
Group 03 Cook Center Repair Parts
221
Group 05 Dual Oven Assembly Repair Parts
227
Group 06 Mobile Warming Cabinet Repair Parts
237
Group 07 Refrigerator Repair Parts
241
Group 08 Tray Pack Heater Repair Parts
245
Group 09 Hand Sink Assembly Repair Parts
251
Group 10 Mobile Storage Cabinet Repair Parts
255
Group 11 Prep/Serving Table Repair Parts
259
Group 12 Electrical System Repair Parts
263
Group 13 Bulk Material Repair Parts
278
Special Tools List
280
National Stock Number Index
282
Part Number Index
284
Components of End Item (COEI) and Basic Issue Items (BII) Lists
286
Additional Authorization List (AAL)
302
Expendable and Durable Items List
304
Tool Identification List
306
Mandatory Replacement Parts
308
Wiring Diagrams
310
Appendix A - Trailer Operations
320
Index
324
