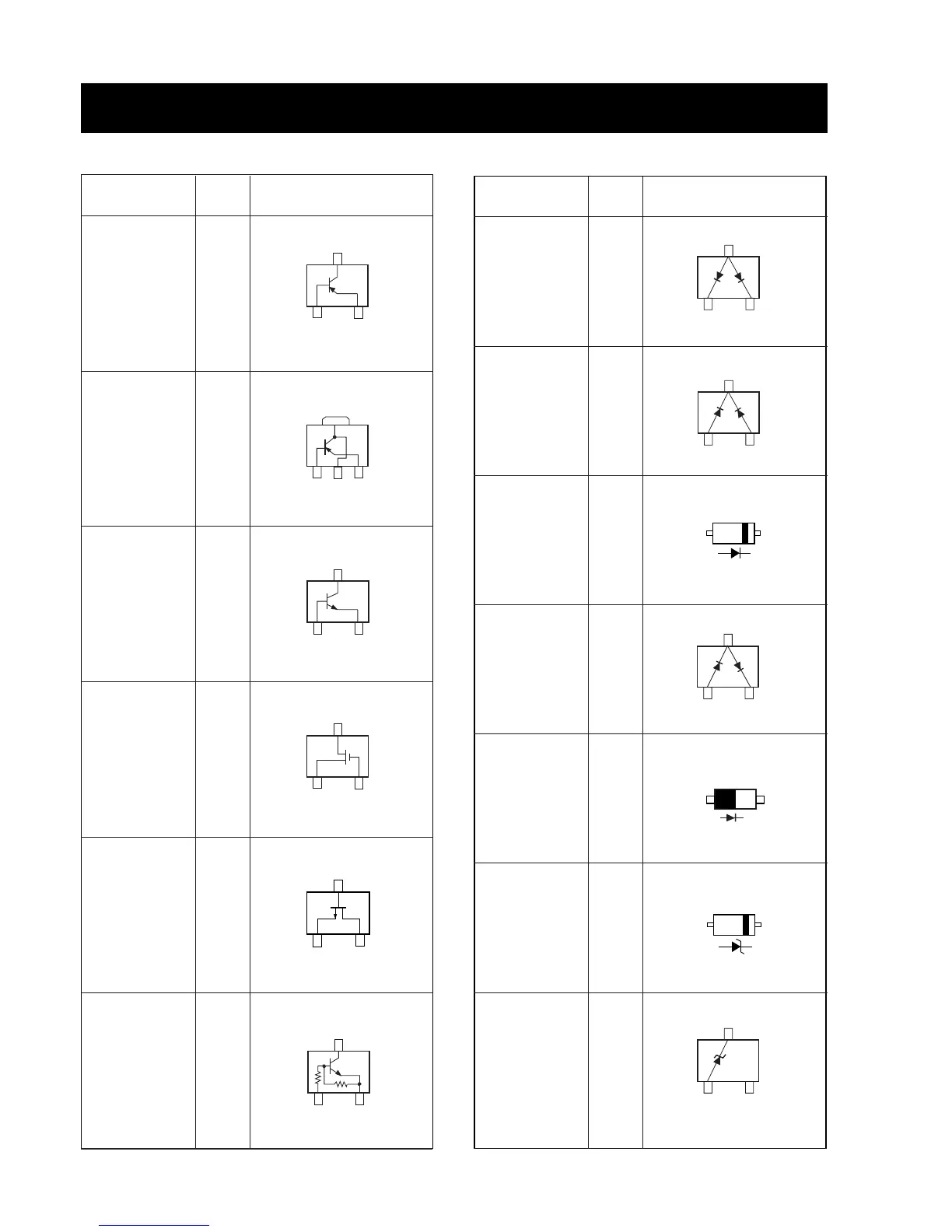

SECTION PARTS LISTSECTION 7 SEMI-CONDUCTOR INFORMATION
7-1 TRANSISTOR AND FET’s
NAME
SYMBOL
INSIDE VIEW
2SB1119S BB
2SB1123S BF
2SB1132R BAR
BE
C
C
2SK302-Y TY
DG
S
2SA1588-GR SG
2SA1586-Y SY
C
BE
DTC114EE 24
DTC144EE 26
BE
C
2SK515-T1B X33
G
SD
2SC2714-O QO
2SC4116-GR GR
BE
C
7-2 DIODES
NAME
SYMBOL
INSIDE VIEW
1SS300 A3
K1
A
K2
KA
1SS301 B3
A1
K
A2
1SS315 S2
1SS373 S4
D2FS4-4063 2FS
AK
HSM88AS-TR C1
MA8051-M 5_1
A
K
RD4.7M-T2B2 472
RD5.1M-T2B2 512
AK
MA77 4B
AK
