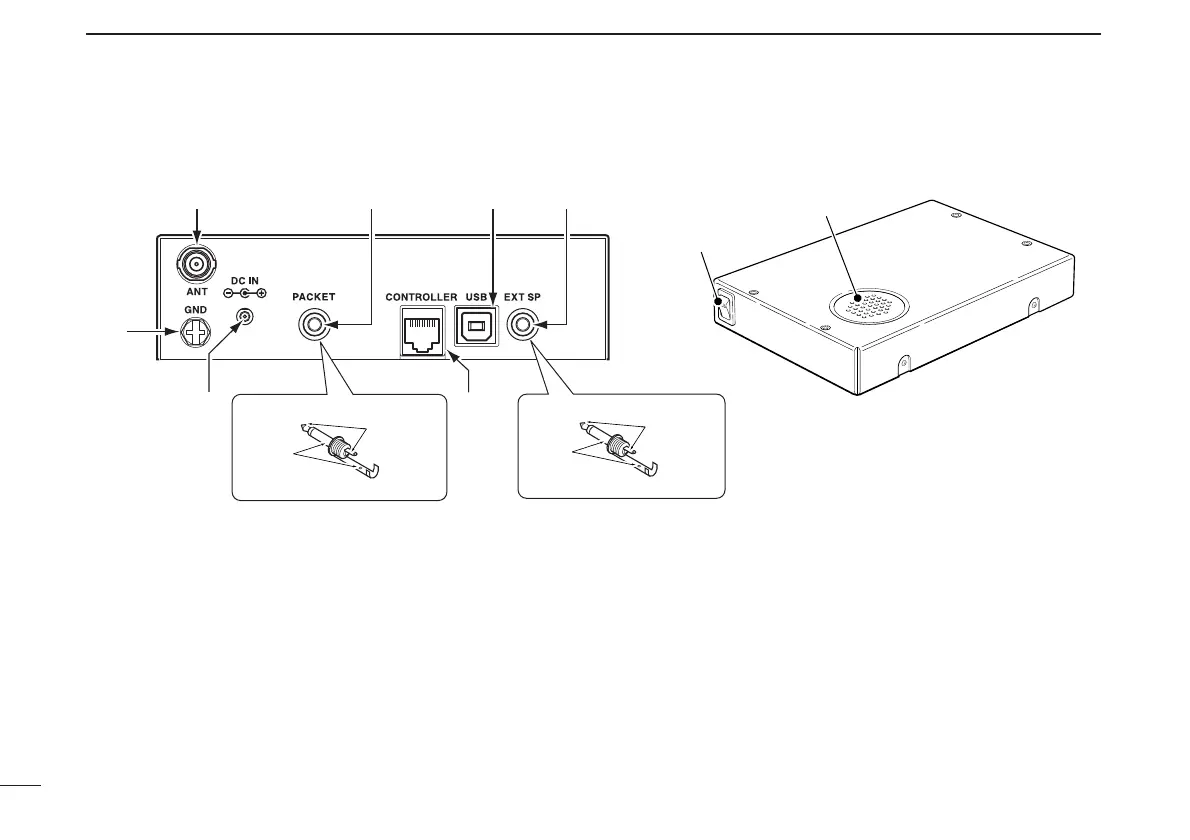

PANEL DESCRIPTION
qANTENNA CONNECTOR [ANT]
Connects a 50 Ω antenna with a BNC connector and a 50
Ω coaxial cable.
wDATA JACK [PACKET]
Connects a TNC (Terminal Node Controller), etc. for data
communications. The receiver can receive 9600 bps
packet communication (AFSK).
eUSB CONNECTOR [USB]
Connects to a PC via the supplied USB cable.
rEXTERNAL SPEAKER JACK [EXT SP]
Connects an 8 Ω external speaker.
• Audio output power is more than 0.5 W.
tCONTROLLER [CONTROLLER]
Connects to a controller via an extension cable.
yPOWER JACK [DC IN]
Accepts 12 V DC ±15% with the supplied DC power cable.
uGROUND TERMINAL [GND]
Connect this terminal to a ground.
