PANEL DESCRIPTION
2
q SET•LOCK SWITCH [SET•LOCK]
➥ Push to enter set mode
. ((p. 35))
➥ Push and hold for 1 sec. to turn the lock function ON
and OFF. ((p. 11))
w TUNING STEP/MODE SWITCH [TS•MODE]
➥ Push to enter tuning step selection mode
. ((p. 9))
• Rotate [DIAL] to select the desired tuning step.
➥ Push and hold for 1 sec. to enter receive mode selec-
tion mode. ((p. 10))
• Rotate [DIAL] to select the desired operating mode.
e VOLUME CONTROL [VOL] ((p. 11))
Adjusts the audio level.
r POWER SWITCH FOR CONTROLLER [PWR]
Push to turn the controller power ON when it’s OFF.
• Push and hold for 1 sec. to turn the controller power OFF when
it’s ON.
t SQUELCH CONTROL [SQL]
Varies the squelch level. ((p. 11))
S
E
T
L
O
C
K
S
.
M
W
M
W
rewq
!2 !1 !0 oiuy t
Function display ((p. 5))

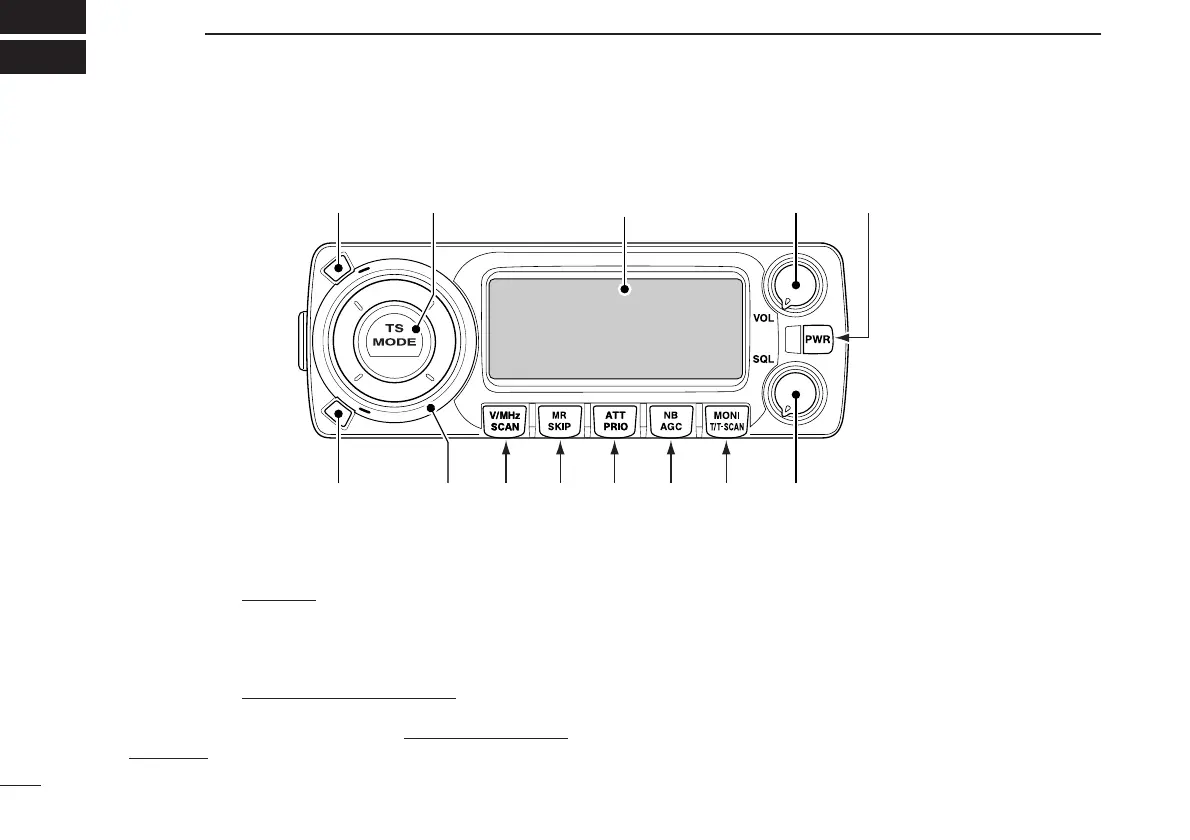

■ Front panel—controller
