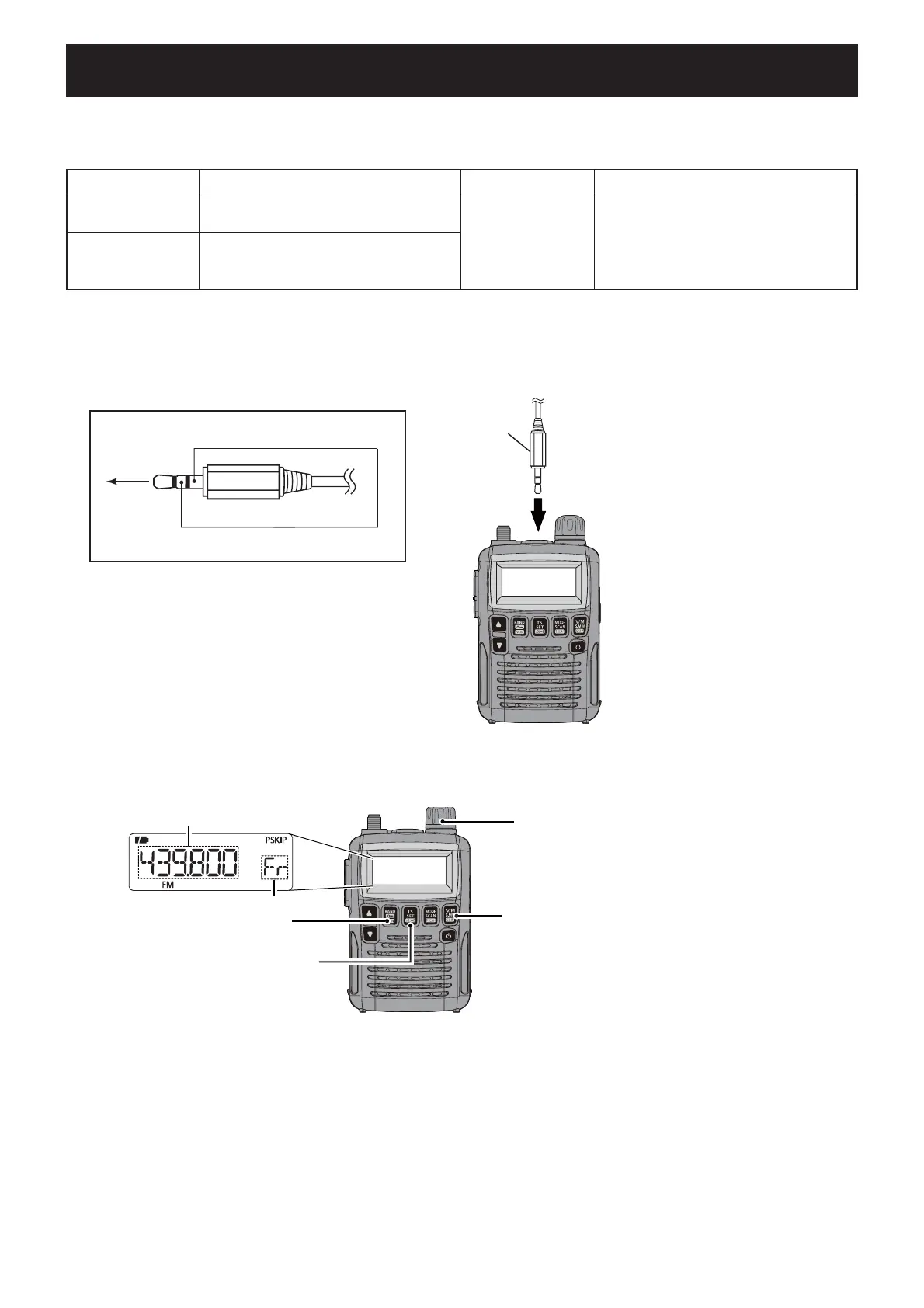

Icom IC-R6 Service Manual

5 - 1
¤
QUITTING ADJUSTMENT MODE
Turn the receiver’s power OFF.
¤ ENTERING ADJUSTMENT MODE
1)
Connect the JIG cable (see the illust below) to the [SP] jack.
2)
Push and hold [FUNC], [BAND],and [Y], turn the receiver’s power ON.
¤ KEY ASSIGNMENTS FOR THE ADJUSTMENT MODE
EQUIPMENT GRADE AND RANGE EQUIPMENT GRADE AND RANGE
JIG cable
Modifi ed 3-conductor 3.5 (d) mm plug
(See the illust below)
Standard signal
generator (SSG)
Frequency range : 100 kHz to 1.2 GHz
Output level : –20 to +107 dBµ
(–127 to 0 dBm)
Frequency counter
Frequency range : 0.1–300 MHz
Frequency accuracy : ±0.1 ppm or better
Input level : Less than 1 mW
¤ REQUIRED EQUIPMENTS
5-1 PREPARATION
JIG cable
To [SP]
3-conductor 3.5 (d) mm
plug
(CLONE)
To [SP]
(GND)
Adjust the value for the item
Selects next adjustment item
(without storing the value)
Selects previous adjustment item
• Stores adjustment value
• Starts automatic adjustment
Adjustment item
Adjustment frequency
SECTION 5
.
ADJUSTMENT PROCEDURE
• JIG CABLE

Icom IC-R6 Specifications

General

Product color	Black
Channels quantity	1550 channels
Supported radio bands	AM, FM
Battery type	AA
Number of batteries supported	2
Impedance	16 Ω
Frequency range	0.1 - 1309.995 MHz
Product type	Portable CB radio
Housing material	-

Weight and Dimensions

Depth	29.8 mm
Width	58 mm
Height	86 mm
Weight	200 g
