Icom IC-R6 Service Manual

7 - 1
[CHASSIS PARTS]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1 6510027770 3250 ANT CONNECTOR 1
SP1 2510001550 K036NA511-10 1
MP1 8210026020 3250 FRONT PANEL (incl. MP9) 1
MP2 8210026030 3250 REAR PANEL 1
MP3 8110009931 1995 BATT COVER (B)-1 1
MP4 8930080510 3250 7-KEY 1
MP5 8930080520 3250 FUNC RUBBER 1
MP6 8930047610 2127 JACK CAP 1
MP7 8310075670 3250 WINDOW PLATE 1
MP8 8010019092 2605 CHASSIS-2 1
MP9 8930011900 SPEAKER NET (A) (FX-573) 1
MP10 8830000571 STEP NUT (A)-1 1
MP11 8830001091 STEP NUT (D)-1 1
MP12 8930032320 1470 SHAFT 1
MP13 8110009941 1995 LOCK COVER (B)-1 1
MP14 8610010990 KNOBN-284 (incl. MP21) 1
MP15 8930044250 1995 BATT SEAL 1
MP16 8930080570 3250 WINDOW SHEET 1
MP17 8930044260 1995 A-TERMINAL 1
MP18 8930044271 1995 B-TERMINAL-1 1
MP19 8930044280 1995 C-TERMINAL 1
MP20 8860001101 1995 ANT RUG-1 1
MP21 8610007510 KNOB SPRING NO.7800 1
MP22 8810009181 0TAP 1FLAT WASHER B0 2X5 NI-ZC3 (BT) 3
MP23 8810009561 SCREW BT B0 2X6 NI-ZK3 (BT) 2
MP24 8930019791 891 RUBBER TERMINAL-1 2
MP26 8930080840 SPONGE (KU) 1
MP28 8930080500 3250 DC CAP 1
MP29 8210026040 3250 REFLECTOR 1
MP30 8930080540 3250 TERMINAL 1
MP31 8930080550 3250 A-TERMINAL 1
MP32 8930080580 3250 WHITE SHEET 1
[LOGIC UNIT]
[ACCESSORIES]
[RF UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J2* 6450002010 HSJ1501-011010 1
J3* 6510020561 AXK5S40347YG 1
J500 6450002131 04-730A3-02BKA 1
DS1 5030003251 TAK-35455 1
S6 2250000390 TP90N00E20-16F-1995 1
S9 2260001900 SW-149 (SKHLLD) 1
W1 7030012290 RDS2T0R0 1
W600 7030012290 RDS2T0R0 1
EP4 8930058920 SRCN-2605-SP-N-W 1
MP2 8510014830 2605 SHIELD CASE 1
MP3 8930080530 3250 LCD HOLDER 1
MP4 8810009181 0TAP 1FLAT WASHER B0 2X5 NI-ZC3 (BT) 2
MP5 8510019670 3250 LOGIC SHIELD 1
MP6 8510019640 3250 DC-DC CASE 1
MP7 8930080560 3250 JACK HOLDER 1
MP8 8930080790 3250 A-MAGNETIC SHIELD 1
MP9 8930080800 3250 B-MAGNETIC SHIELD 1
MP10 8930080860 INSULATION SHEET (MR) [EUR], [UK], [ITA], [USA],
[FRA], [ESP], [CAN],
[EUR-01], [ITA-01], [USA-01],
[FRA-01], [ESP-01], [CAN-01] only 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1* 6510020121 AXK6S40547YG 1
EP2 3310003010 KY-058-006-2 1
MP1* 8510019650 3250 VCO CASE 1
MP2 8510019660 3250 VCO COVER 3
MP5 8510019680 3250 RF B-SHIELD 1
MP8* 8510019650 3250 VCO CASE 1
MP9* 8510019650 3250 VCO CASE 1
MP10* 6910014760 OG-503040 1
MP11 8510019740 3250 SHIELD PLATE [EUR], [UK], [ITA], [USA],
[FRA], [ESP], [CAN],
[EUR-01], [ITA-01], [USA-01],
[FRA-01], [ESP-01], [CAN-01] only 1
MP12 8930080810 3250 C-MAGNETIC SHIELD 1
MP13 8930080820 3250 D-MAGNETIC SHIELD 1
MP14 8930080850 CU SHEET (X) 1
MP15 8930063280 DOUBLE SIDE TAPE (AP) 1
MP16 8930076930 INSULATION SHEET (MH) [EUR], [UK], [ITA], [USA],
[FRA], [ESP], [CAN],
[EUR-01], [ITA-01], [USA-01],
[FRA-01], [ESP-01], [CAN-01] only 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
BT1 3040000050 H-AA1400A-EXP [EUR-01], [CHN-01], [ITA-01],
[USA-01], [FRA-01],[ESP-01], [CAN-01] only 2
EP1 3310002150 FA-S270C 1
EP2 0800011980 BC-196SD [EUR-01], [ITA-01], [FRA-01], [ESP-01] 1
5930001650 BC-153SC [CHN-01] 1
0800011970 BC-196SA [USA-01], [CAN-01] 1
MP1 8930044191 1995 BELT CLIP-1 1
MP2 8010018080 STRAP HK-009 1

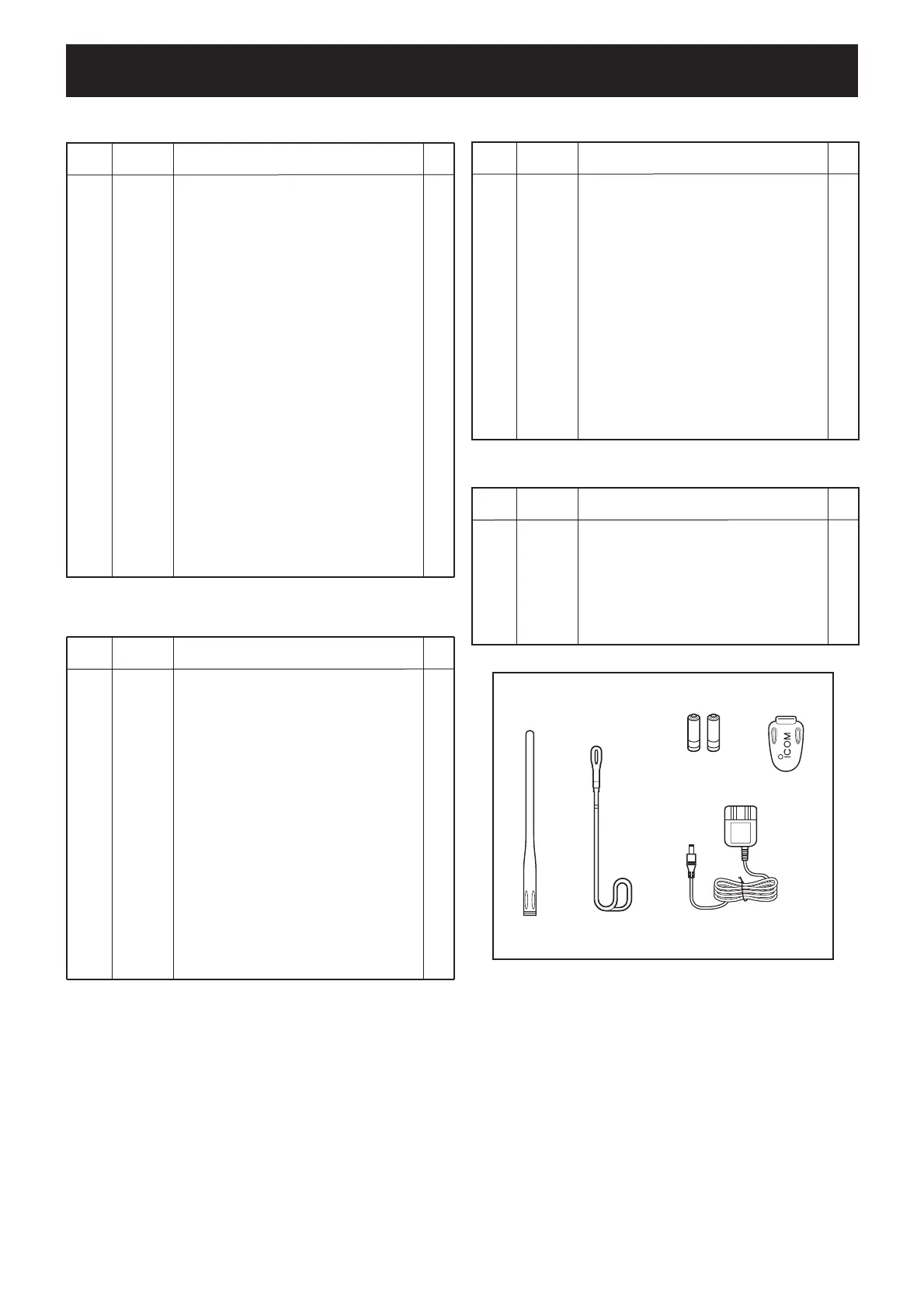

SECTION 7
.
MECHANICAL PARTS
*: Refer to “BOARD LAYOUTS” for the location.
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
EP1
EP2*
MP1
MP2
BT1
*The shape is different, depending on the receiver version.
