3 - 1

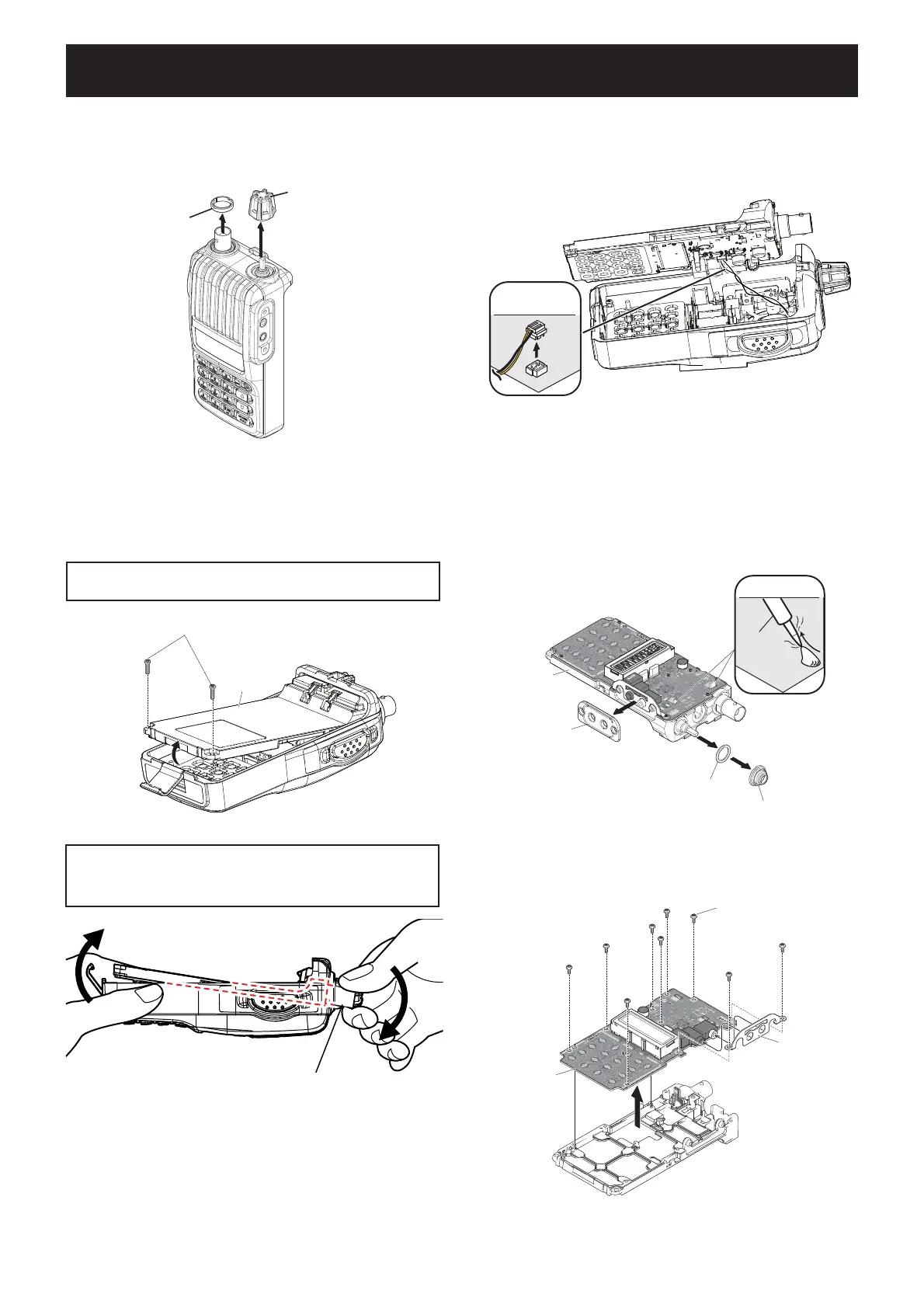

SECTION 3
DISASSEMBLY INSTRUCTION
KNOB
ANT CONNECTOR NUT
SCREW×9
MAIN UNIT
SIDE PLATE
SPEAKER
WIRE
SCREW×2
CHASSIS
UNSOLDER
Solder
remover
TOP SEAL
SIDE SEAL
CHASSIS
NUT
BE CAREFUL to not pull out the speaker wire when
separating the CHASSIS and the FRONT PANEL.
For easy separation of the CHASSIS
Use the antenna connector as the grip to GENTLY lift the
bottom of the CHASSIS up slightly.
1. REMOVING THE CHASSIS
1) Remove the ANT connector nut and knob.
2. REMOVING THE MAIN UNIT
1) Remove the top seal, side seal and nut from the
CHASSIS.
2) Unsolder the 2 points shown.
2) Remove 2 screws from the bottom of the CHASSIS.
3) Lift the bottom of the CHASSIS up in the direction
of the arrow.
4)
CAREFULLY lift the chassis out of the FRONT PANEL
and turn it over in order to unplug the speaker wire.
(Continued to the right above)
Antenna connector
3) Remove the 9 screws and the side plate from the
MAIN UNIT.
To Next Page
