PANEL DESCRIPTION
New2001

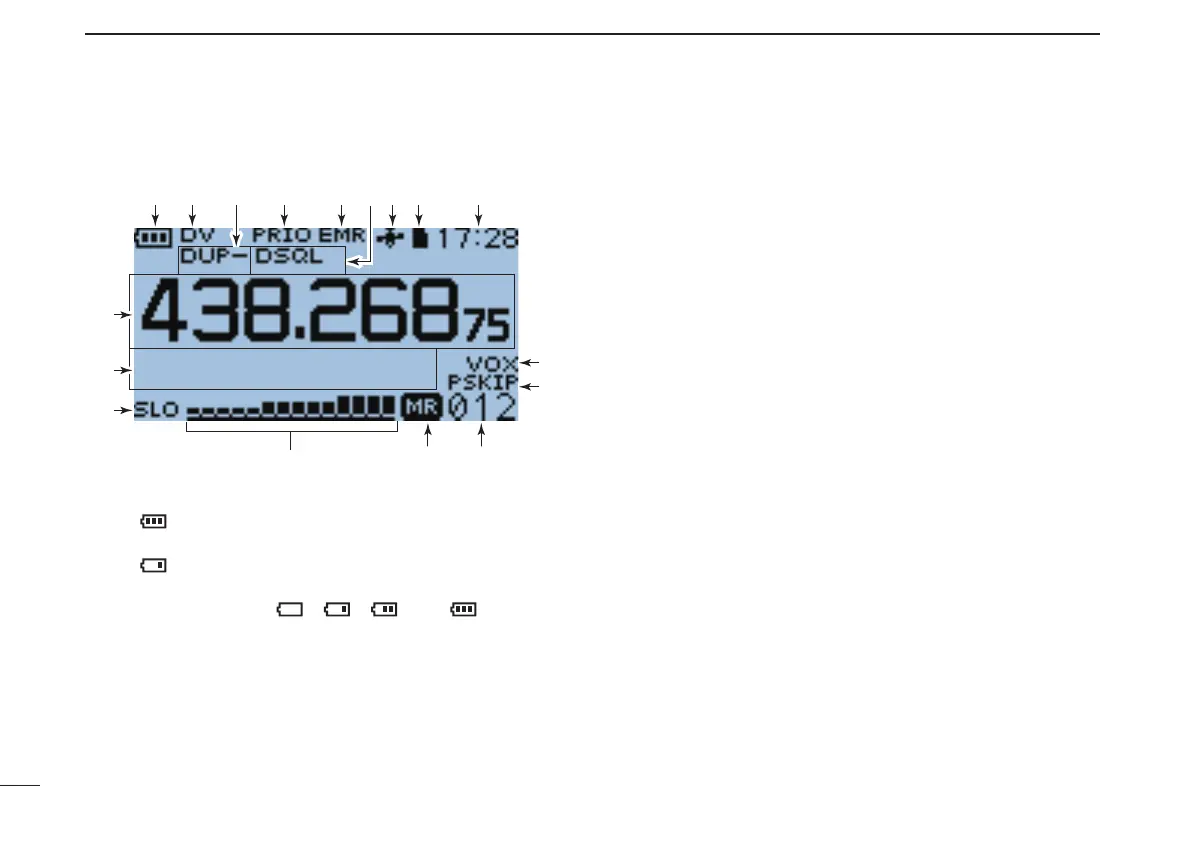

■ Function display
qw r t yu i
!1
!0
!4 !3 !2
!7
!6
!5
o
e
q BATTERY ICON (pp. 13, 17)
“ ➥
” (battery icon) appears when the battery pack is
attached.
“ ➥
” appears when the battery pack must be charged.
While charging the attached battery pack, the icon se- ➥
quentially shows “
,” “ ,” “ ” and “ .”
w OPERATING MODE ICONS (p. 24)
Shows the selected operating mode.
 •DV,FMandFM-Nareselectable.
 •“DV-G”or“DV-A”appearswhenGPSorGPS-Atransmissionis
selected in the DV mode. (pp. 37, 38)
e DUPLEX ICON (p. 29)
 “DUP+”appearswhenplusduplexisselected,and“DUP–”
appearswhenminusduplexisselected.
r PRIORITY WATCH ICON
Appears when Priority Watch is in use.
See the PDF type Advanced Instruction’s Section 9 for
more details.
t EMR/BK ICON
Appears when Enhanced Monitor Request (EMR) or
Break-in (BK) mode is selected.
See the PDF type Advanced Instruction’s Section 4 for
more details.
y TONE ICONS
(PDF type Advanced Instruction’s Section 11)
 •WhileoperatinginFM/FM-Nmode:
“ TONE” appears while the Repeater Tone Encoder is ➥
ON. (p. 29)
“ TSQL” appears while the Tone squelch function is ON. ➥
“ TSQL-R” appears while the Reverse Tone squelch ➥
function is ON.
“ DTCS” appears while the DTCS squelch function is ➥
ON.
“ DTCS-R” appears while the reverse DTCS squelch ➥
function is ON.
“ ➥ S” appears with the “TSQL” or “DTCS” icon while
the Pocket Beep function (with CTCSS or DTCS) is
ON.
