Classic SE FF - Installation & Servicing
13
INSTALLATION

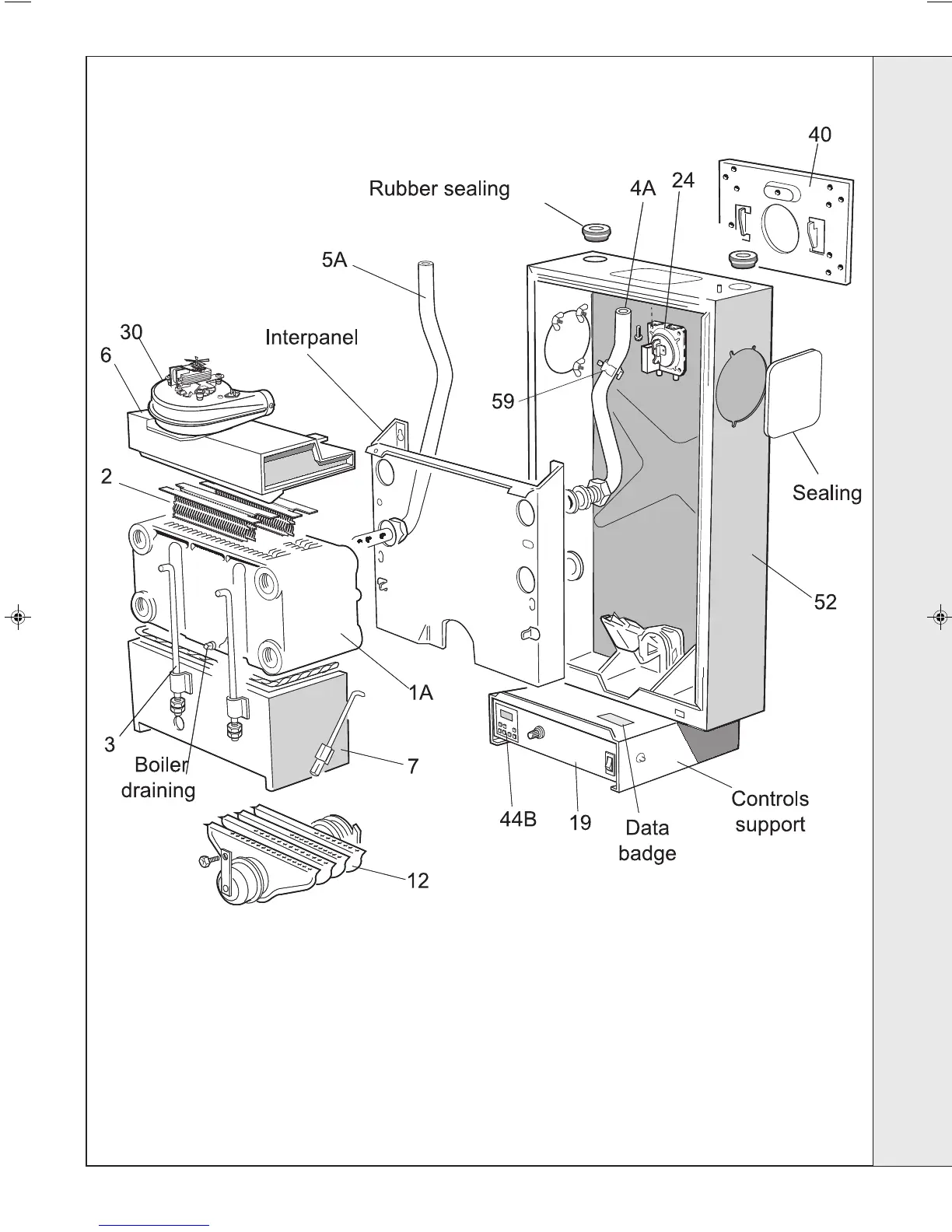

7 BOILER ASSEMBLY - Exploded view
Classic SE9 FF shown
LEGEND
1A. Heat exchanger.
2. Flue baffles.
3. Tie rods.
4A. Pumped flow pipe.
5A. Pumped return pipe.
6. Collector hood assembly.
7. Combustion chamber.
12. Main burner.
19. Control box .
24. Pressure switch.
30. Fan.
40. Wall mounting plate.
44B. Programmer (optional).
52. Back panel.
59. Limit thermostat
cla 7158
INSTALLATION
200544-5.pmd 20/02/2008, 13:2613
