Classic SE FF - Installation & Servicing
25
INSTALLATION
Notes.
1. Some earth wires are omitted for
clarity. Ensure proper earth continuity
when wiring.
2. Numbering of terminals on
thermostats is specific to the
manufacturer.
3. This is a fully controlled system - set
the boiler thermostat to maximum.
4. Switchmaster 'Midi' is similar in
operation but the wiring differs slightly
- see the manufacturer's literature.
40

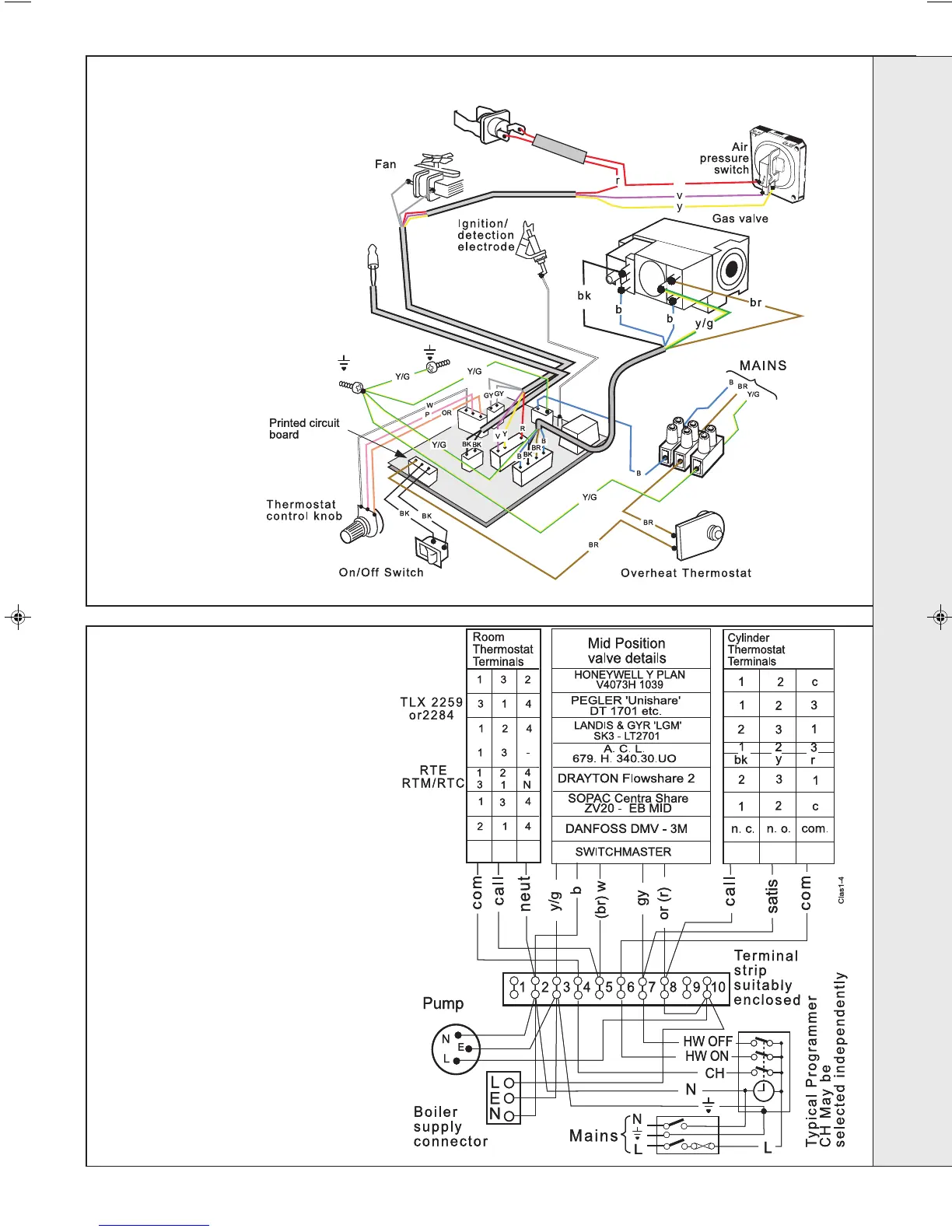

PICTORIAL WIRING
41
MID POSITION VALVE
Pumped only
LEGEND
b-blue
bk - black
br - brown
gy - grey
or - orange
pk - pink
r-red
v-violet
w-white
y-yellow
y/g - yellow/green
LEGEND
b-blue
bk - black
br - brown
gy - grey
or - orange
pk - pink
r-red
v-violet
w-white
y-yellow
y/g - yellow/green
Limit thermostat
Thermostat
sensor
cla7948
r
INSTALLATION
200544-5.pmd 20/02/2008, 13:2625
