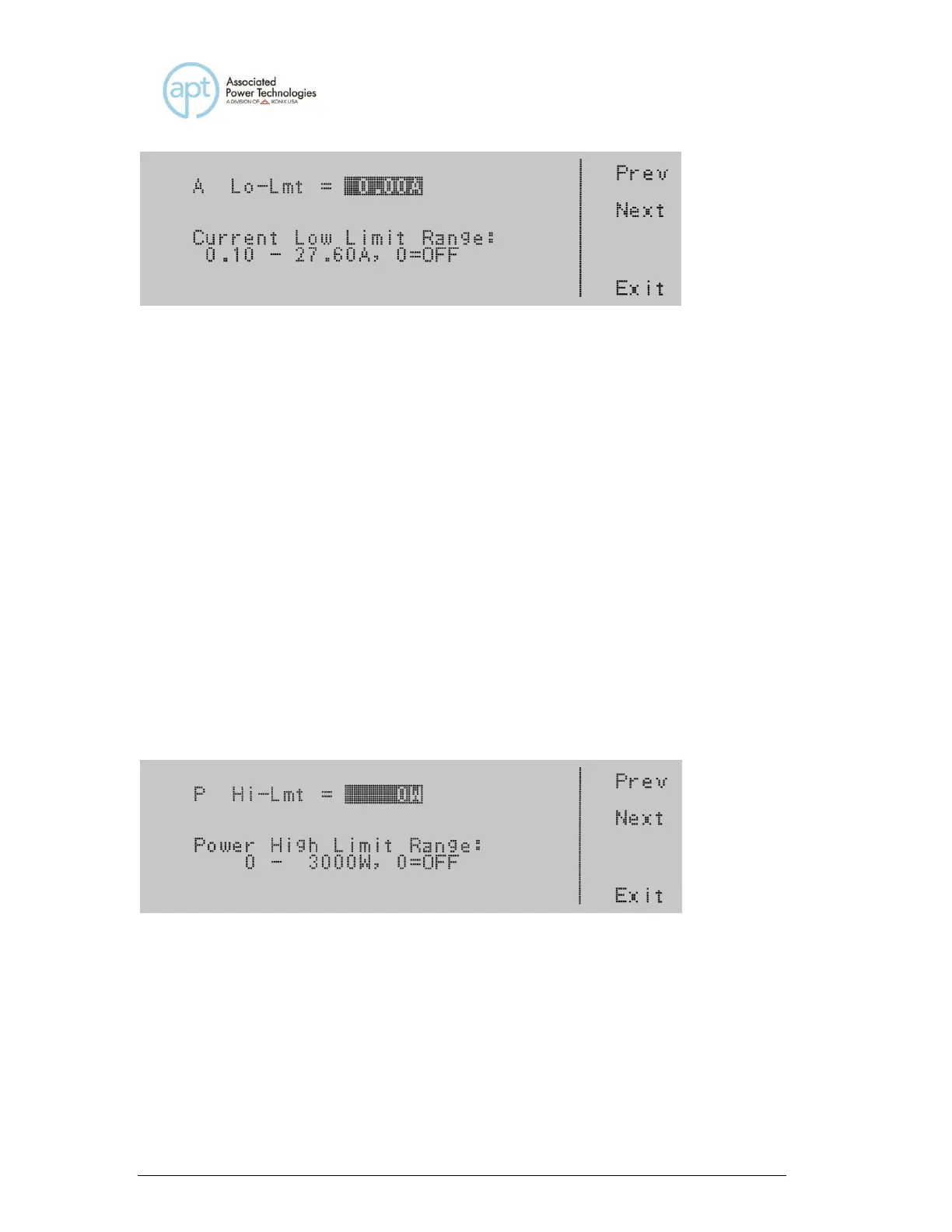

A Lo-Lmt = indicates the current low limit that is programmed into the instrument.
Current Low Limit Range: indicates the current range that can be programmed
into the instrument.
The A Lo-Lmt parameter setting is only available in the PROGRAM Mode.
To change the current high limit or low limit, use the numeric keypad and type the
current value. Once you type in a number a shaded black box (■) will begin
blinking acknowledging the parameter is being changed. Press the Enter soft
key to accept the parameter, or press the Esc soft key to move back to the
Current Parameter screen. When the Enter soft key is pressed the current is
accepted and you transition into the next parameter: P Hi-Lmt.
If you wish to bypass editing this parameter and move to the next parameter you
can press the Prev or Next soft key.
4.6.19 Editing P Hi-Lmt & P Lo-Lmt (PROGRAM Mode only)
Use the , soft keys to navigate to the P Hi-Lmt or P Lo-Lmt parameter.
Pressing the Edit soft key will provide one of the following screens:
P Hi-Lmt = indicates the power high limit that is programmed into the instrument.
Power High Limit Range: indicates the power range that can be programmed into
the instrument. If you select the 0=OFF a high limit power range is turned OFF.
