4
STVZ ed 02/06 VICTRIX Zeus
Technical Documentation
Technical Documentation

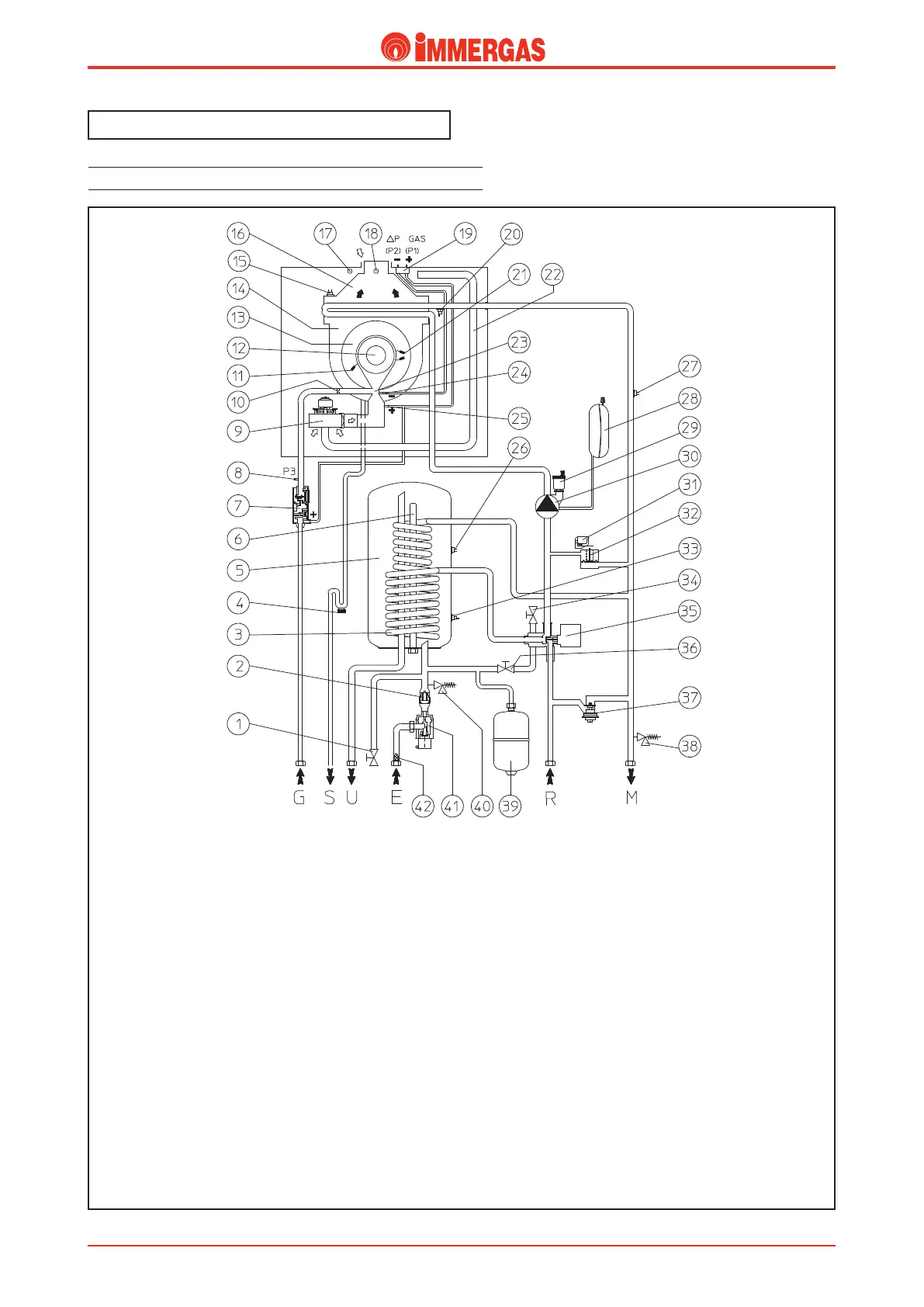

Hydraulic circuit.
Legend:
1 - Storage tank emptying valve
2 - One way valve
3 - Stainless steel coil for storage tank
4 - Water trap syphon
5 - Stainless steel storage tank 316L
6 - Magnesium anode
7 - Gas valve
8 - Gas valve outlet pressure point (P3)
9 - Air fan
10 - Gas nozzle
11 - Detection electrode
12 - Burner
13 - Condensation module lid
14 - Condensation module
15 - Fume thermostat
16 - Draught diverter
17 - Air analyser trap
18 - Fume analyser trap
19 - ∆p gas pressure point
20 - Heating adjustment and limit NTC probe
21 - Ignition electrode
22 - Air inlet pipe
23 - Venturi air/gas manifold
24 - Venturi negative signal (P2)
25 - Venturi positive signal (P1)
26 - Max drawing limit thremostat
27 - Overtemperature safety thermostat
28 - Expansion vessel
29 - Automatic air outlet valve
30 - Circulator
31 - Pump pressure switch microswitch
32 - Pump pressure switch
33 - D.h.w. NTC probe
34 - System emptying cock
35 - Motorised 3-way valve
36 - System filling valve
37 - Adjustable by-pass
38 - 3 bar safety valve
39 - D.h.w. expansion vessel
40 - 8 bar safety valve
41 - Gaudium Magnum device
42 - Cold water inlet filter
G - Gas supply
S - Condensate discharge
U - D.h.w. outlet
E - D.h.w. inlet
R - System return
M - System delivery
(from the serial number 2753798 for VICTRIX Zeus 20)
(from the serial number 2731813 for VICTRIX Zeus 27)
