Infineon TLE987 Series User Manual

Jumper position 1
Jumper position 2

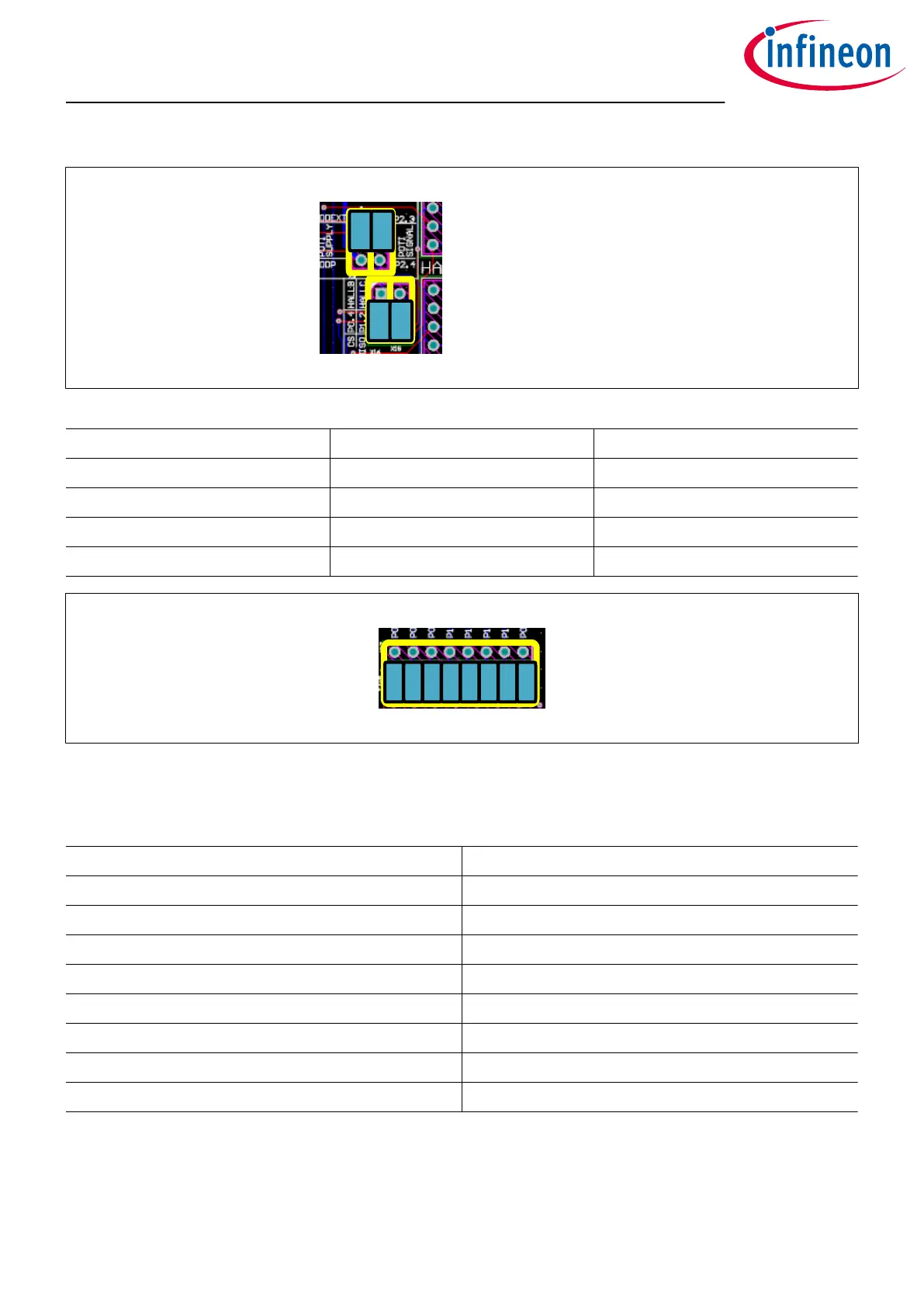

Figure 10 Jumper position
Jumper
Position 1 Position 2
POTI SUPPLY VDDEXT VDDP
POTI SIGNAL P2.3 P2.4
P0.4 HALL B CS
P1.2 HALL C MISO
Figure 11 Jumper position for LEDs and PINs
Set jumper as shown in Figure 11 to connect the according PINs and LEDs.
Table 1 LEDs and PORTs jumper
PIN LED
P0.1 LED1
P0.2 LED2
P0.3 LED3
P1.2 LED4
P1.0 LED5
P1.3 LED6
P1.4 LED7
P0.4 LED8
TLE987x EvalBoard
4 Jumper settings
User Manual 11 v1.0
2020-07-30
