Connecting the LiteShow II Adapter

Required connections

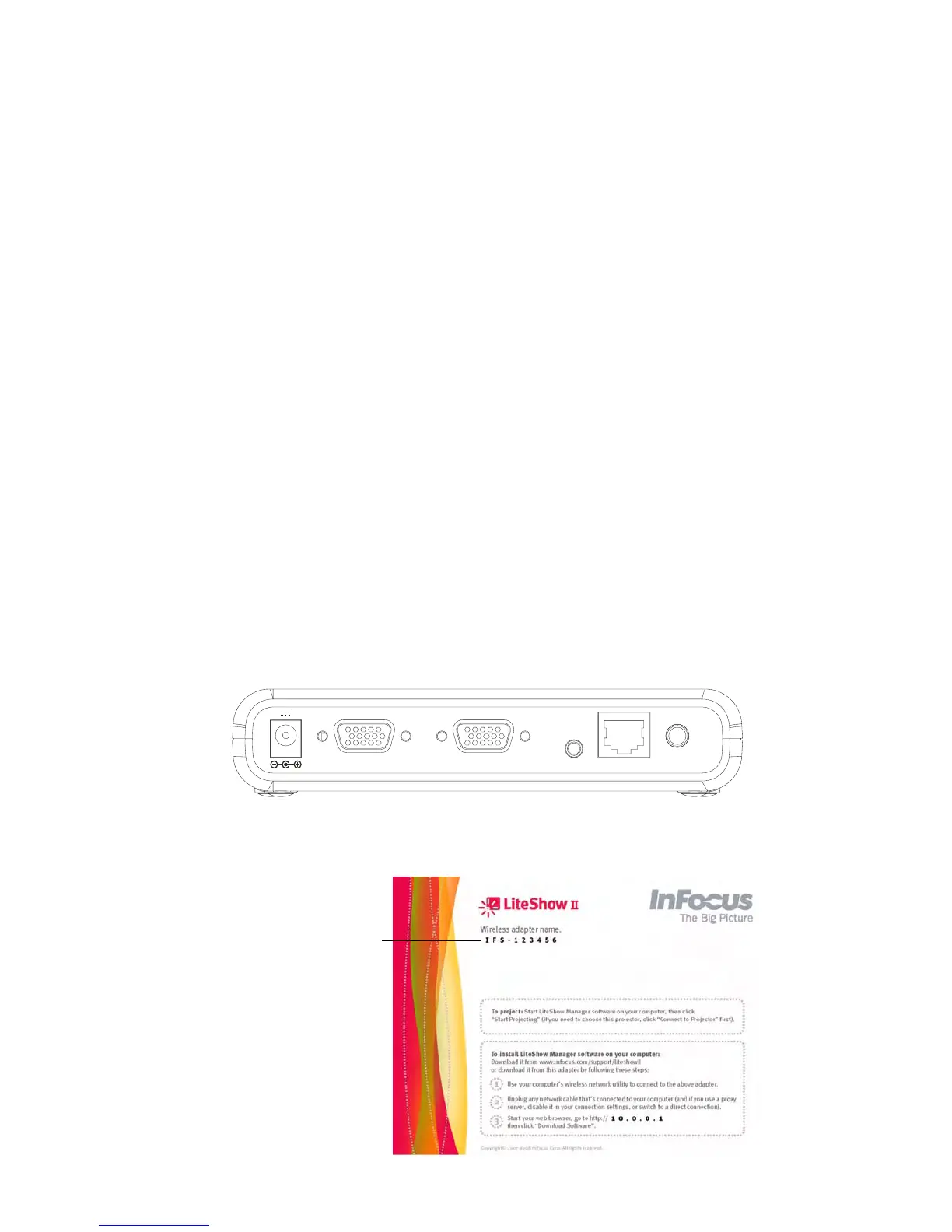

Connect the included VGA cable from the VGA OUT port on the LiteShow II adapter to the VGA in port on your projector. Connect the AC Power adapter to a power

outlet, then connect it to the Power In connector on the adapter. The LED on the front of the adapter lights steady red while the adapter is booting up and steady green

when the adapter is initialized and ready. (The LED blinks green when the adapter is in use and it blinks red in the event of an error.)

If you plan to mount the adapter adjacent to the projector, drill 2 holes 8 cm apart. A mounting template is included on page 34 to help you locate the holes.

Turn on your projector. The LiteShow Startup screen appears on your display. Note that this screen can change based on the adapter’s network type. Additional informa-

tion, like adapter host name and adapter IP address may appear. See pages 20-26 for detail on network type and related settings.
