‑12‑
2.2 Installation Method

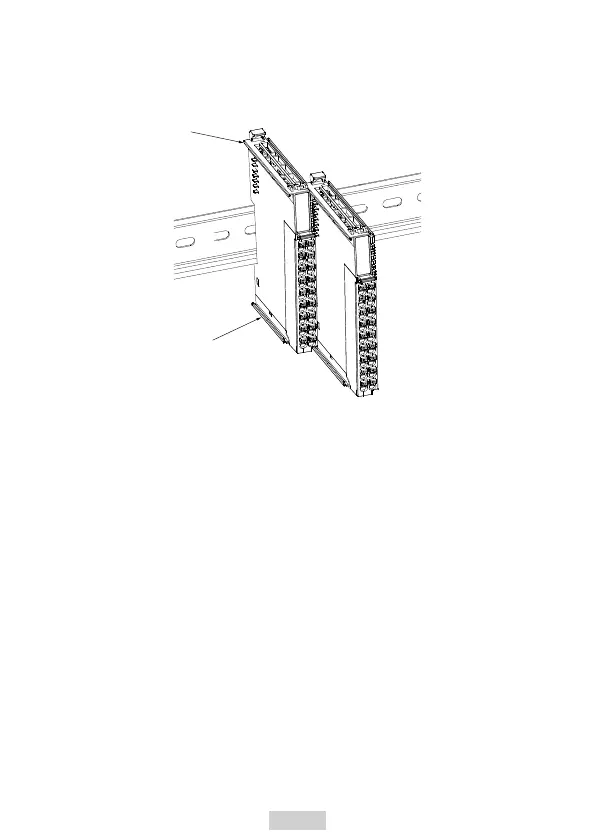

■ Installing Modules Side-by-Side
You can install multiple modules side by side with the help of top and bottom guides
on the modules, as shown below.
■ Installing Module onto DIN Rail
You can install the module onto a DIN rail. Align the module with the DIN rail and
push the module in the direction indicated by the arrow until you hear a click, as
shown below.
Note: After the module is installed, the DIN rail mounting hook will automatically
move downward to lock the module to the rail. If the hook does not move downward,
press down the top of the hook to ensure that the module is installed in place.
Mount an end plate on either side of the module assembly. To mount the end plate,
hook the bottom of it to the bottom of the DIN rail, rotate the end plate to hook the
top of it to the top of the DIN rail, and then tighten the screw to lock the end plate in
place, as shown below.
To Next Page
