‑15‑

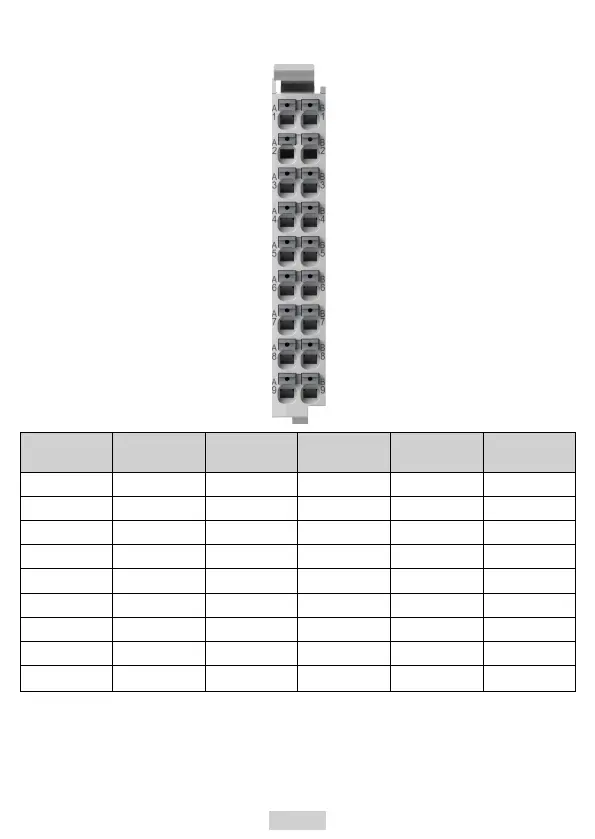

3.2 Terminal Definition
Left Indicator Left Signal Left Terminal Right
Terminal
Right Signal Right
Indicator
00 DO0 A1 B1 DO10 10
01 DO1 A2 B2 DO11 11
02 DO2 A3 B3 DO12 12
03 DO3 A4 B4 DO13 13
04 DO4 A5 B5 DO14 14
05 DO5 A6 B6 DO15 15
06 DO6 A7 B7 DO16 16
07 DO7 A8 B8 DO17 17
/ 24 V A9 B9 COM /
