NS-19E430A10/NS-22E430A10 19" 720p LED HDTV/ 22" 1080p LED HDTV
www.insigniaproducts.com
TV components
Package contents
•TV
•Stand
• Remote control
• Remote control batteries (2 AAA)
• Screws for attaching the stand or a wall-mount
bracket
•VGA cable
• Component video cable
•Audio cable
• AC power adapter and power cable
• AC power adapter holder
•Cleaning cloth
•User Guide
• Quick Setup Guide
Cleaning cloth
The cleaning cloth is for cleaning the TV screen
only. Do not use the cleaning cloth to clean any
other part of your TV.

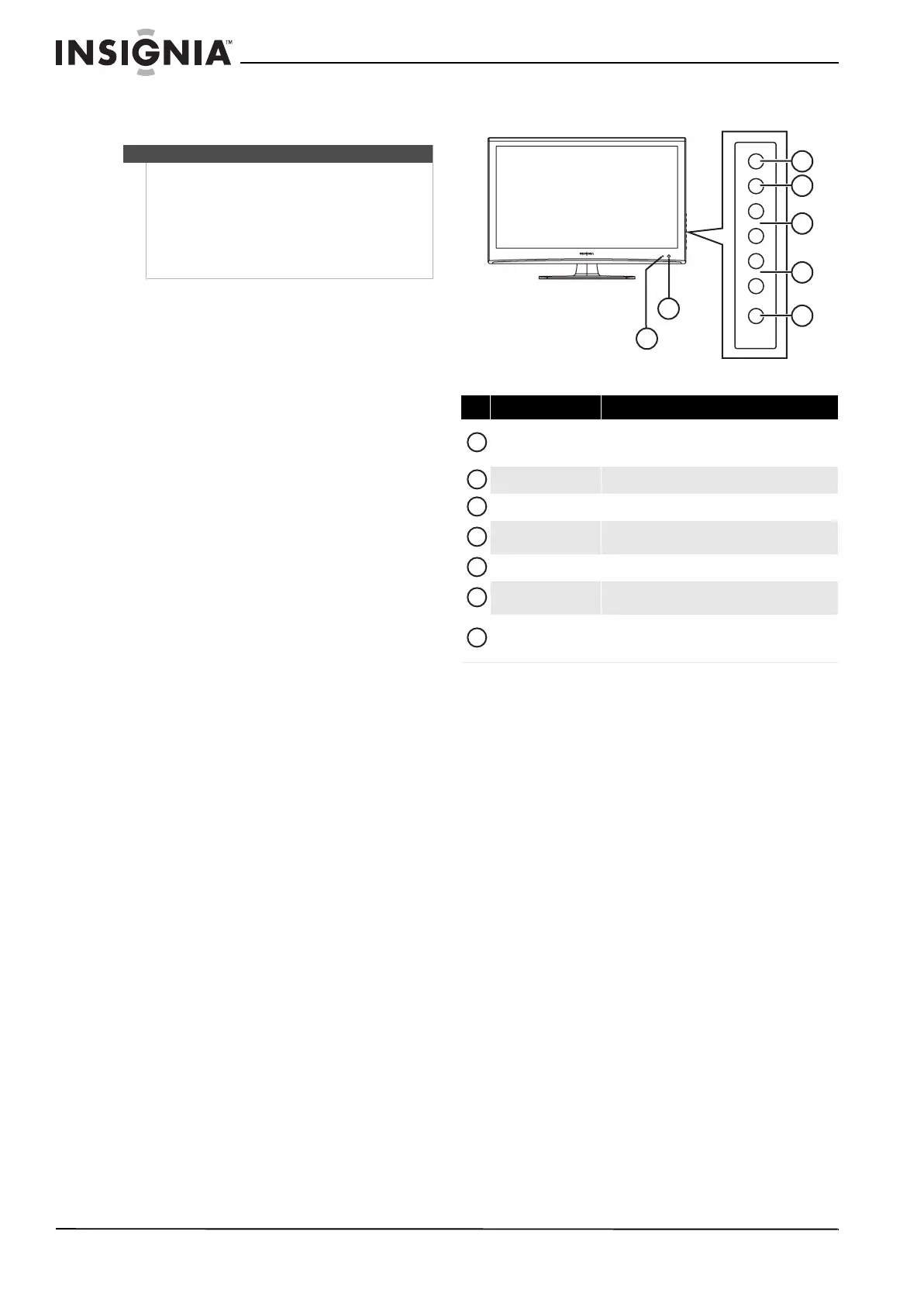

Front
Warning
• If you wall mount your TV, make sure that you
use the AC power adapter holder.
• If you place your TV on a flat surface, such as a
table, you do not have to use the AC power
adapter holder.
• When your TV is turned off, power is still flowing
into it. To completely disconnect power, unplug
the power cord.
# Item Description
Power/Standby
indicator
Lights when your TV is plugged into a power outlet.
When your TV is on, the indicator is blue. When your
TV is in standby mode, the indicator is red.
IR sensor Receives signals from the remote control. Do not block.
MENU Press to open the on-screen menu.
INPUT
Press to select the video input source. You can select
TV, AV, S-Video, Component, HDMI, or VGA.
VOL+/VOL– Press to increase or decrease the volume.
CH+/CH–
Press to go to the next or previous channel in the
channel list.
POWER
Press to turn your TV on or off (standby mode). When
your TV is off, power still flows into it. To disconnect
power, unplug the power cord.
2
1
POWER
VOL–
VOL+
INPUT
MENU
CH–
CH+
3
4
6
7
5
1
2
3
4
5
6
7

Insignia NS-22E430A10 Specifications

General

Display diagonal	22 \
Display brightness	200 cd/m²
Native aspect ratio	16:9
Supported video modes	1080p
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	-
Viewing angle, horizontal	170 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Panel mounting interface	- mm
RMS rated power	- W
Number of speakers	2
AC input frequency	60 Hz
Remote control type	Standard

Weight and Dimensions

Depth (with stand)	152 mm
Height (with stand)	381 mm
Weight (with stand)	5579 g
Depth (without stand)	25 mm
Width (without stand)	508 mm
Height (without stand)	330 mm
Weight (without stand)	5216 g
