NS-19E430A10/NS-22E430A10 19" 720p LED HDTV/ 22" 1080p LED HDTV
www.insigniaproducts.com

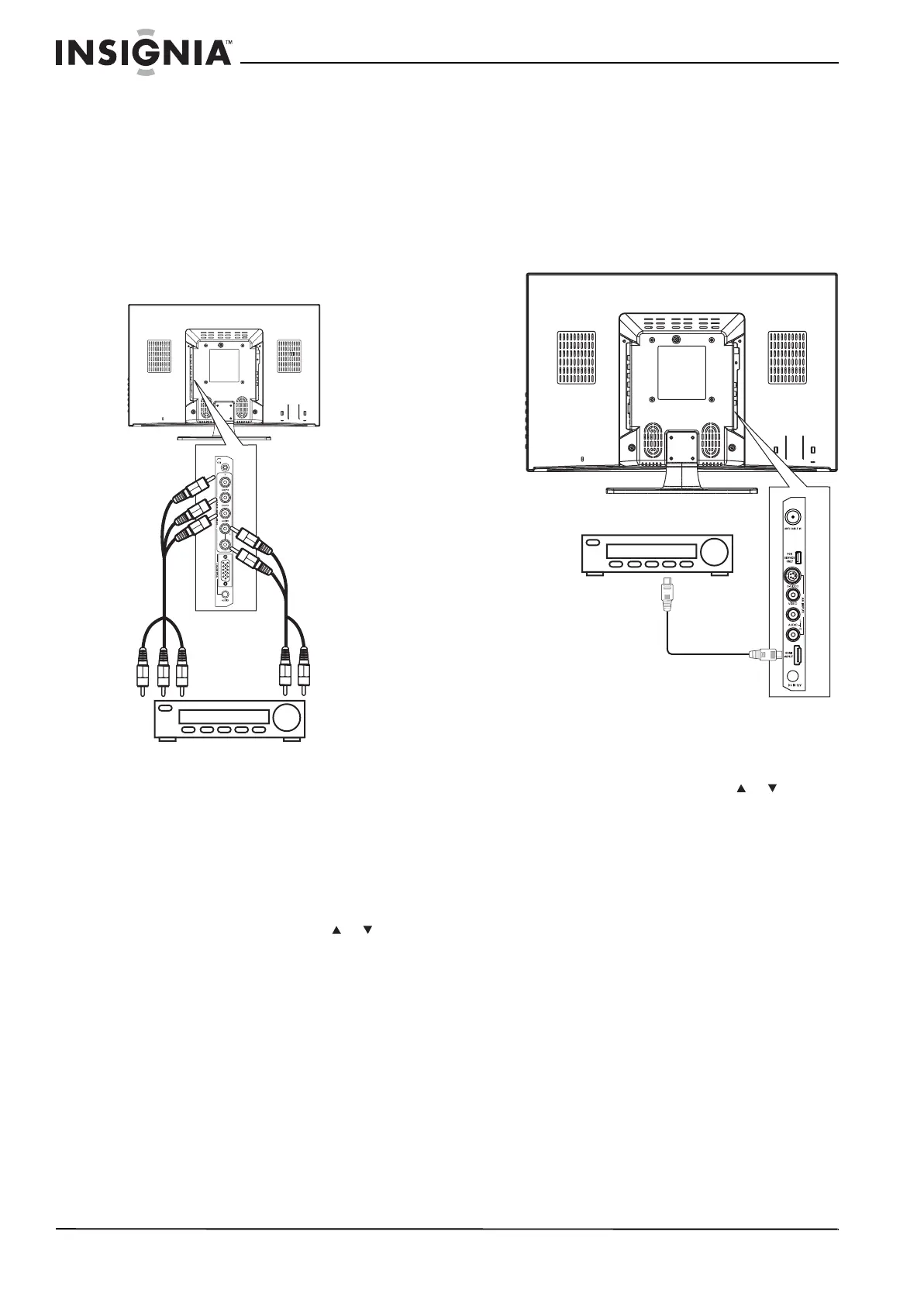

Connecting a component video device
To connect a component video device:
1 Make sure that your TV is turned off and the
power cord is disconnected.
2 Connect one end of the component video cable
to the COMPONENT INPUT (Y, CB/PB, and
CR/PR) jacks on the back of your TV, then
connect the other end of the cable to the
corresponding component video jacks on the
external device.
3 Connect one end of an audio cable to the
COMPONENT INPUT (L/R AUDIO) jacks on the
back of your TV, then connect the other end of
the cable to the corresponding audio jacks on
the external device.
4 Turn on your TV.
5 Press INPUT on the remote control or the side of
your TV to display the input source menu, then
press INPUT repeatedly or press or to select
Component. Press OK/ENTER.
Connecting an HDMI device
To connect an HDMI device:
1 Make sure that your TV is turned off and the
power cord is disconnected.
2 Connect one end of an HDMI cable to the HDMI
INPUT jack on the back of your TV, then connect
the other end of the cable to the HDMI OUT
jack on the external device.
3 Turn on your TV.
4 Press INPUT on the remote control or the side of
your TV to display the input source menu, then
press INPUT repeatedly or press or to select
HDMI. Press OK/ENTER.
A
A
Back of TV
Component video device
Component video cable:
Green=Y
Blue=CB/PB
Red=CR/PR
Audio cable:
White=Left audio
Red=Right audio
Back of TV
HDMI device

Insignia NS-22E430A10 Specifications

General

Display diagonal	22 \
Display brightness	200 cd/m²
Native aspect ratio	16:9
Supported video modes	1080p
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	-
Viewing angle, horizontal	170 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Panel mounting interface	- mm
RMS rated power	- W
Number of speakers	2
AC input frequency	60 Hz
Remote control type	Standard

Weight and Dimensions

Depth (with stand)	152 mm
Height (with stand)	381 mm
Weight (with stand)	5579 g
Depth (without stand)	25 mm
Width (without stand)	508 mm
Height (without stand)	330 mm
Weight (without stand)	5216 g
