Connecting a DVI device
To connect a DVI device:
1 Make sure that your TV is turned off and the
power cord is disconnected.
2 Connect one end of an HDMI-to-DVI cable to the
HDMI INPUT jack on the back of your TV, then
connect the other end of the cable to the
DVI OUT jack on the external device.
3 Connect an audio cable to the VGA AUDIO
INPUT jack on the back of your TV, then connect
the other end of the cable into the AUDIO OUT
jack on the DVI device.
4 Turn on your TV.
5 Press INPUT on the remote control or the side of
your TV to display the input source menu, then
press INPUT repeatedly or press or to select
HDMI. Press OK/ENTER.
Connecting a computer using VGA
To connect a computer using VGA:
1 Make sure that your TV is turned off and the
power cord is disconnected.
2 Connect a VGA cable to the VGA INPUT jack on
the back of your TV, then plug the other end of
the cable into the VGA jack on the computer.
3 Connect an audio cable to the
VGA AUDIO INPUT jack on the back of your TV,
then connect the other end of the cable into the
LINE OUT jack on the computer.
4 Turn on your TV.
5 Press INPUT on the remote control or the side of
your TV to display the input source menu, then
press INPUT repeatedly or press or to select
VGA. Press OK/ENTER.
Note
An HDMI-to-DVI cable transfers video only. Separate
analog audio cables are required.

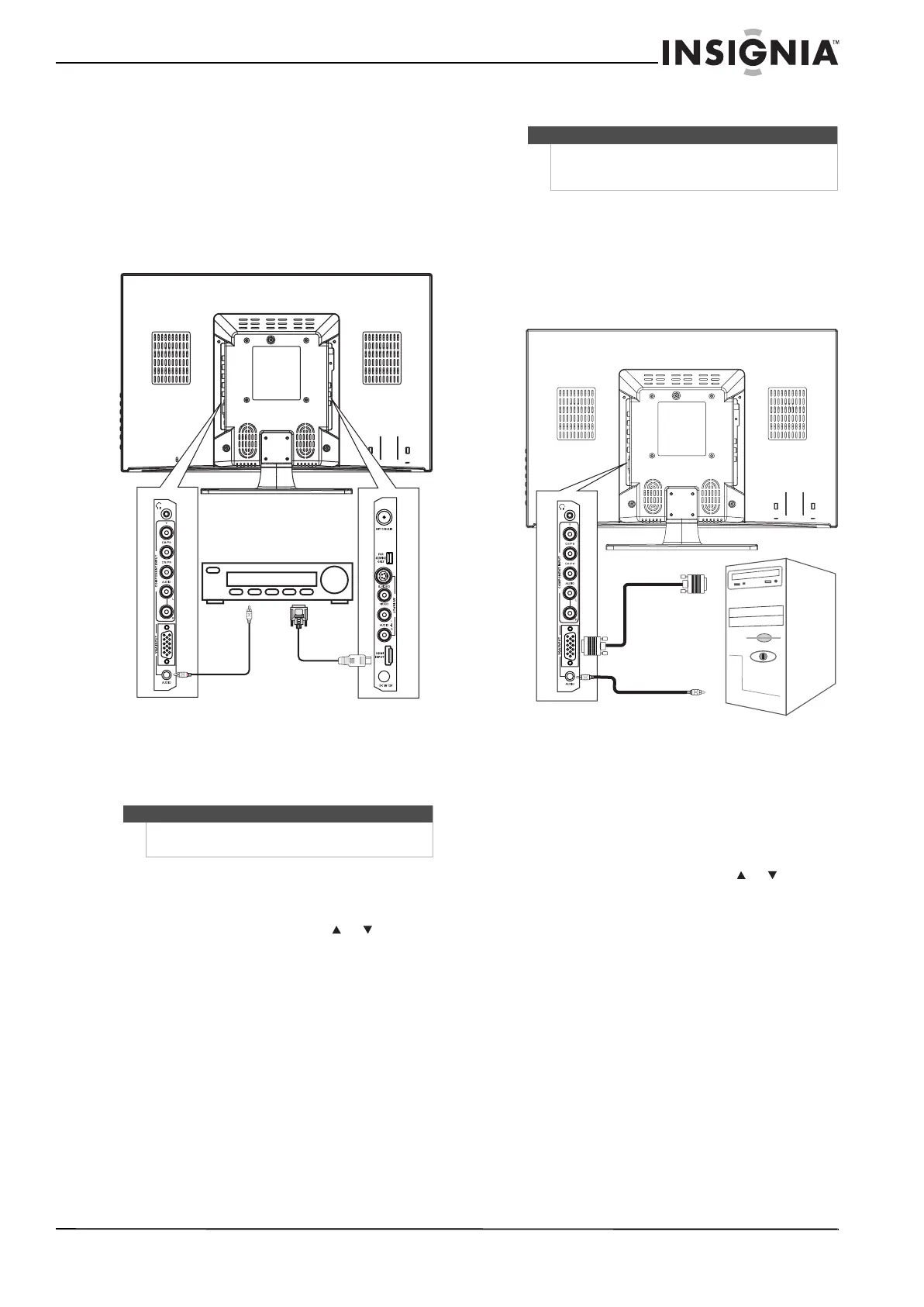

DVI device
Back of TV
HDMI-to-DVI
cable
Audio cable
Note
You can also connect a computer using an HDMI
connection. For more information, see “Connecting a
computer using HDMI or DVI” on page 14.
O
O
Back of TV

Insignia NS-22E430A10 Specifications

General

Display diagonal	22 \
Display brightness	200 cd/m²
Native aspect ratio	16:9
Supported video modes	1080p
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	-
Viewing angle, horizontal	170 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Panel mounting interface	- mm
RMS rated power	- W
Number of speakers	2
AC input frequency	60 Hz
Remote control type	Standard

Weight and Dimensions

Depth (with stand)	152 mm
Height (with stand)	381 mm
Weight (with stand)	5579 g
Depth (without stand)	25 mm
Width (without stand)	508 mm
Height (without stand)	330 mm
Weight (without stand)	5216 g
