Intel Desktop Boards D815EEA2, D815EPEA2, D815EFV, and D815EPFV Product Guide
82
Power and Hardware Control Connectors

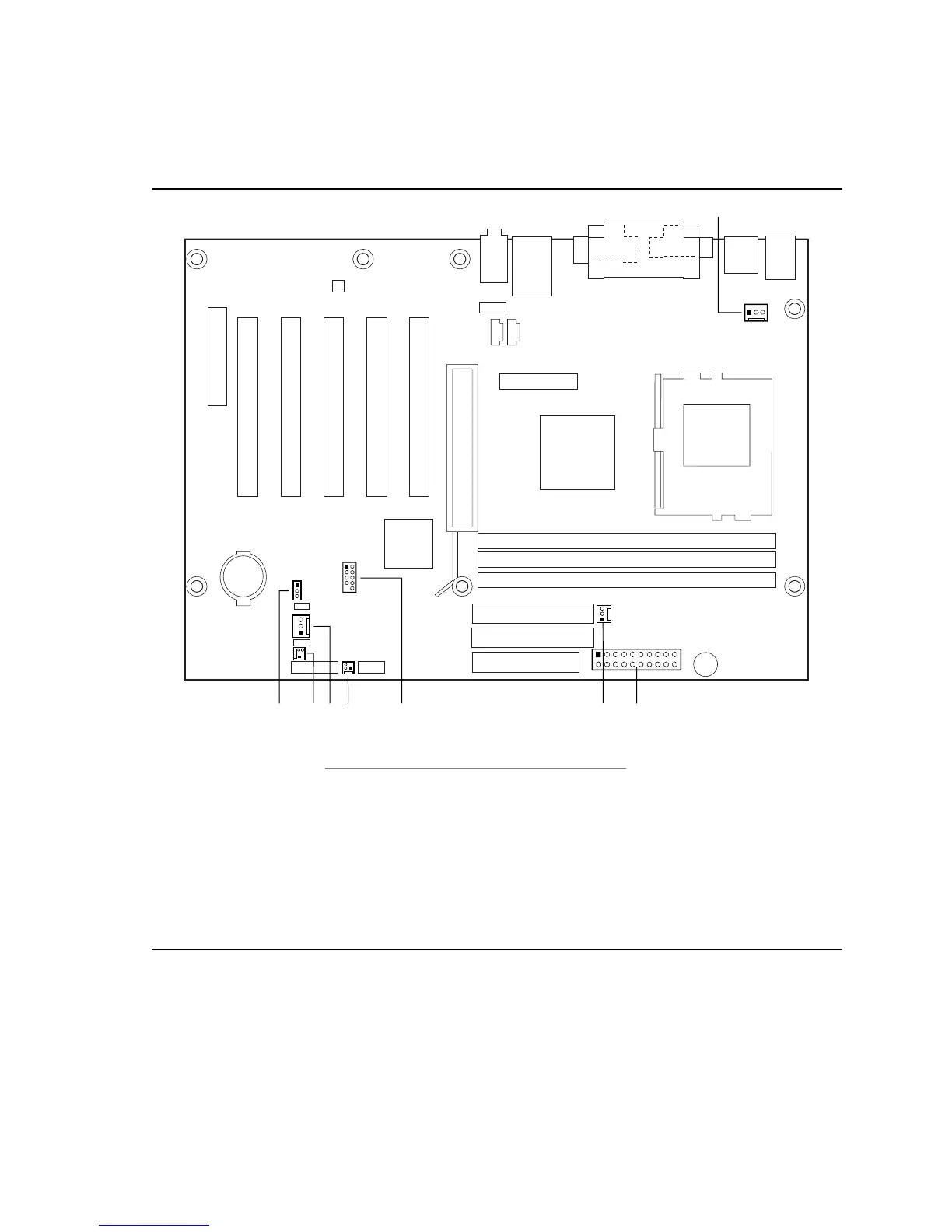

Figure 30 shows the power and hardware connectors.
OM11631
H BF D
A
1
1
1
11
10
20
1
2
10
7
1
G E
C
Item Description
A Processor fan (fan 1)
B Power
C Chassis fan (fan 3)
D Front panel USB (optional)
E SCSI LED
F Chassis fan (fan 2)
G Chassis intrusion
H Wake on LAN technology (optional)
Figure 30. Power and Hardware Control Connectors (the D815EEA2 Board Is Shown)
