Technical Reference
65
2.8.3
External
I/O Connectors

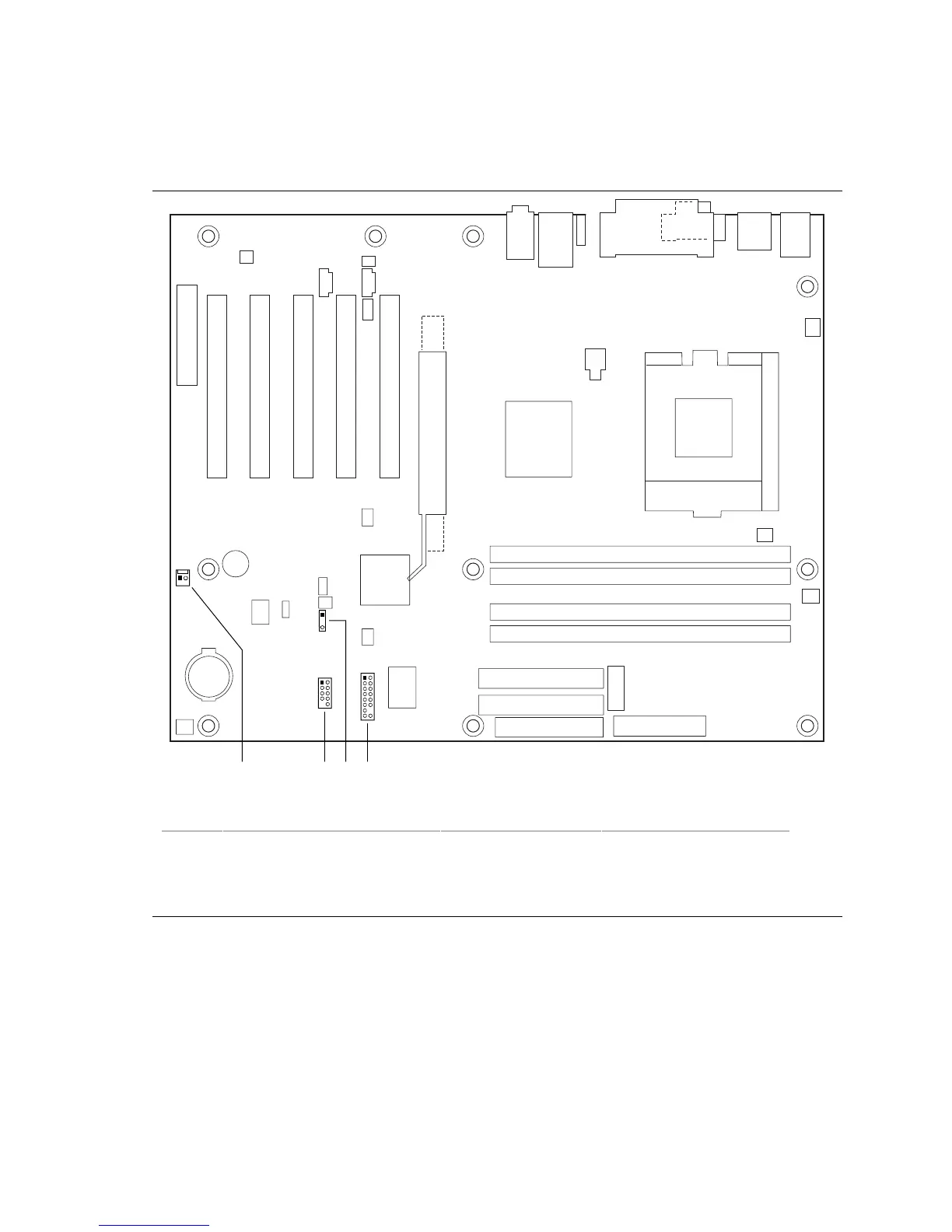

Figure 12 shows the locations of the external I/O connectors.
OM10447
B
A
1
10
7
2
1
15
2
1
16
1
D
C
Item
Description
Reference Designator
For more information see:
A
SC
SI LED
J7A2
Table 43
B
Front panel U
SB
J9C1
Table 44
C
Auxiliary
front panel power LED
J8C3
Table 45
D
Front panel
J9D2
Table 46
Figure 12. External I/O Connectors
64
66
