Technical Reference
69
2.9 Jumper Blocks
CAUTION
Do not move any jumpers with the power on. Always turn off the power and unplug the power
cord from the computer before changing a jumper setting. Otherwise, the board could be
damaged.

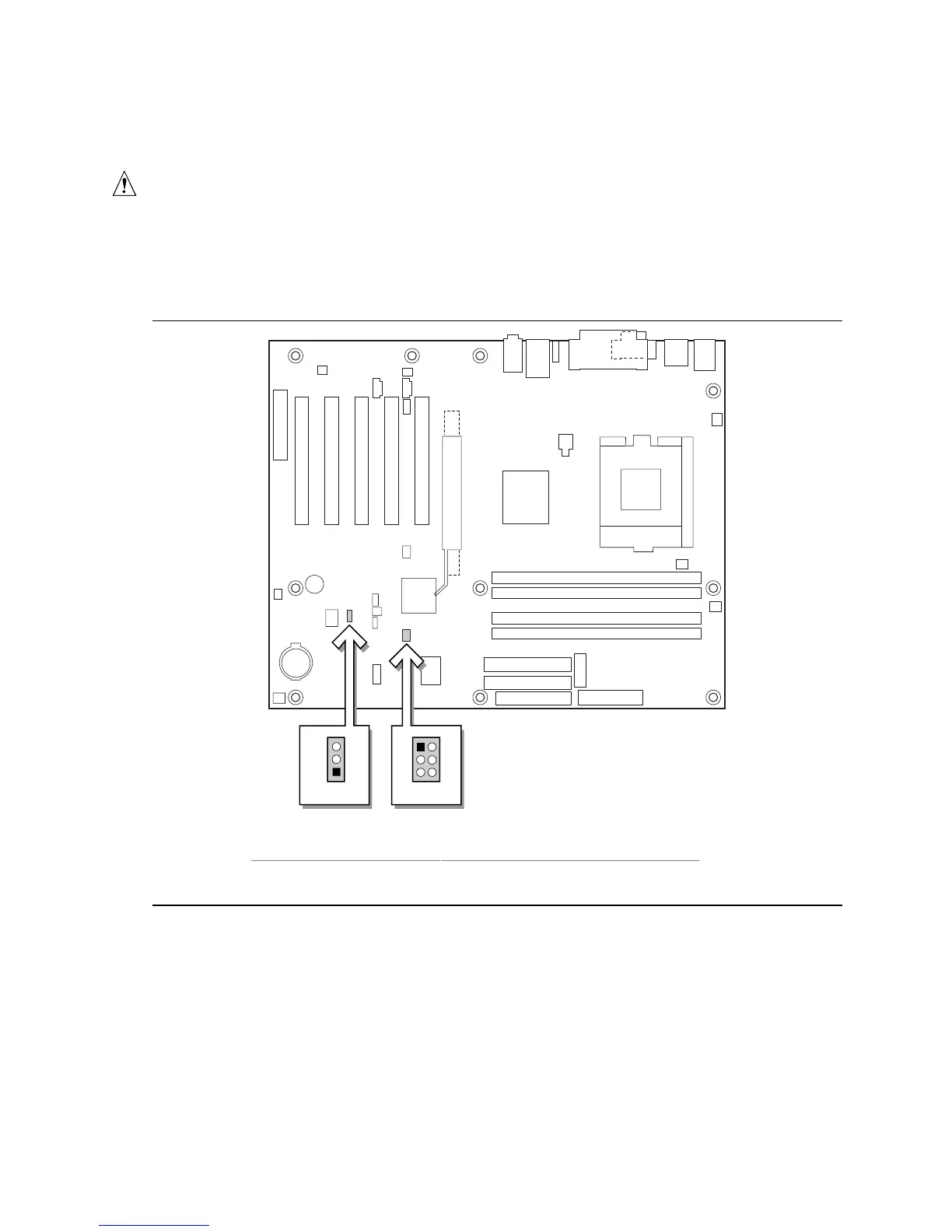

The board has two jumper blocks. Figure 13 shows the location of the jumper blocks.
OM10448
4
1
6
3
J8D1
3
1
J8C2
Reference Designator Description
J8C2 BIOS configuration jumper block
J8D1 USB front panel / CNR jumper block
Figure 13. Location of the Jumper Blocks
