Case Temperature Reference Metrology
100 Thermal and Mechanical Design Guidelines

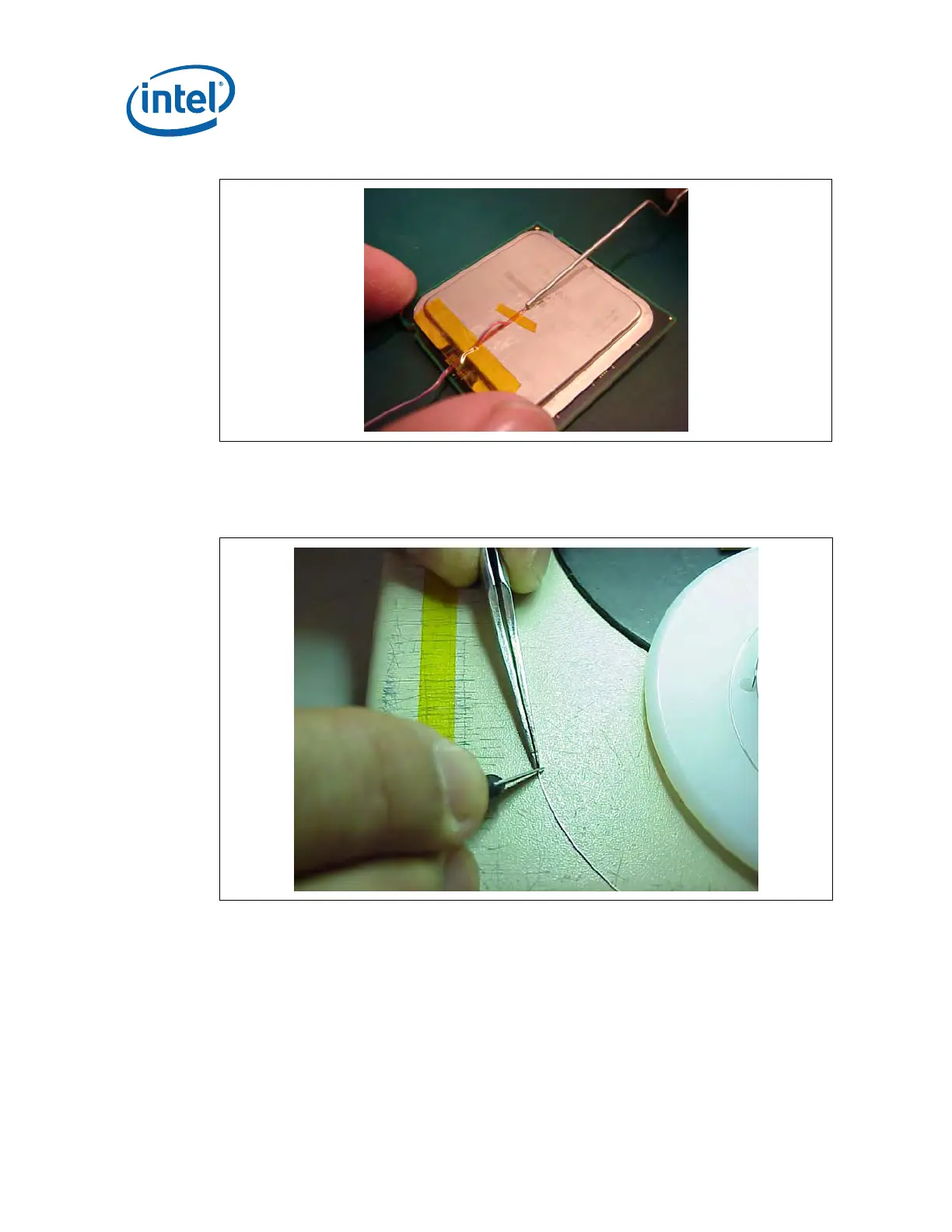

Figure 7-24. Applying Flux to the Thermocouple Bead
21. Cut two small pieces of solder 1/16 inch (0.065 inch / 1.5 mm) from the roll using
tweezers to hold the solder while cutting with a fine blade(see
Figure 7-25)
Figure
7-25. Cutting Solder
22. Place the two pieces of solder in parallel, directly over the thermocouple bead (see
Figure 7-26)
