Intel E2180 - Pentium Dual-Core 2.00GHz 800MHz 1MB Socket 775 CPU User Manual

Case Temperature Reference Metrology
104 Thermal and Mechanical Design Guidelines
31. Lift the heater block and magnified lens, using tweezers quickly rotate the device
90 degrees clockwise. Using the back of the tweezers press down on the solder
this will force out the excess solder

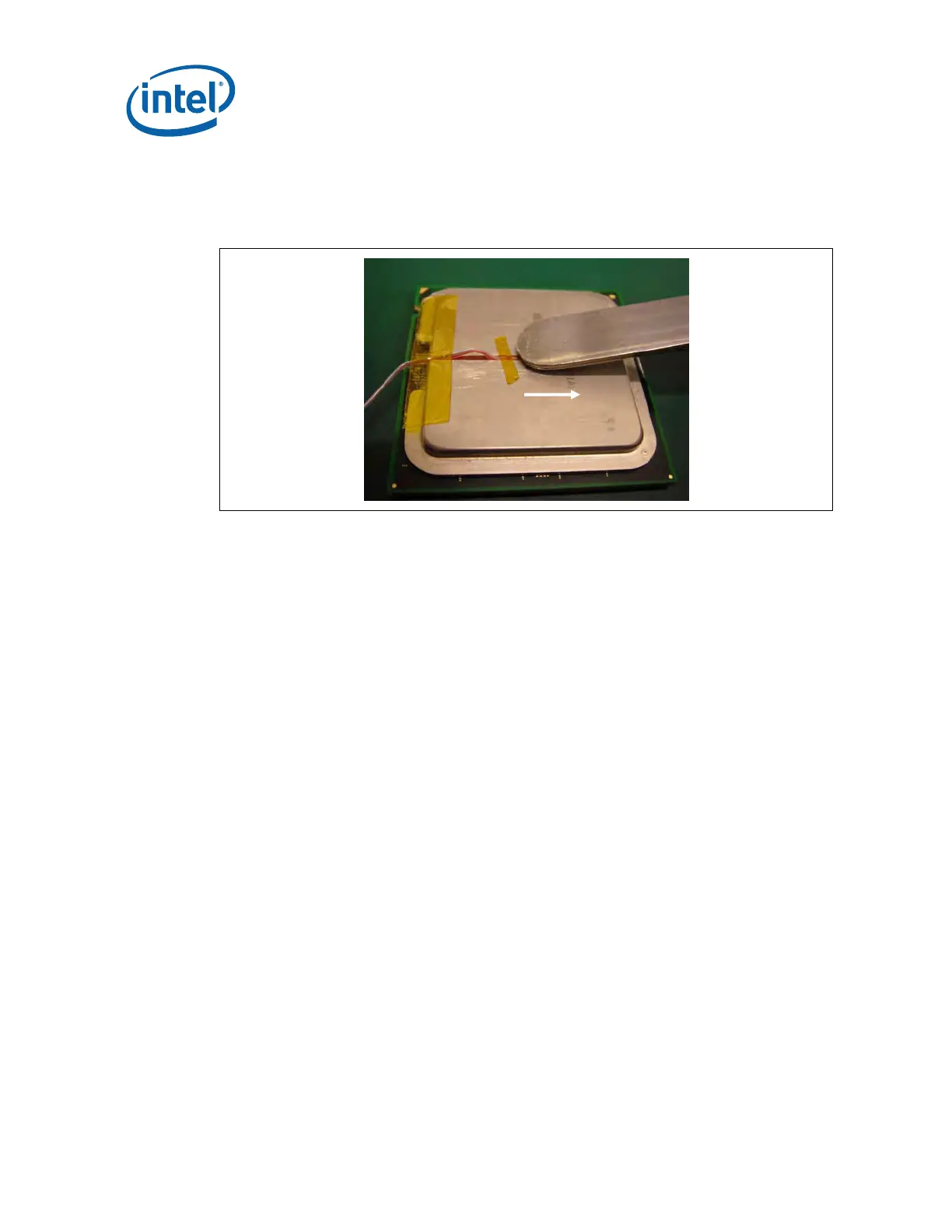

Figure
7-30. Removing Excess Solder
32. Allow the device to cool down. Blowing compressed air on the device can
accelerate the cooling time. Monitor the device IHS temperature with a handheld
meter until it drops below 50 °C before moving it to the microscope for the final
steps

Intel E2180 - Pentium Dual-Core 2.00GHz 800MHz 1MB Socket 775 CPU Specifications

General

Brand	Intel
Model	E2180 - Pentium Dual-Core 2.00GHz 800MHz 1MB Socket 775 CPU
Category	Computer Hardware
Language	English
