Case Temperature Reference Metrology
90 Thermal and Mechanical Design Guidelines
Item Description Part Number
Miscellaneous Hardware
Solder Indium Corp. of America
Alloy 57BI / 42SN / 1AG 0.010 Diameter
52124
Flux Indium Corp. of America 5RMA
Loctite* 498
Adhesive
Super glue w/thermal characteristics 49850
Adhesive
Accelerator
Loctite* 7452 for fast glue curing 18490
Kapton* Tape For holding thermocouple in place Not Available
Thermocouple Omega *,36 gauge, “T” Type
(see note 2 for ordering information)
OSK2K1280/5SR
TC-TT-T-36-72
Calibration and Control
Ice Point Cell Omega*, stable 0 ºC temperature source for
calibration and offset
TRCIII
Hot Point Cell Omega *, temperature source to control and
understand meter slope gain
CL950-A-110
NOTES:
1. The Solder Station consisting of the Heater Block, Heater, Press and Transformer are
available from Jemelco Engineering 480-804-9514
2. This part number is a custom part with the specified insulation trimming and packaging
requirements necessary for quality thermocouple attachment, See
Figure 7-11. Order
from Omega Anthony Alvarez, Direct phone (203) 359-7671, Direct fax (203) 968-
7142, E-Mail: aalvarez@omega.com

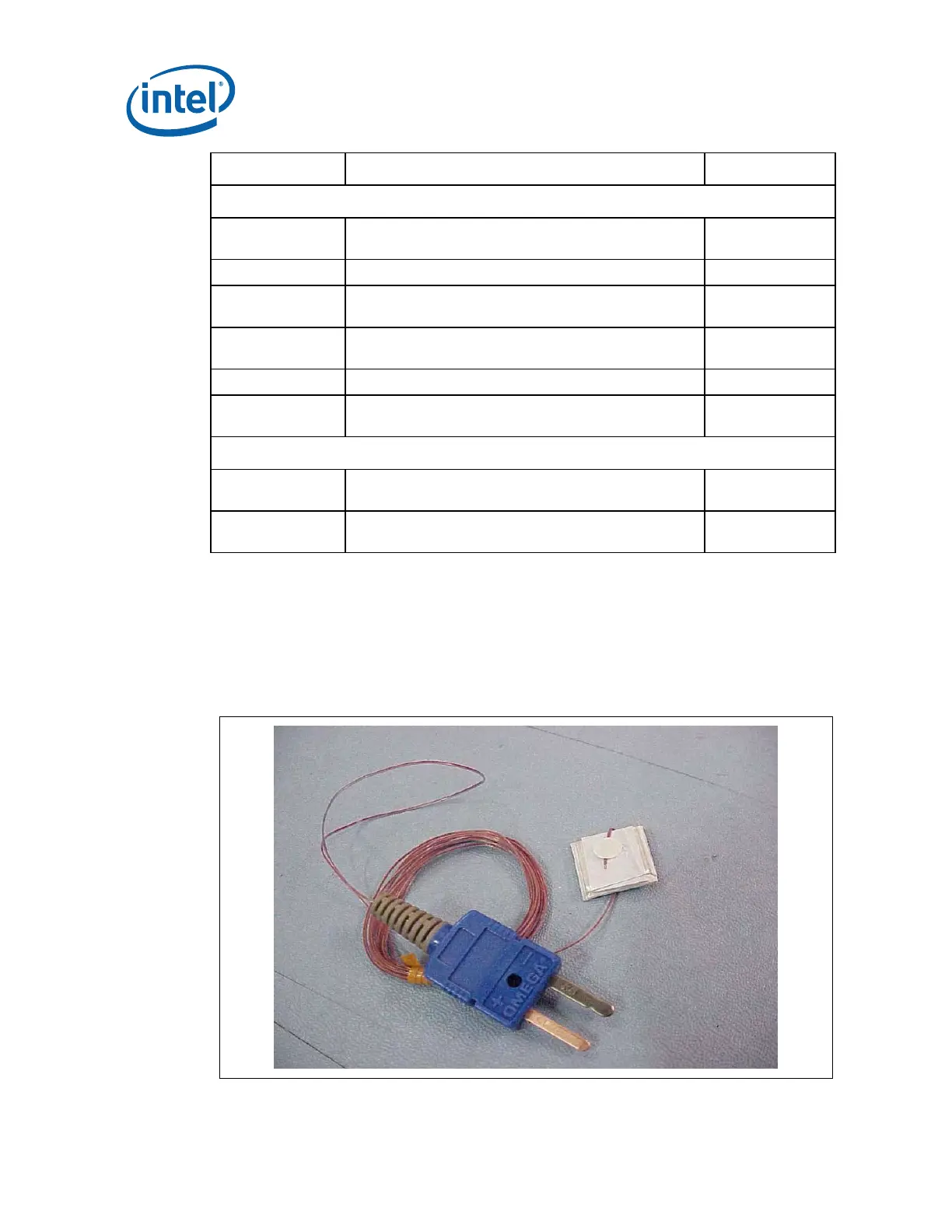

Figure 7-11. Omega Thermocouple
