Intel® Server Board S2600CW Family TPS Intel® Server Board S2600CW Functional Architecture
Revision 2.4
This option is grayed out as unavailable and set to CPU Socket 1 unless there is a
processor installed on CPU Socket 2 and a video card installed in a PCIe slot connected
to CPU Socket 2. When this option is active and is set to CPU Socket 2, then both
Onboard Video and Dual Monitor Video are set to Disabled and grayed out as
unavailable. This is because the Onboard Video is a PCIe device connected to CPU
Socket 1, and is unavailable when the Legacy VGA Socket is set to Socket 2.
3.4.13 Trusted Platform Module
The Trusted Platform Module (TPM) provides platform security functions such as hash,
encryption, and secure storage, and works in conjunction with the processor’s TXT
functionality.

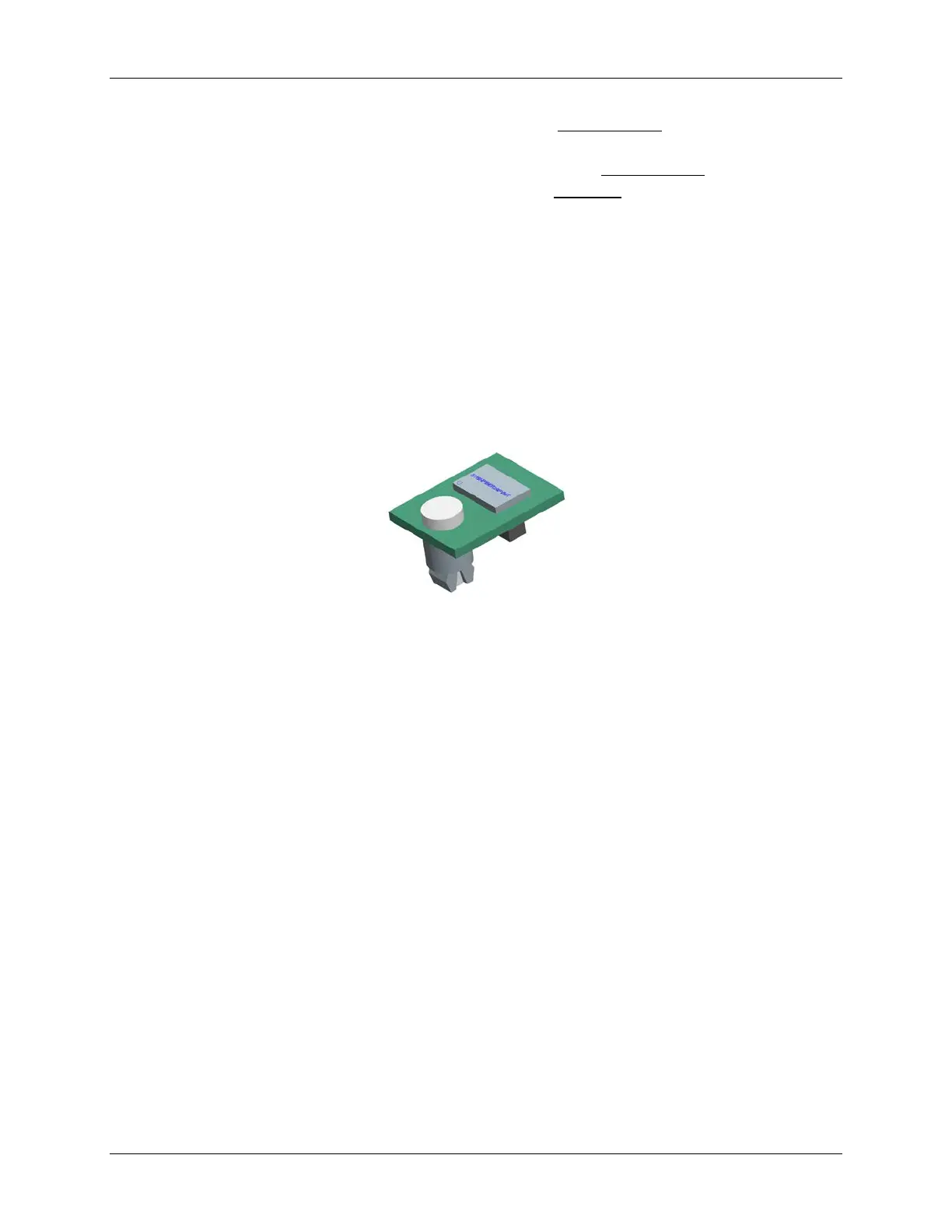

The TPM is a small board that provides hardware level security for the server and resides on
the LPC bus.
3.4.14 Network Support
The Intel® Server Board S2600CW2R/S2600CW2SR provides 1Gb network connectivity with
the Intel® I350 dual port controller, and the Intel® Server Board S2600CWTR/S2600CWTSR
provides 10Gb network connectivity with the Intel® X540 dual port controller. The controllers
are fully integrated MAC/PHY in a single low power package that supports dual-port 1G/10G
Ethernet designs.
The board also provides a 1G RJ45 Dedicated Management NIC port (DMN) for the Intel®
Remote Management Module (RMM4 Lite). The DMN is active with or without the RMM4 Lite
key installed.
