Server Board S5500BC User’s Guide

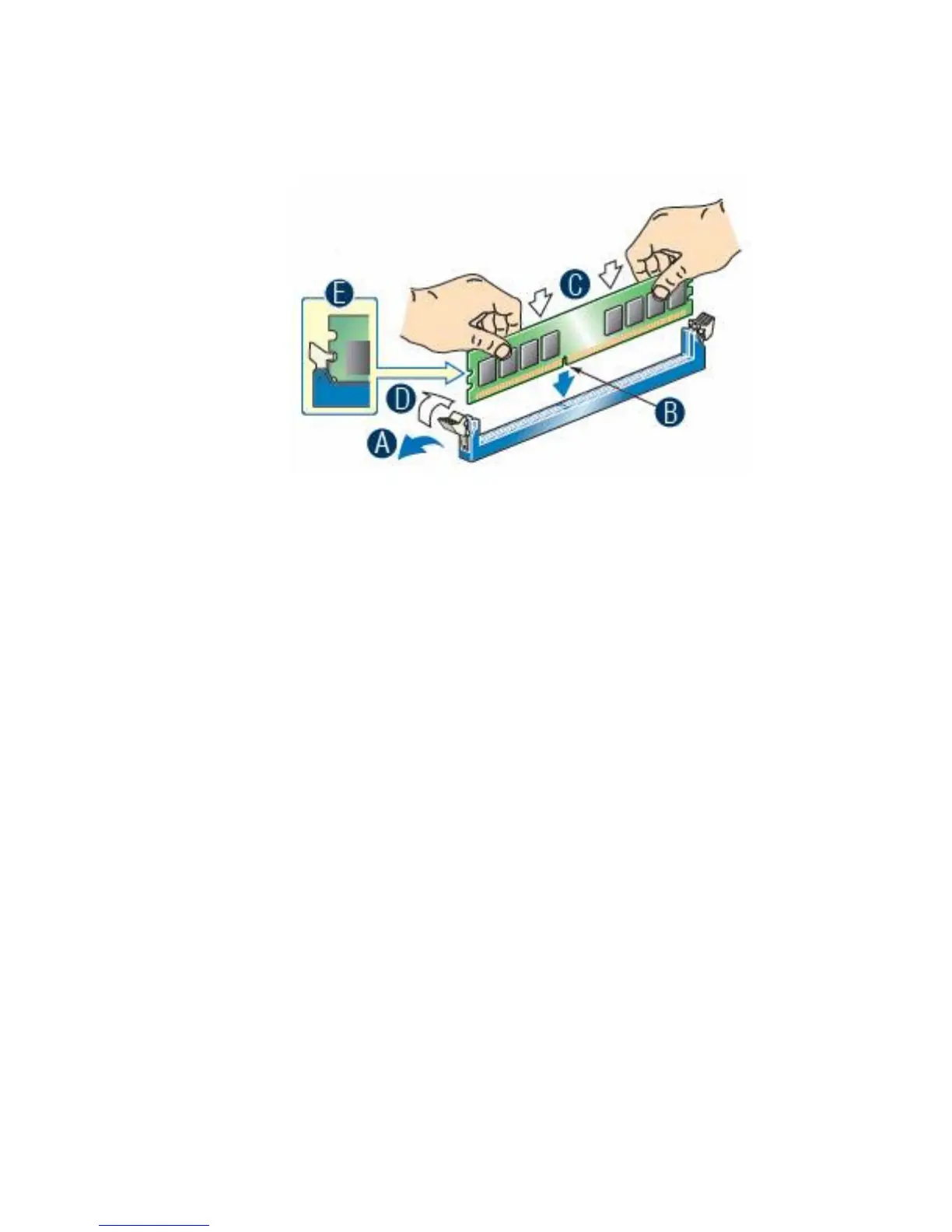

Figure 7. Installing Memory
5. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position (see letter “A” in Figure 7).
6. Holding the DIMM by the edges, remove it from its anti-static package.
7. Position the DIMM above the socket. Align the two small notches in the bottom
edge of the DIMM with the keys in the socket (see letter “B” in Figure 7).
8. Insert the bottom edge of the DIMM into the socket (see letter “C” in Figure 7).
9. When the DIMM is inserted, push down on the top edge of the DIMM until the
retaining clips snap into place (see letter “D” in Figure 7). Make sure the clips are
firmly in place (see letter “E” in Figure 7).
10. Replace the server’s cover and reconnect the AC power cord.
Removing DIMMs
To remove a DIMM, follow these steps:
1. Observe the safety and ESD precautions at the beginning of this book. See “Safety
Information” for more information.
2. Turn off all peripheral devices connected to the server and turn off the server.
3. Remove the AC power cord from the server.
4. Remove the server's cover.
5. Gently spread the retaining clips at each end of the socket. The DIMM lifts from
the socket.
6. Holding the DIMM by the edges, lift it from the socket, and store it in an anti-static
package.
