9. Align the processor cutouts to match the two socket pins, and then insert the

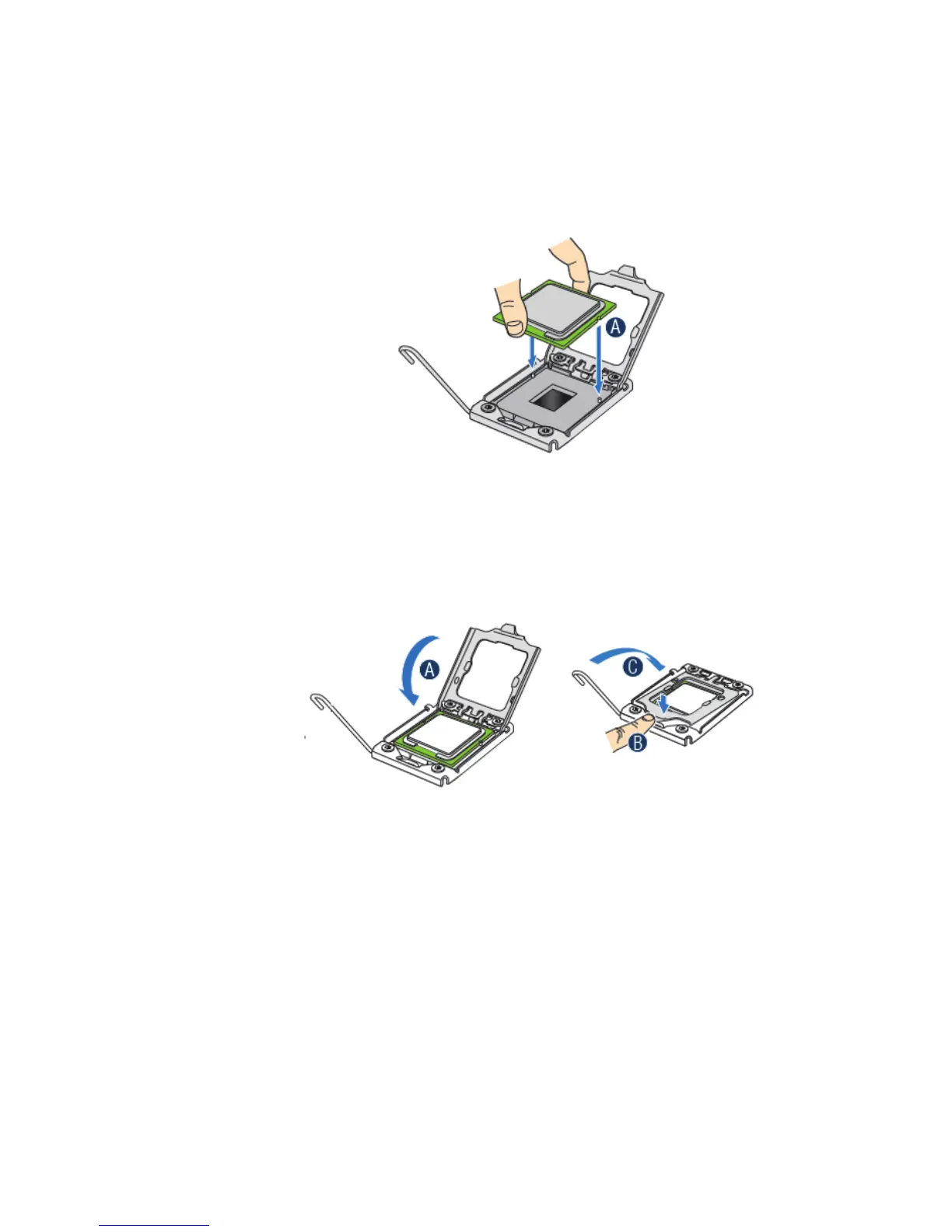

processor into the socket as shown in Figure 12.
Figure 12. Installing the Processor
10. Close the load plate (see the letter “A” in Figure 13), close the socket lever and
ensure the load plate tab engages under the socket lever when fully closed. (See
letter “B” and “C” in Figure 13)
Figure 13. Close the Load Plate and Socket Lever
Note: Make sure the alignment triangle mark and the alignment triangle cutout align correctly.
To assist in package orientation and alignment with the socket:
Installing the Retention Mechanism(s) and Heat Sink(s)
1. If a protective film covers the thermal interface material (TIM) on the underside of
the heat sink, remove the protective film.
2. Align heat sink fins to the front and back of the chassis for correct airflow. Airflow
goes from front-to-back of chassis.
3. Each heat sink has four captive fasteners and should be tightened as shown.
