Server Board S5500BC User’s Guide 29
1. Power down and unplug the system from the AC power source.
2. Move the recovery jumper at JIA1 from the spare location at pins 2 and 3 to cover
pins 1 and 2. Refer to Figure 18.

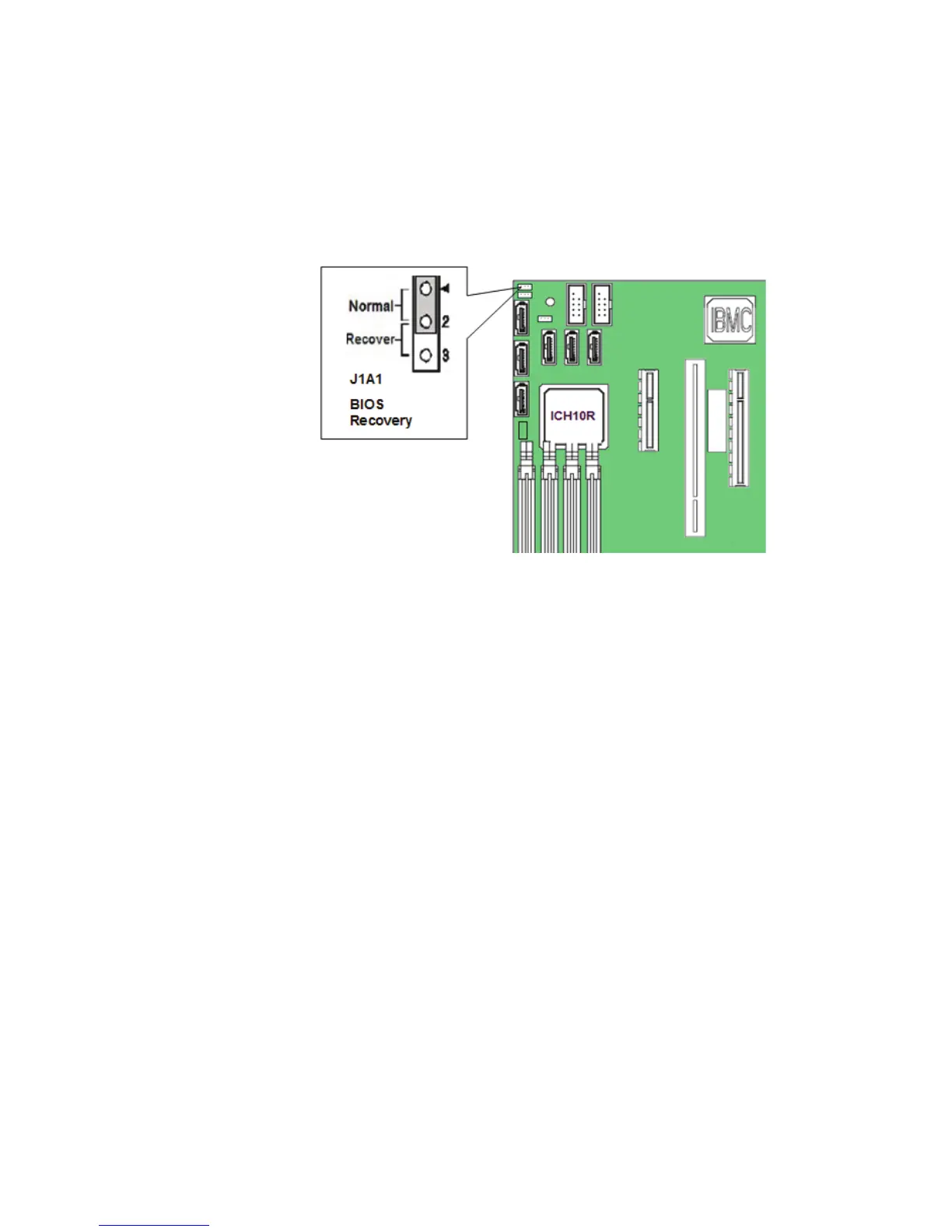

Figure 18. BIOS Recovery Jumper
3. Insert the bootable BIOS Recovery media containing the new BIOS image files.
You can accomplish a BIOS recovery from the SATA CD and USB Mass Storage
device. Please not that recovery from a USB floppy is not supported on this
platform. The recovery media must contain the following files under the root
directory:
• FVMAIN.FV
• UEFI iFlash32
• *Rec.CAP
• Startup.nsh (update accordingly to use proper *Rec.CAP file)
4. Plug the system into the AC power source and power it on.
5. The BIOS POST screen will appear, displaying the progress, and the system
automatically boots to the EFI SHELL.
6. Remove the recovery media.
7. Power down and unplug the system from the AC power source.
8. Move the BIOS recovery jumper at J1A1 back to the original position, covering
storage pins 1 and 2.
9. Plug the system into the AC power source and power it up to confirm the recovery
was successful.
10. Do NOT interrupt the BIOS POST during the first boot.
