20 Intel
®
Server Board S5500BC User’s Guide
Installing a PCI Add-In Card
Peripherals and add-in cards are not included in your system and you must purchase them
separately. The riser card at PCI slot 6 of the board supports a low-profile half-length PCI
Express* add-in card. Refer to the “Intel
®
SR1630BC System User Guide” for more
detailed information on how to install a PCI card.
Installing a PCI Add-In Card
Note: You must attach add-in cards to a riser card when the riser card is removed from the
chassis.
1. Remove the screw that attaches the PCI bracket shield to the rear of the chassis to
remove the shield. Retain the screw.

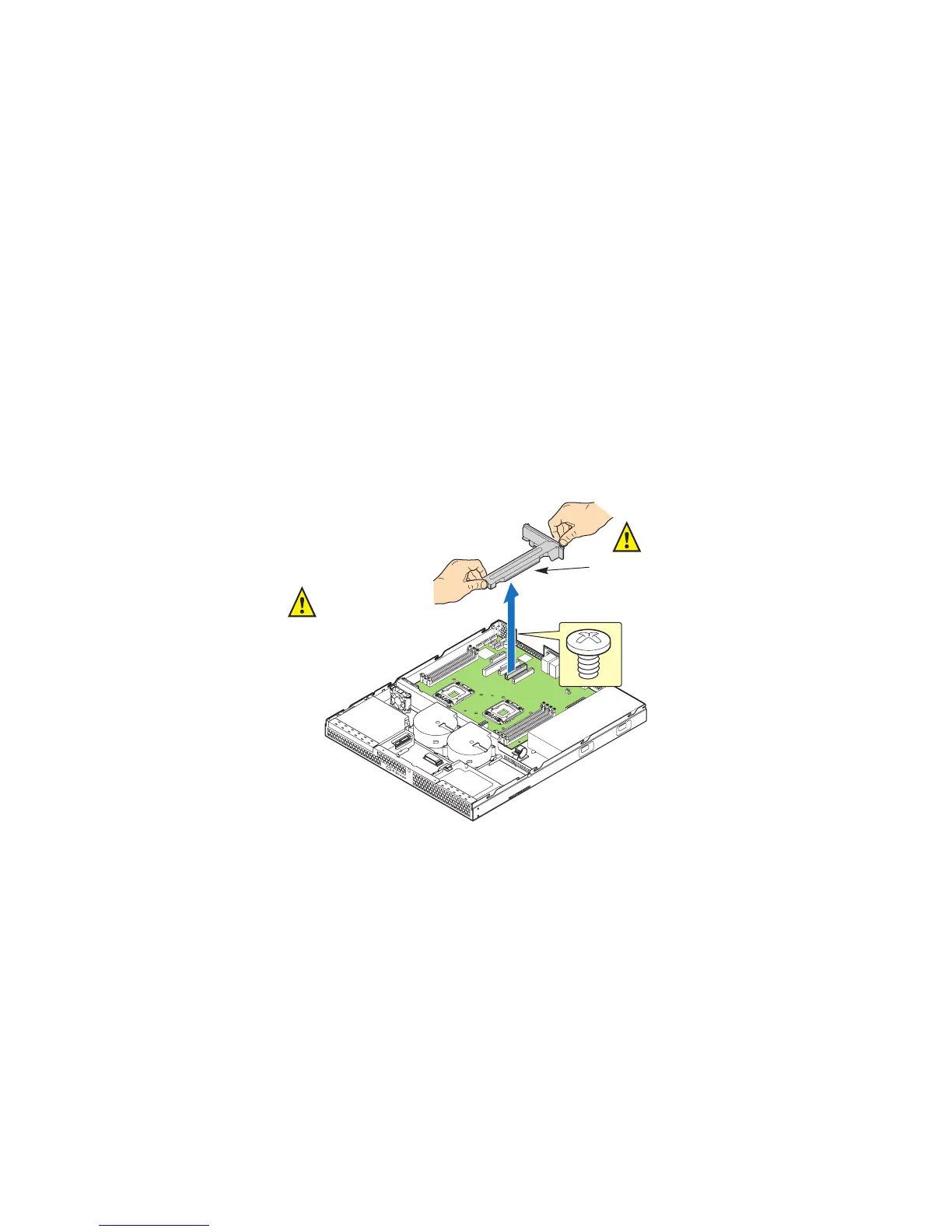

Figure 15. Removing the PCI Riser Assembly from the Server System
2. Insert the PCI card edge connector in the slot on the PCI riser.
Riser Card
Connector
CAUTION:
Place the riser assembly
upsidedown to avoid
damage to the riser
card connector.
AF003103
To Next Page
