6.6 Replacing the front axle (4-wheel version)
CAUTION: Danger of accidents!
Accidents may result from standing the chassis upright on its end!
• Secure the chassis against falling over!
WARNING!
Danger of damage to the scooter! The plastic cover can be damaged if you attempt to lift
the vehicle by its cover!
• Only lift the vehicle by the chassis.
Note
Pay attention to the positions of small parts such as screws and washers during disassembly. Put
small parts aside in such a way that they can be re-fitted in the correct order.
Requirements:
• 17 mm spanner
• 19 mm spanner
From the User Guide
• Remove the seat.
• Remove the batteries.
• Remove the drive unit.
Further tasks:

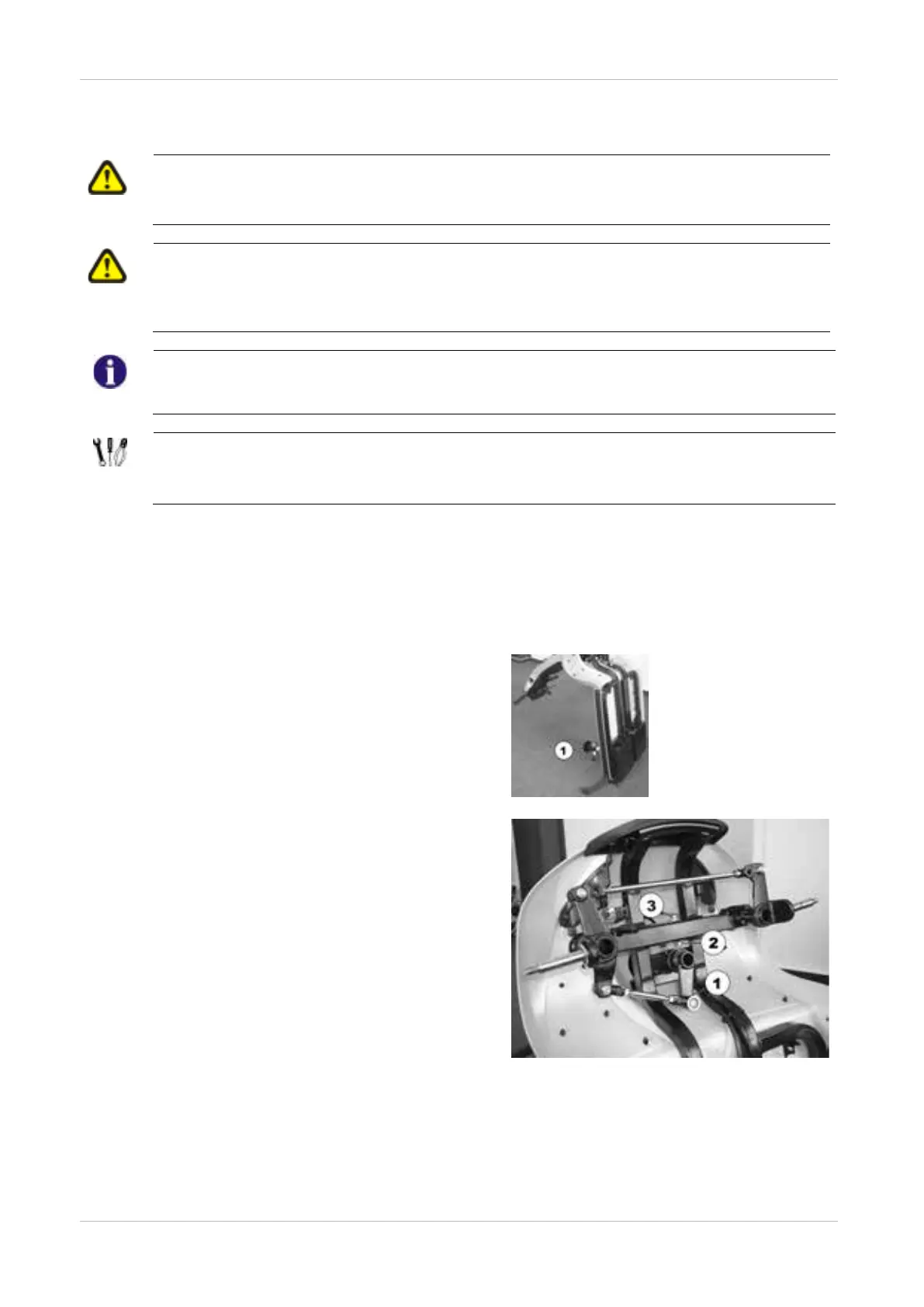

• Place the chassis upright on its seat adapter
(1).
• Secure the chassis against falling over.
• Remove the wheel (1).
(see chapter 6.3)
• Loosen and remove the nut on the track rod
(1) (see note below).
• Remove the track rod from the steering
knuckle.
• Loosen and remove the nut of the axle
suspension (2).
Counter the axle suspension bolt (3) with a
spanner so it cannot rotate while performing
this task.
• Pull the bolt (3) out and remove the axle
assembly.
