SERVICE MANUAL
Invacare
®
- Leo
38

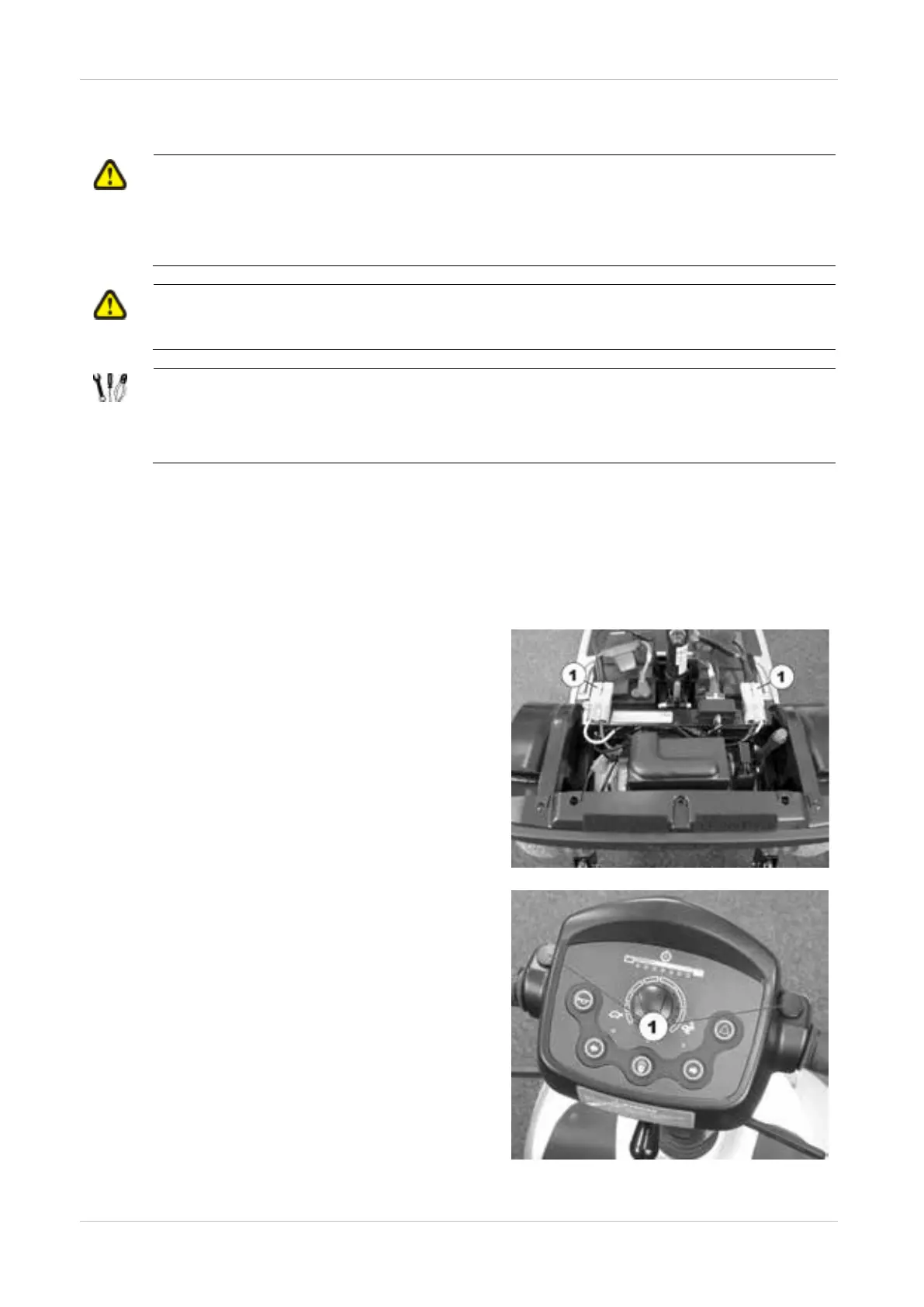

6.10 Replacing the potentiometer
ATTENTION!
Burn and scald hazard if power cable is short-circuited!
• Turn off the power completely before removing any power supply components of the electric
vehicle! Therefore take out the batteries.
• Avoid a bridging of the contacts during measurements on live electrical components!
CAUTION! Risk of accidents!
• The new potentiometer must be set to the middle position before inserting. Potentiometers
which are not in the middle position can result in dangerous driving situations!
Requirements:
• Phillips screwdriver
• Allen key – open-ended spanner 2 mm
• Digital multimeter
From the operating manual:
• Remove the seat
• Remove the battery and motor compartment
cover.
• Disconnect battery plug.
• Remove battery plug (1).
• Remove plugs from rear mirror fixing (1) or
rear mirror, depending on fittings.
