SECTION 6—OPERATION OF THE POWERED SCOOTER
Zoom 220 28 Part No. 1125053
1. To engage - Push down the brake release lever.
2. To disengage - Pull up the brake release lever.

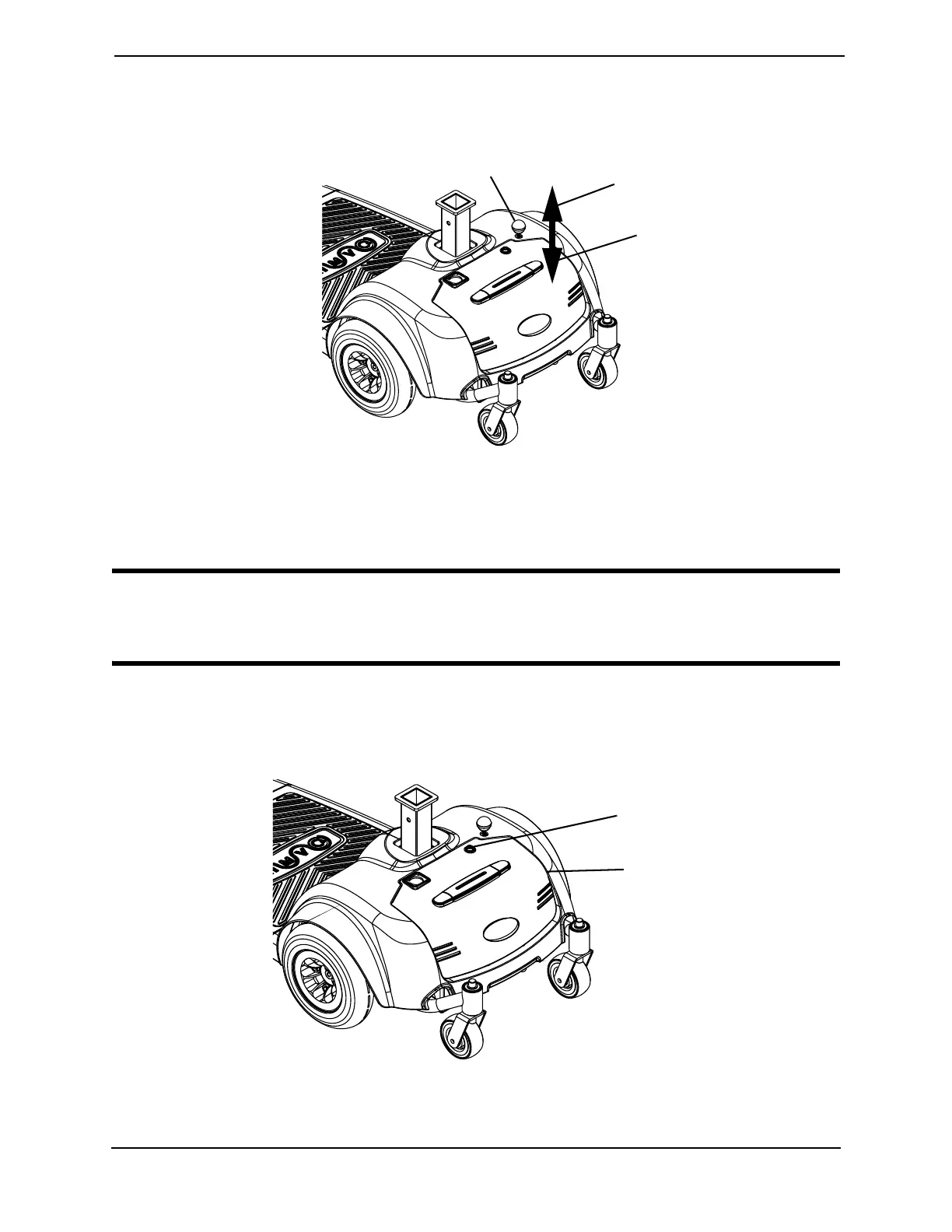

FIGURE 6.2 Engaging/Disengaging the Brake Release Lever
Resetting the Circuit Breaker
 WARNING
NEVER defeat or bypass the circuit breaker. ONLY replace with a circuit breaker of
the same rating.
NOTE: Key must be removed from ignition before resetting circuit breaker.
NOTE: For this procedure, refer to FIGURE 6.3.
1. To reset - press the circuit breaker button located on the battery box.
FIGURE 6.3 Resetting the Circuit Breaker
Brake Release Lever
Push Down to Engage
Pull Up to Disengage
NOTE: Seat not shown for clarity.
Circuit
Breaker
Battery Box
