Invacare Zoom 220 - Deluxe Seat Removal and Installation

SECTION 7—SEAT AND ARMS
Part No. 1125053 31 Zoom 220
Removing/Installing the Deluxe Seat
 WARNING
Before use, ensure that the seat is in the locked position. The seat lever MUST be
pulled up to the 90° position to allow the seat to drop into the locked position. Oth-
erwise, a fall from the scooter could occur causing bodily injury and/or damage to
the scooter.
NOTE: For this procedure, refer to FIGURE 7.3.
Removing
1. Fold down seat back.
2. Pull up the seat lock lever to 90°.
3. Lift the seat assembly up and away from the seat post.
Installing
1. Lower the seat assembly onto the seat post.
2. Pull up the seat lock lever to 90° to allow the seat to drop into the locked position.
3. Lift up on seat assembly to ensure the seat is secure.

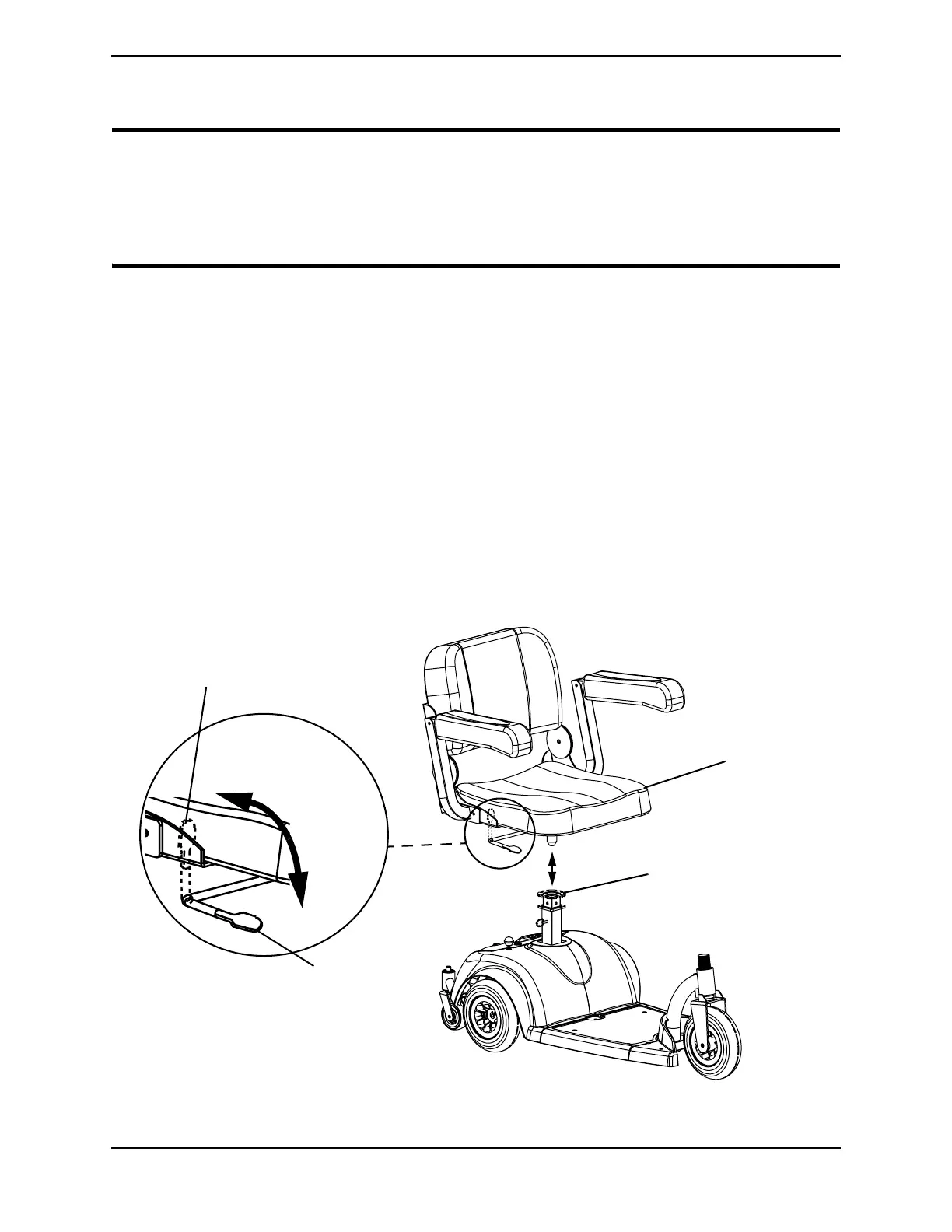

FIGURE 7.3 - Removing/Installing the Deluxe Seat
Seat Lock Lever in
Unlocked Position
Seat Lock Lever
in Locked
Seat
Assembly
Seat Post
NOTE: Tiller not shown for clarity.
