SECTION 7—SEAT AND ARMS
Zoom
220 30 Part No. 1125053
Folding/Unfolding the Back - Padded Seat Only
WARNING
Before use, ensure that the seat back is in the locked position. Otherwise bodily
injury and/or damage to the scooter may occur.
NOTE: For this procedure, refer to FIGURE 7.2.
Folding
1. Pull up the back to unlock it from the back mounting tube.
2. Fold down the back.
Unfolding
1. Unfold the back.
2. Push down the back into the back mounting tube until the back locks into position.
NOTE: An audible “click” is heard when the back is pushed into the locked position.

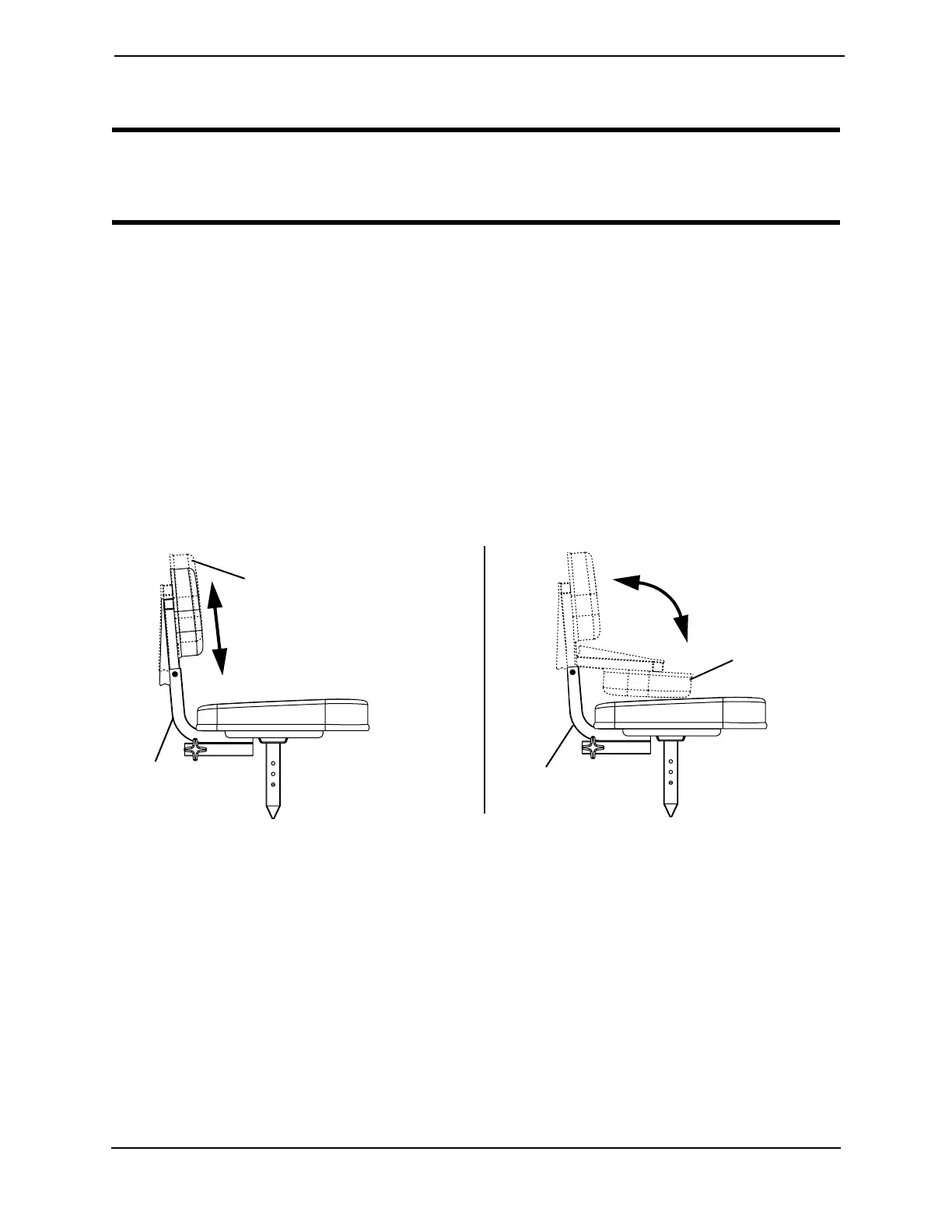

FIGURE 7.2 Folding/Unfolding the Back - Padded Seat Only
Seat Back
Pulled Up
Seat Back
Folded Down
Back Mounting
Tube
Back Mounting
Tube
