SECTION 10—BATTERIES
Part No. 1125053 41 Zoom
220
Zoom 220 powered scooter is designed to
use two (2) 12 volt, 12 Amp-hour (12AH)
batteries.
NOTE: Recommended battery type is spill
proof and requires no maintenance except
routine charging.
NOTE: Charge batteries daily. DO NOT allow
batteries to completely discharge.
NOTE: Invacare recommends that both
batteries be replaced if one (1) battery is
defective.

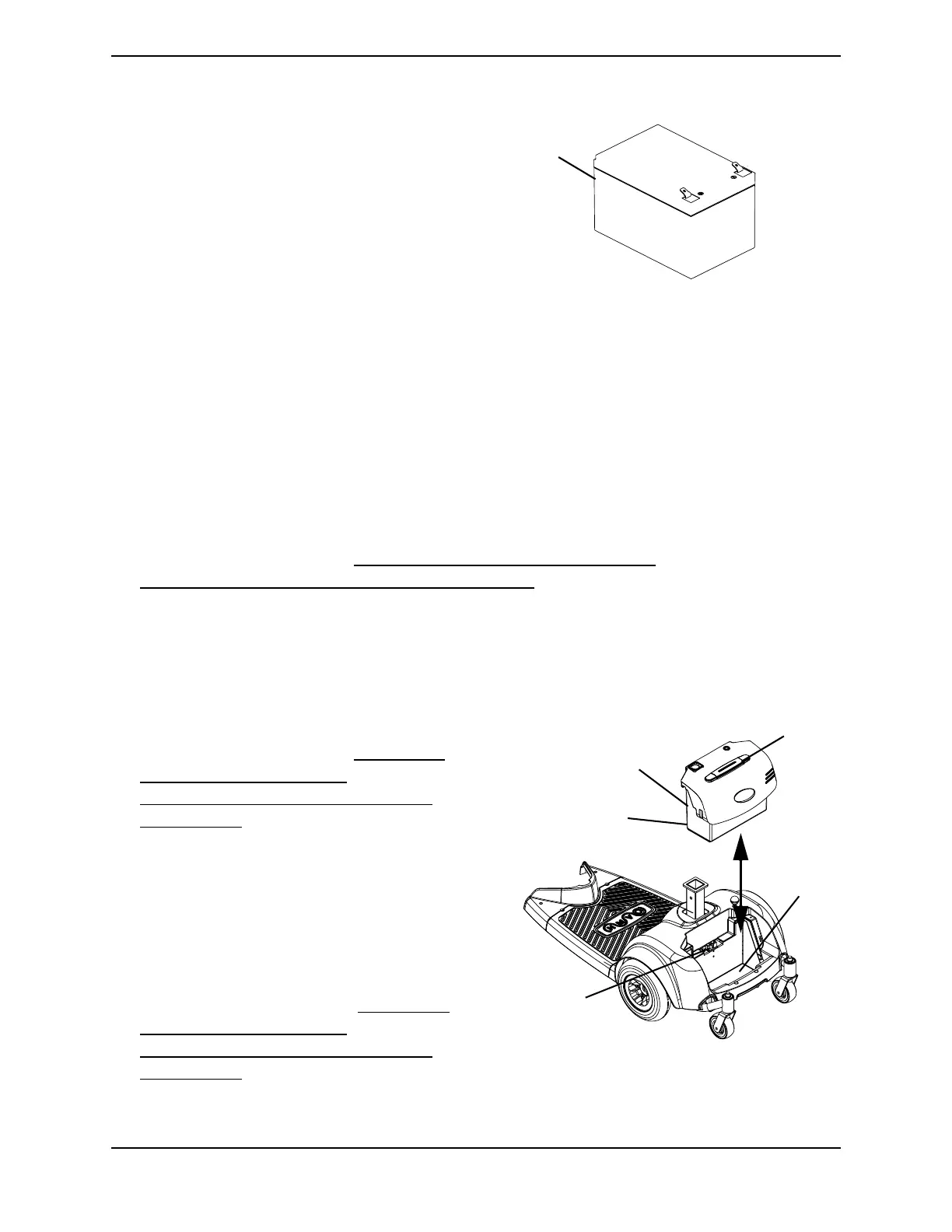

FIGURE 10.1 Recommended Battery Type
Removing/Installing the Battery Box
NOTE: For this procedure, refer to FIGURE 10.2.
Removing
1. Turn power off and remove the key from the ignition.
2. Remove the seat. Refer to Removing/Installing the Deluxe Seat on page 31 or
Removing/Installing/Adjusting the Padded Seat on page 29.
3. Hold the battery box handle and lift the battery box up and away from the scooter.
Installing
1. Turn power off and remove the key
from the ignition.
2. Remove the seat. Refer to Removing/
Installing the Deluxe Seat on page 31 or
Removing/Installing/Adjusting the
Padded Seat on page 29.
3. Holding the battery box handle,
carefully lower the battery box on to the
battery tray in the scooter.
4. Press down the battery box to engage
the connector on the battery box with
the connector on the scooter base.
5. Reinstall the seat. Refer to Removing/
Installing the Deluxe Seat on page 31 or
Removing/Installing/Adjusting the
Padded Seat on page 29.
FIGURE 10.2 Removing/Installing the
Battery Box
12 Volt, 12 Amp-
Hour (12 AH)
Battery
Battery Box
Battery Box
Handle
Battery
Tray
Connector on Battery
Box
(Hidden from View)
Connector
on Base
To Next Page
