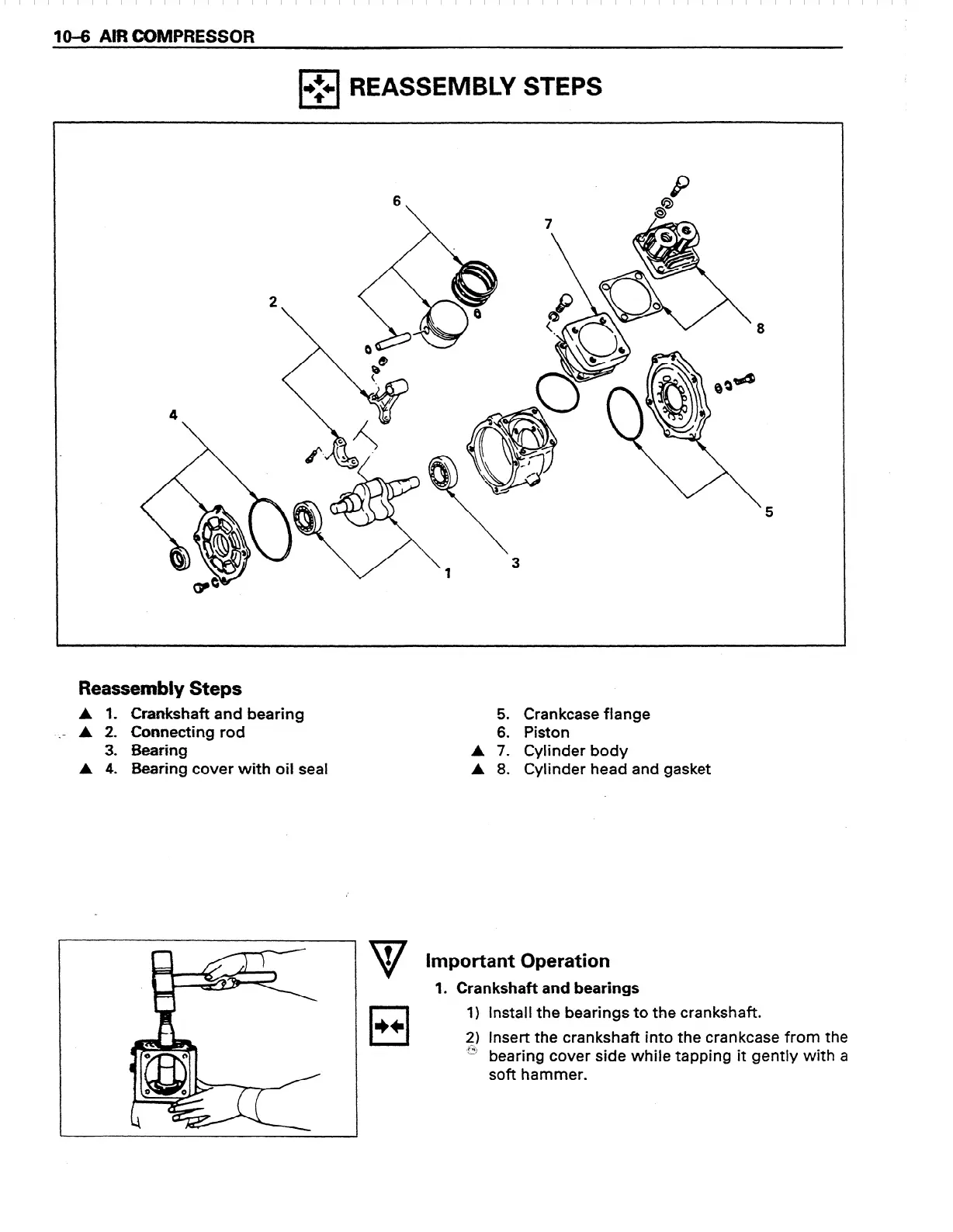

IO-6 AIR COMPRESSOR

cl

$+ REASSEMBLY STEPS

Reassembly Steps

A

1.

Crankshaft and bearing

. A 2. Connecting rod

. .C

3. Bearing

A

4.

Bearing cover with oil seal

5. Crankcase flange

6. Piston

A

7.

Cylinder body

A 8. Cylinder

head

and gasket

V

t

Important

Operation

1.

Crankshaft

and bearings

1) Install the

bearings to

the crankshaft.

2)

insert

the crankshaft into the

crankcase from the

” bearing cover

side

while tapping it gently

with a

soft hammer.
