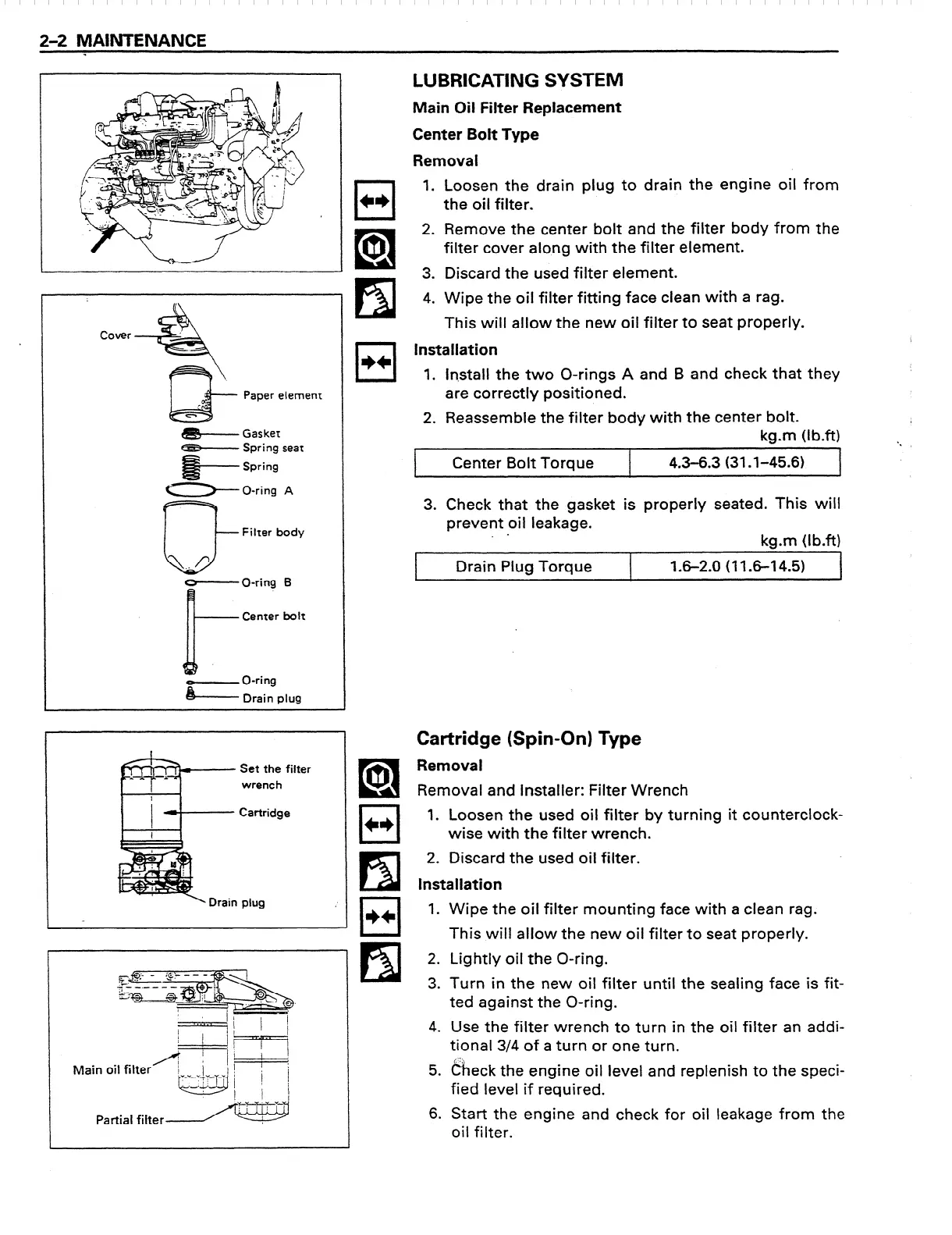

2-2 MAINTENANCE
w
Paper element
r
m- Gasket
W Spring seat
@-Spring
c>- O-ring A
r====h
Filter body
c)-------- O-ring 6
Center bolt
I-
O-ring
lb-----
Drain plug
- Cartridge
Drain plug
Partial filter
LUBRICATING SYSTEM
Main Oil Filter Replacement
Center Bolt Type
Removal
0
c*
1. Loosen the drain plug to drain the engine oil from
the oil filter.
Q
0
2. Remove the center bolt and the filter body from the
filter cover along with the filter element.
ELI
3. Discard the used filter element.
4. Wipe the oil filter fitting face clean with a rag.
This will allow the new oil filter to seat properly.
cl
1
*c
Installation
1. ln.stall the two O-rings A and 6 and check that they
are correctly positioned.
2. Reassemble the filter body with the center bolt.
i
kg.m (lb.ft)
‘* /
.
Center Bolt Torque
4.3-6.3 (31 .l-45.6).
3. Check that the gasket is properly seated. This will
prevent oil leakage.
. -
kg.m (Ib.ft)
a
Drain Plug Torque
1 S2.0 (11 Sl4.5)
I
Cartridge (Spin-On) Type
Removal
Removal and Installer: Filter Wrench
I I
*II)
1. Loosen the used oil filter by turning it counterclock-
wise with the filter wrench.
I
1
q
2. Discard the used oil filter.
Installation
III
*c
1. Wipe the oil filter mounting face with a clean rag.
This will allow the new oil filter to seat properly.
. 1
2. Lightly oil the O-ring.
3. Turn in the new oil filter until the sealing face is fit-
ted against the O-ring.
4. Use the filter wrench to turn in the oil filter an addi-
tional 3/4 of a turn or one turn.
5. beck the engine oil level and replenish to the speci-
fied level if required.
6. Start the engine and check for oil leakage from the
oil fi Iter.
