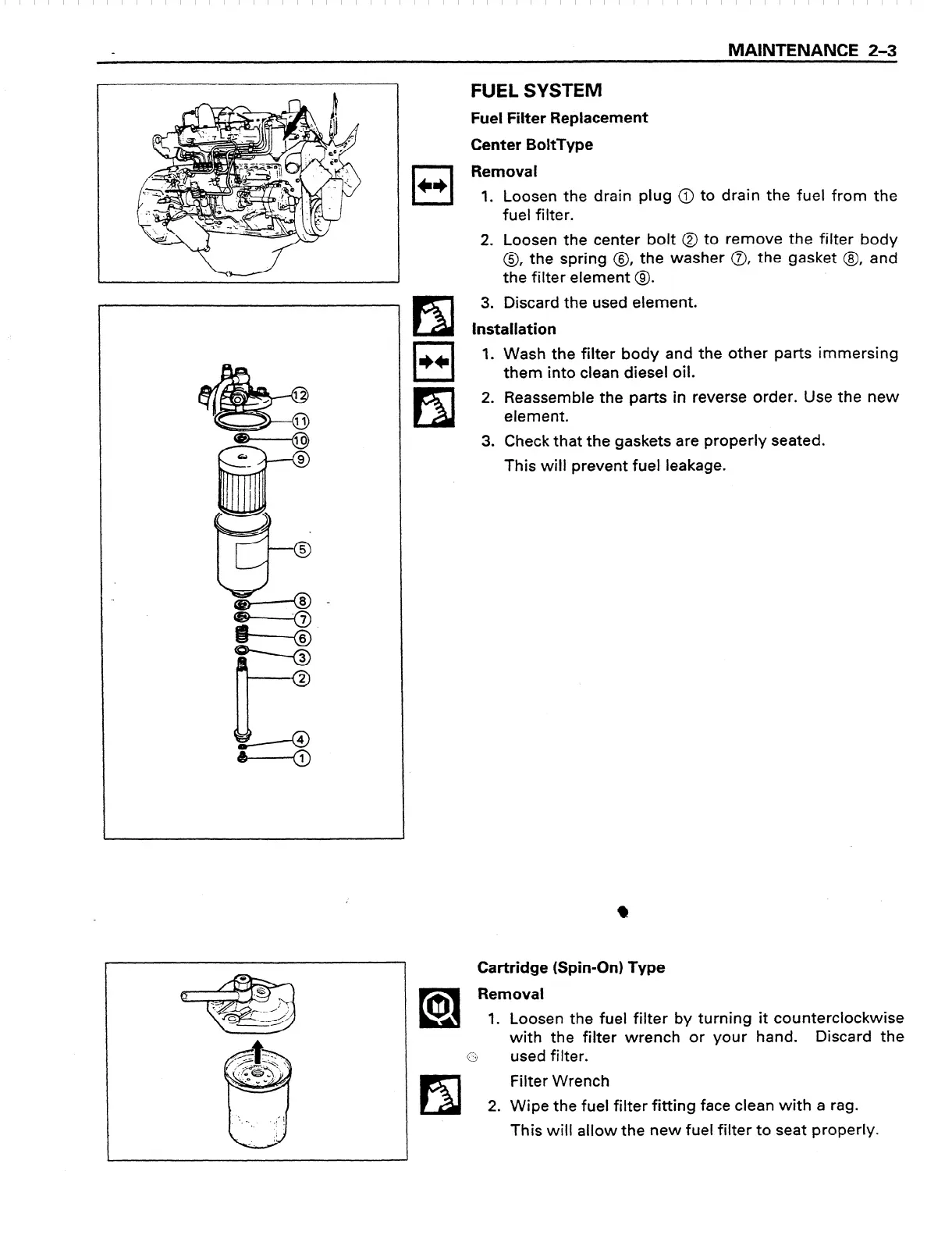

MAINTENANCE 2-3
FUEL SYSTEM
Fuel Filter Replacement
Center BoltType
cl
Removal
CIS
1. Loosen the drain plug @ to drain the fuel from the
fuel filter.
2. Loosen the center bolt @ to remove the filter body
0, the spring 8, the washer 0, the gasket @, and
the filter element @.
5l
3. Discard the used element.
Installation
0
*c
‘I. Wash the filter body and the other parts immersing
them into clean diesel oil.
5l
2. Reassemble the parts in reverse order. Use the new
element.
3. Check that the gaskets are properly seated.
This will prevent fuel leakage.
1. Loosen the fuel filter by turning it counterclockwise
with the filter wrench or your hand. Discard the
0
used filter.
Filter Wrench
2. Wipe the fuel filter fitting face clean with a rag.
This will allow the new fuel filter to seat properly.
