IT6700 User manual
User Manual
7

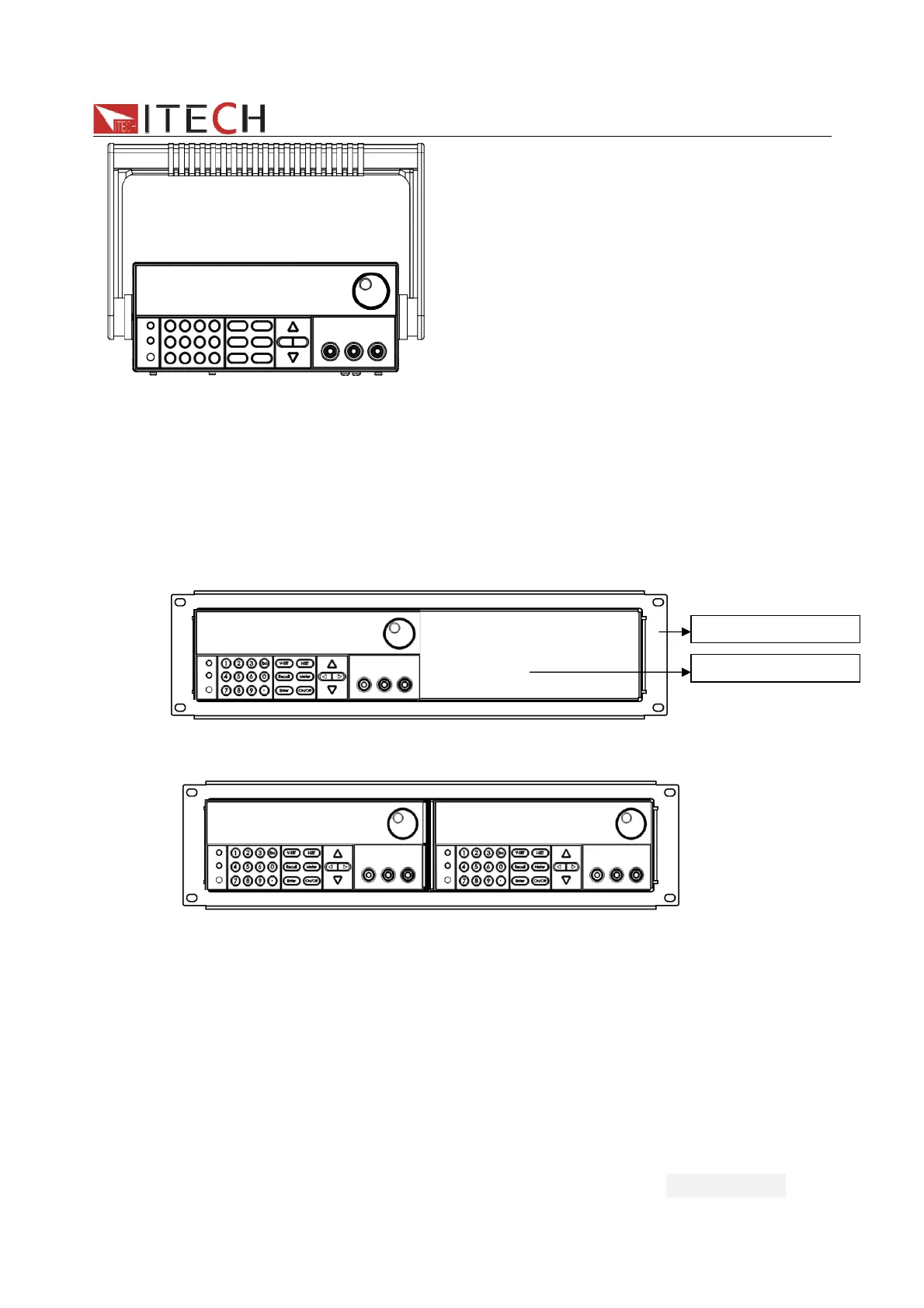

Install method of IT-E151
Remove the carrying handle and the two pale green stickers before rack-mounting the
instrument on standard 19’’ IT-E151. Mounting specification is as following:
Fix a plastic fitting screwed to the original handle installation position, then fix accessories 1
and mount accessories 2 to the following icon position. The method to fix two power
supplies on rack is screw two plastic fittings in original handle installation position, mount
accessories 1 after that.
Drawing1.1 To rack mount a single instrument, order rack mount kit IT-E151
Drawing1.2 To rack mount two instruments side-by-side, order rack mount kit IT-E151, you
needn’t to use the front cover panel.
1.3 The size of the power supply
1.SizeofIT6723/IT6724/IT6723B/IT6724B/IT6723C/IT6724C/IT6723H/IT6724
H/IT6723G/IT6724G:
214.5mmW×88.2mmH×445mmD
*refer to the
Dimensions below:
ccessories 1
ccessories 2
