Jacobsen ECLIPSE 360 User Manual

B
en-22
Safety, Operation, & Maintenance Manual
CONTROLS
Lithium
OPERATOR CONTROLS
Forward Traction Pedal (K)
Press forward traction pedal down to move the mower forward. The further the pedal is pressed, the faster the mower will
travel.
Reverse Traction Pedal (L)
Press reverse traction pedal down to move the mower in reverse. The further the pedal is pressed, the faster the mower
will travel.
Steering Wheel Tilt Lever (M)
Push lever down to release steering column. Tilt column up or down to position desired. Release lever to lock steering
column in place.
Seat Adjustment Lever (N)
Pull lever up and slide seat forward or backward. Release lever to lock seat in place.

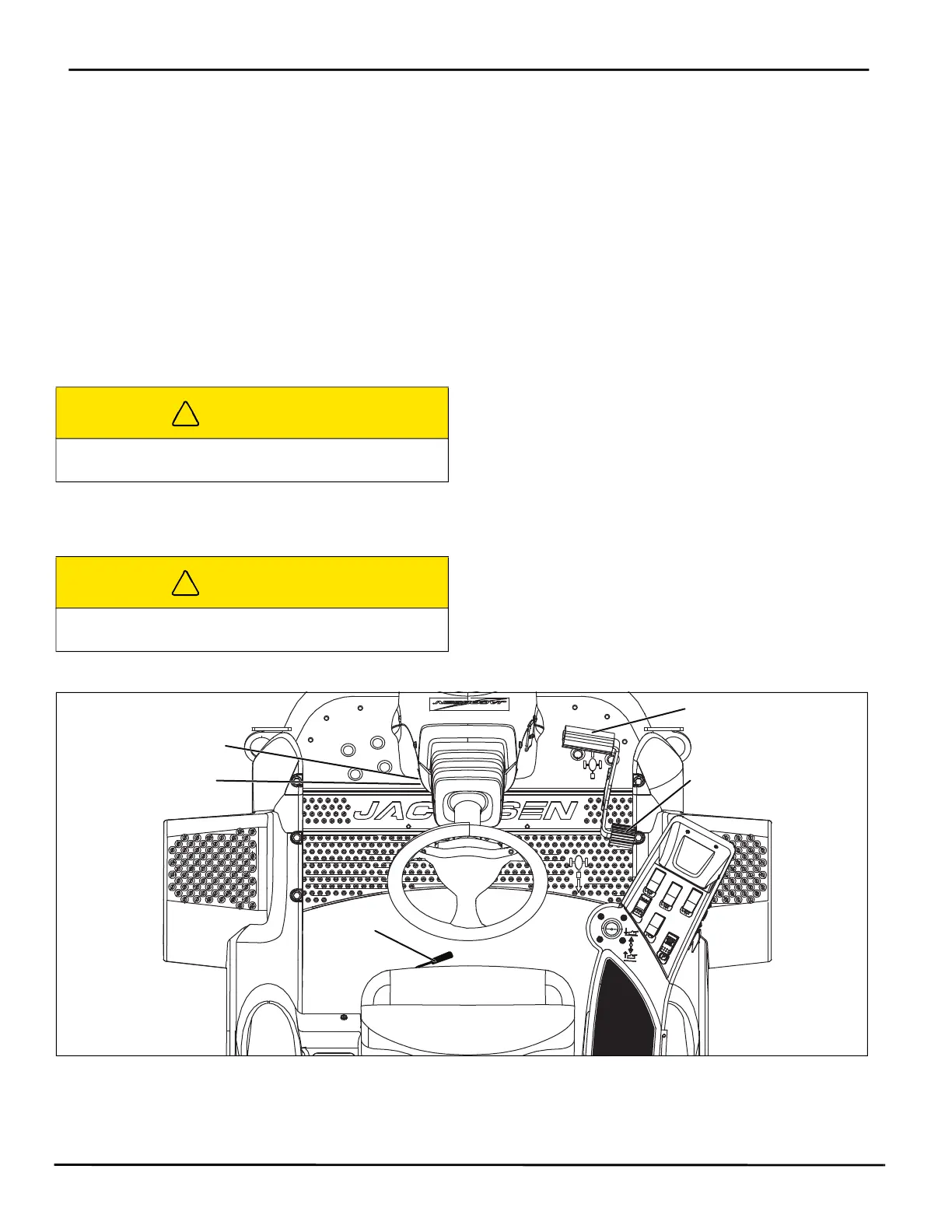

Fig. 2
CAUTION
Never adjust tilt steering while mower is moving.
Stop unit before adjusting.
CAUTION
Never adjust seat while mower is moving. Stop unit
before adjusting.
!
!
K
L
M
N
P
